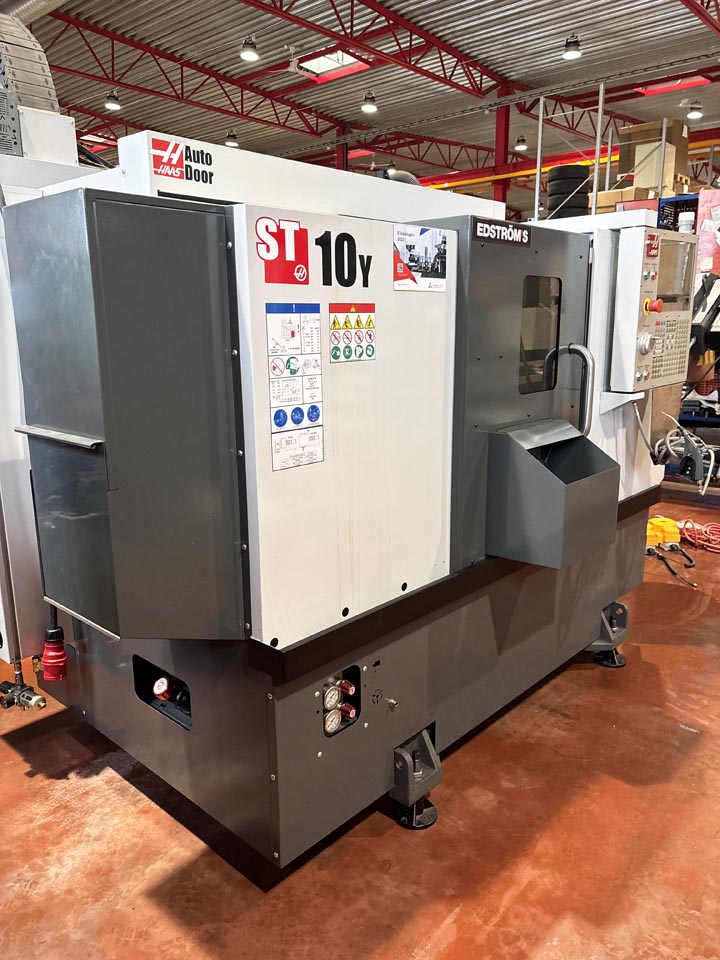

CNC-lathe Haas ST10Y. Year: 2020.

Without VAT:

Contact us

In Stock

Article Code 20D-00680

Maker	Haas	Weight	3584 kg
Model	ST10Y	Size
Ser. No		Condition	8/10
Year	2020	Delivery Code

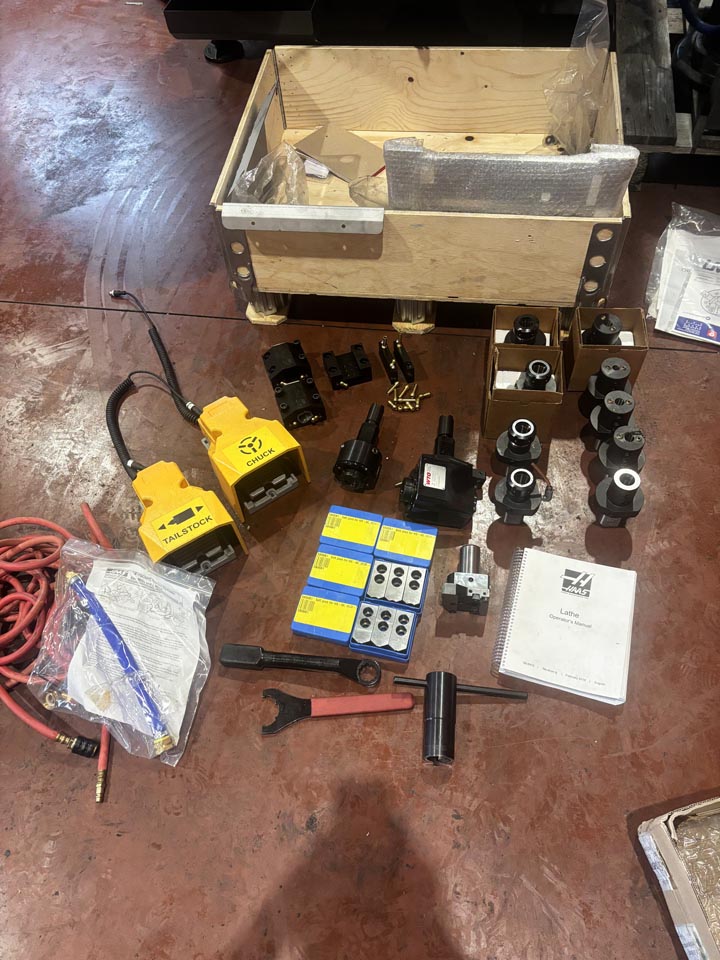

Tool accessories

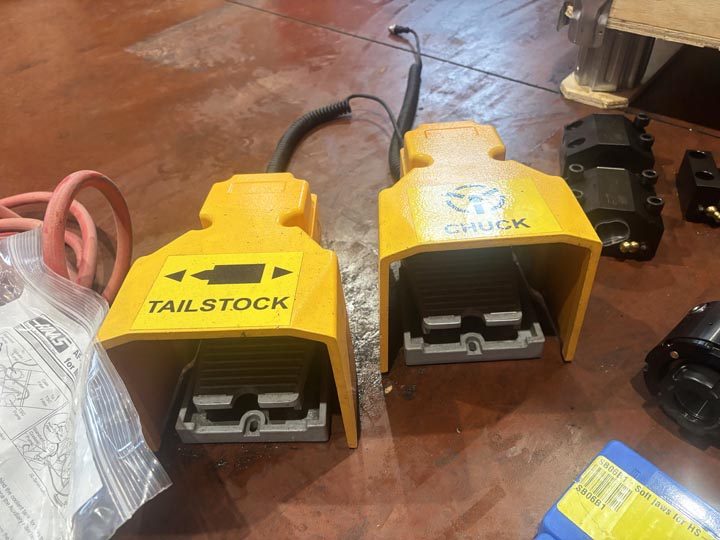

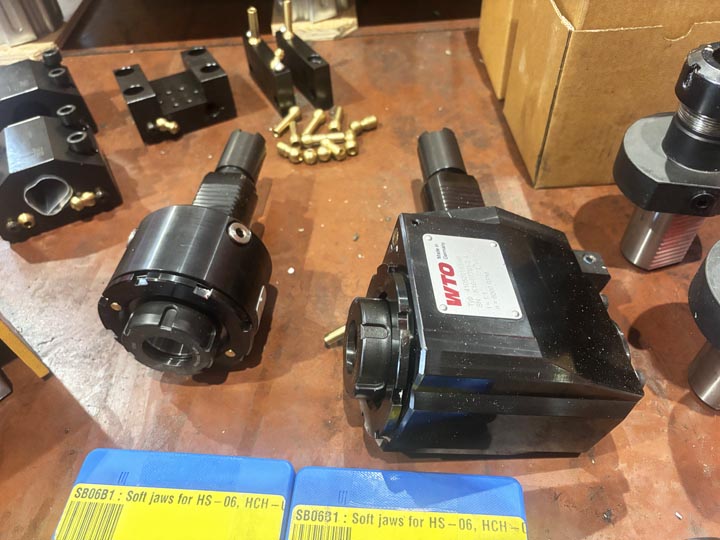

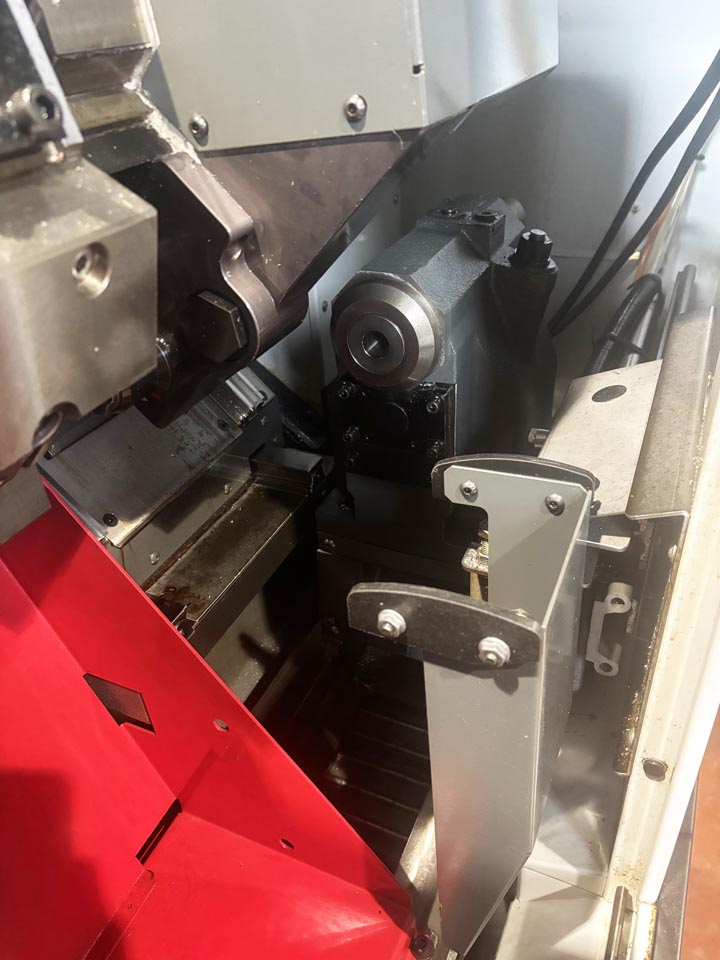

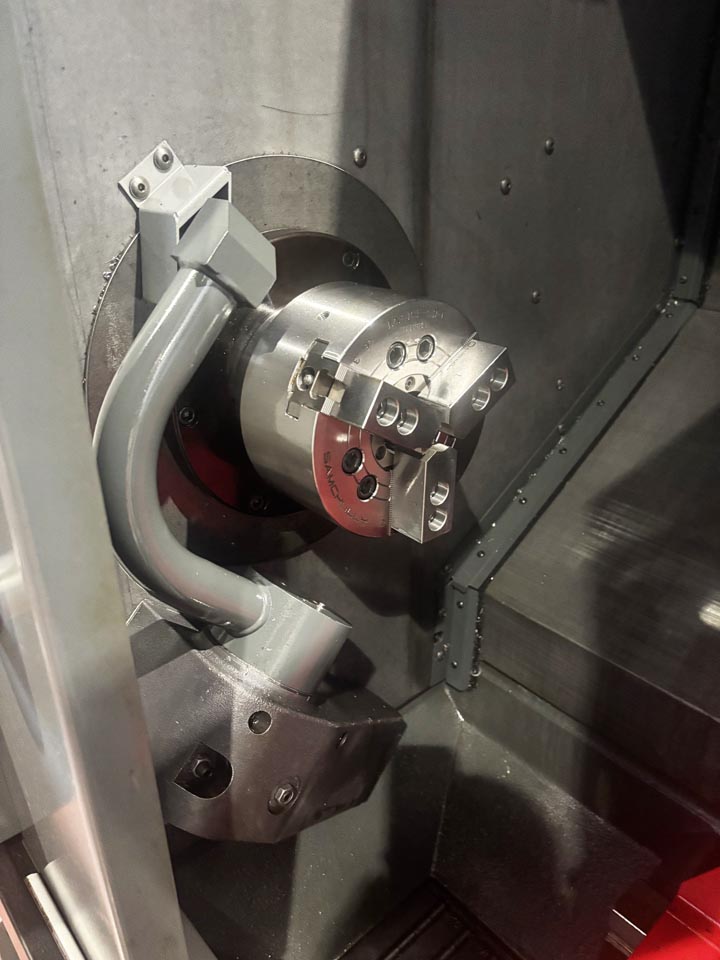

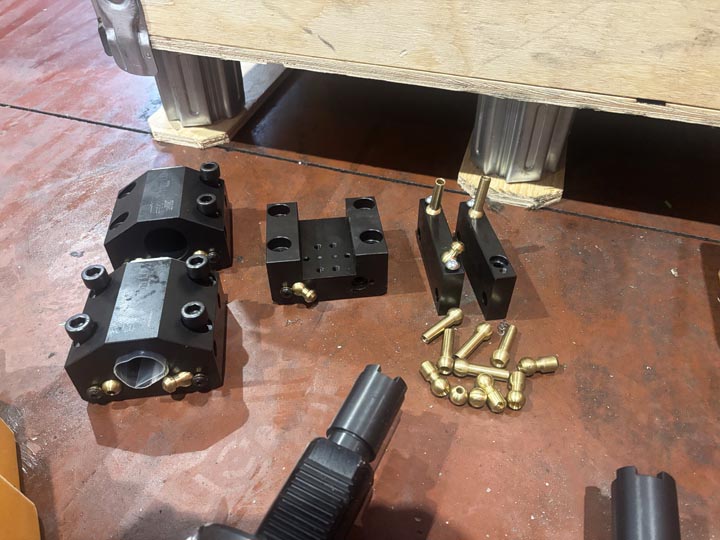

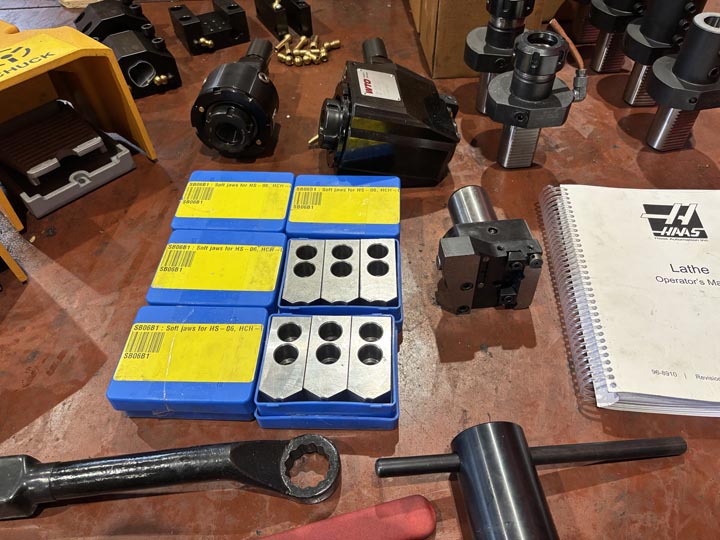

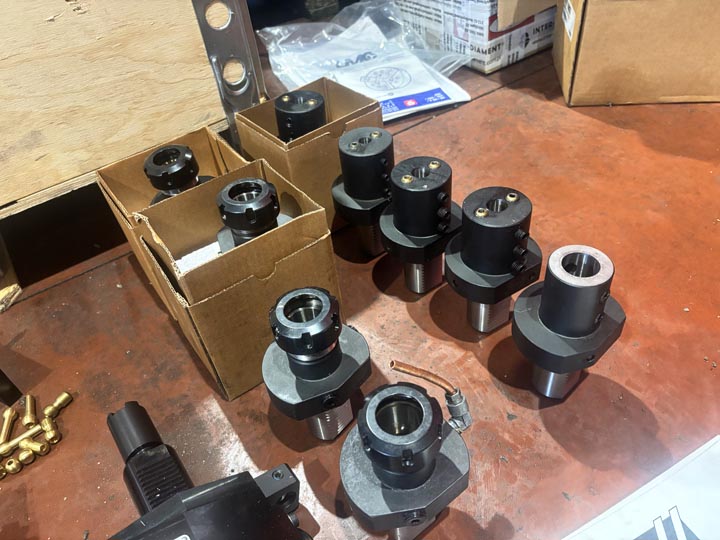

Driven tools chip conveyor tailstock with hydraulic quill hydraulic 3-jaw chuck foot pedal for chuck/tailstock tool preset system detail catcher automatic door high pressure system with additional filter for coolant ground jaws 6 set soft jaws 1 pcs driven tool (straight) 1 pcs driven tool (angled) 6 pcs collet chucks ER40 5 pcs weldon holders Ø12-16-16-16-25 mm holder for cut-off tool holder for bar Ø32 mm etc.

Specification

Max swing diameter: 419 mm

Max cutting length: 406 mm

Cross travel (X): 200 mm

Y-axis travel: +/-51 mm

Length travel (Z): 406 mm

Rapid feed X/Y: 12 m/min

Rapid feed Z: 30,5 m/min

Spindle nose: A2-5

Spindle speed: 6000 rpm

Spindle bore: 58,7 mm

Positioning C-axis +/-: 0,02°

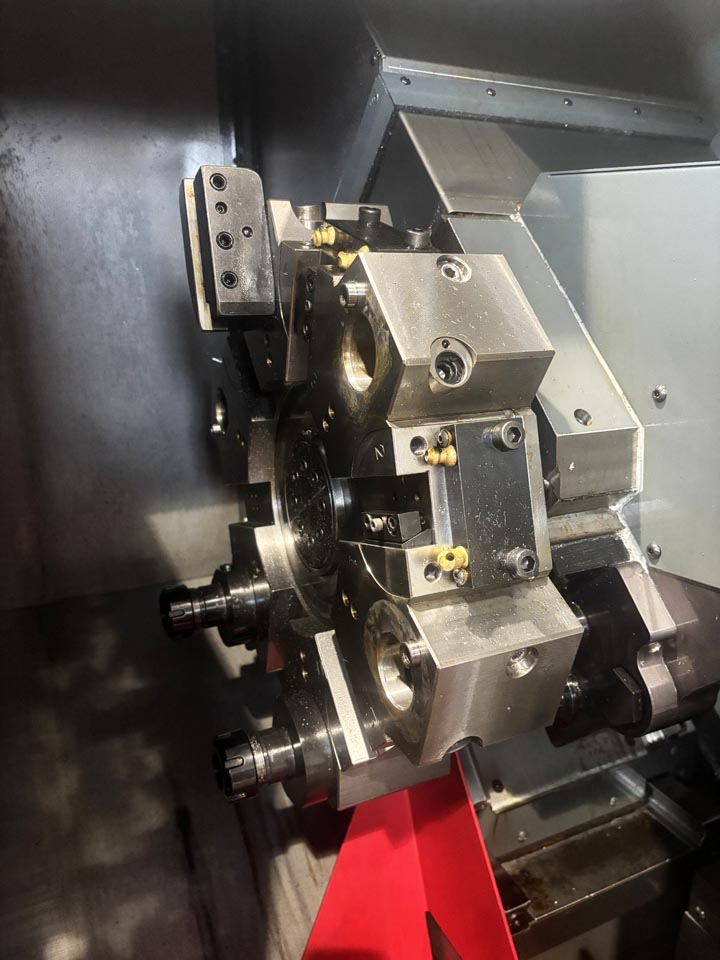

Turret tool capacity: 12 pcs

Live tooling, max spindle speed: 6000 rpm

Manual tailstock with hydraulic quill: YES

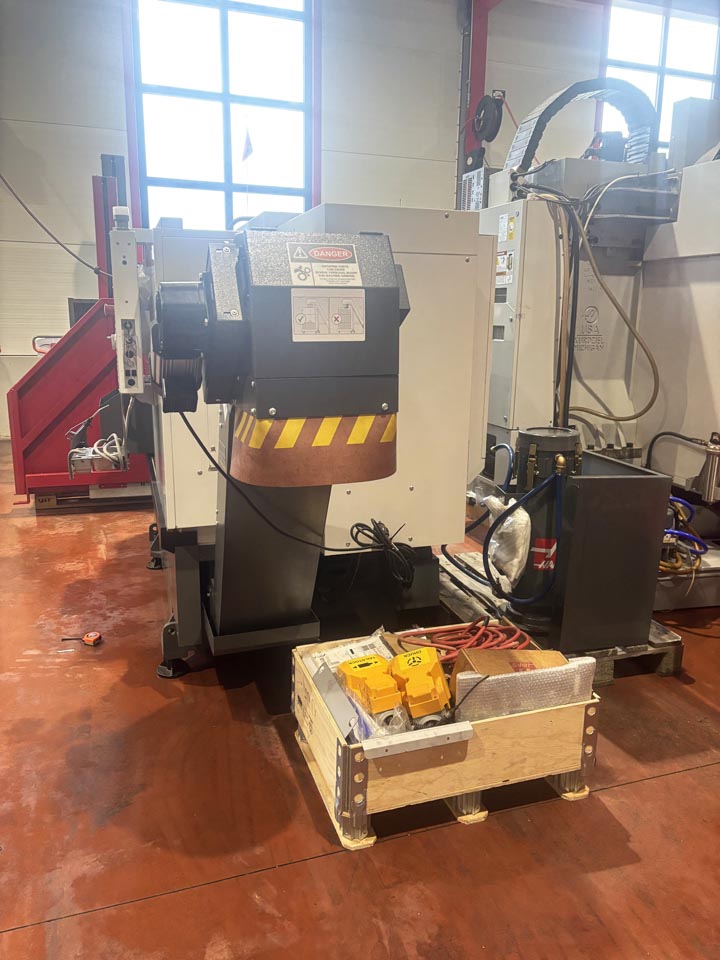

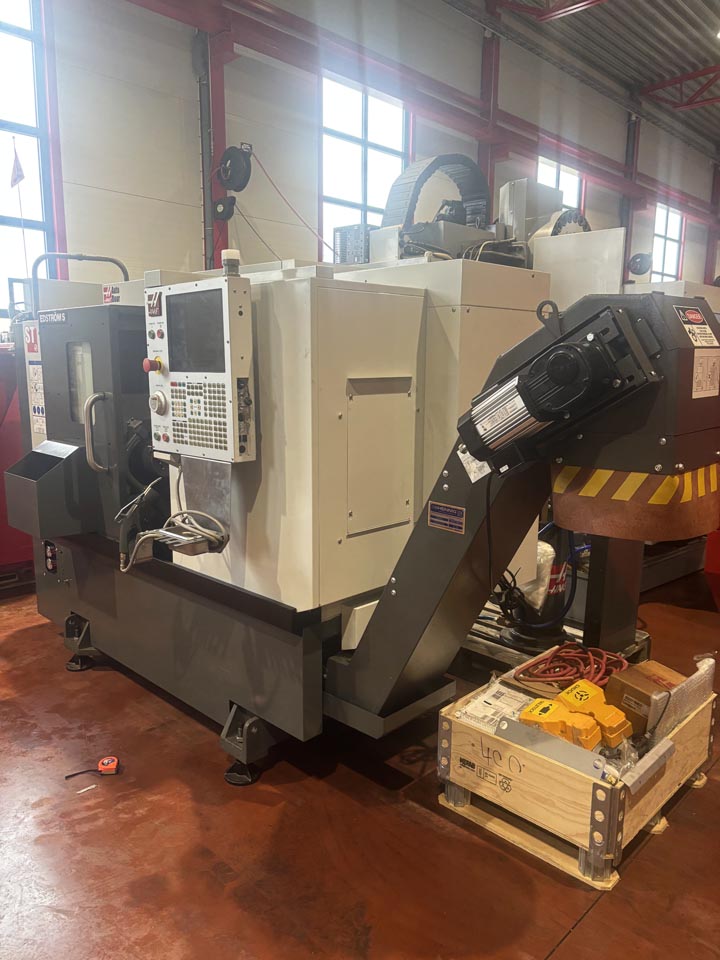

Chip conveyor: YES

Hight pressure coolant system: YES

Additional filter for coolant: YES

Automatic tool preset system : YES

Haas Connect (remote monitoring ): YES
