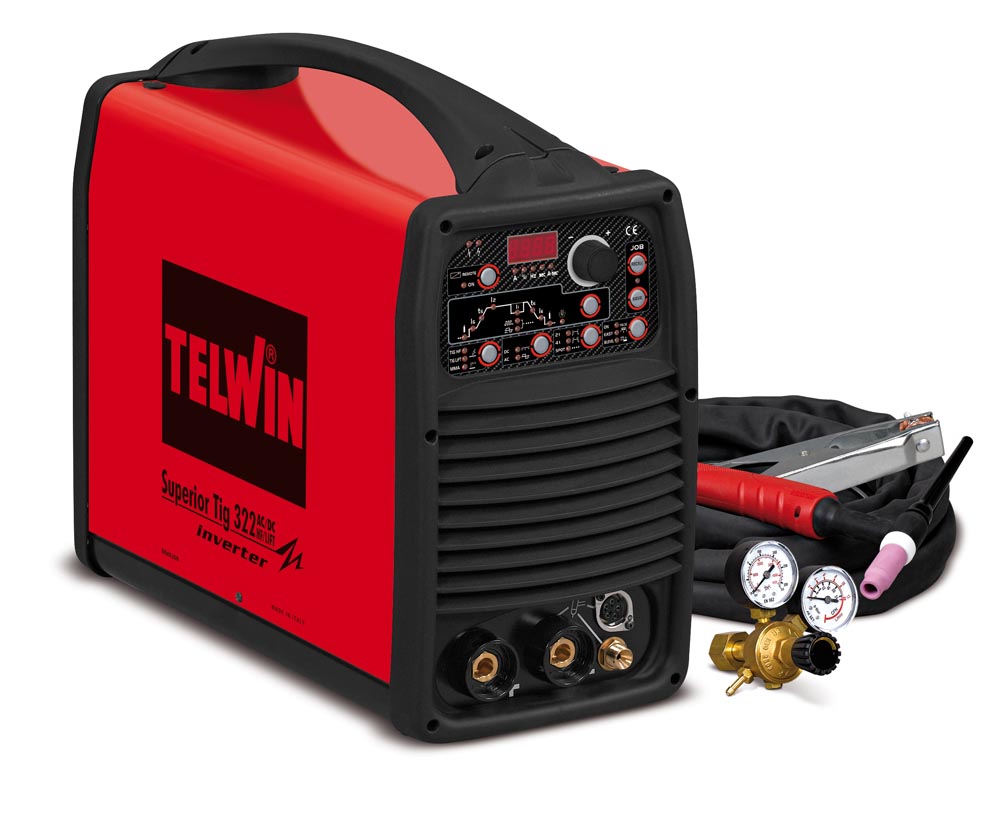

Telwin Superior TIG 322 AC/DC - HF/LIFT + ACC.

Without VAT:


In Stock

Article Code TW816130

Maker Telwin Weight 34 kg
Model Superior TIG 322 AC/DC - HD/LIFT Size 530 x 240 x 450 mm
Ser. No Condition 10/10
Year Delivery Code 999-202031

Tool accessories

TIG torche 4 M earth cable 3 M manometer etc.


Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
- Pulse and EASY pulse operation
- 9 customized welding programmes
- Anti-stick device
- Remote control and G.R.A. water cooling connector
- Storage on on-board E2PROM of the last 10 alarms
- Thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections

- TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency

- MMA regulations: arc force and hot start according to the type of electrode in use

Current range: 5-270 A

Max current: 270 A at 40%

Current at 60%: 215 A

Max no load voltage: 64 V

Absorbed current at 60% - MAX: 11-15 A

Absorbed power at 60% - MAX: 7-10 kW

Usable electrodes in DC: 1,6-5 mm

Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
