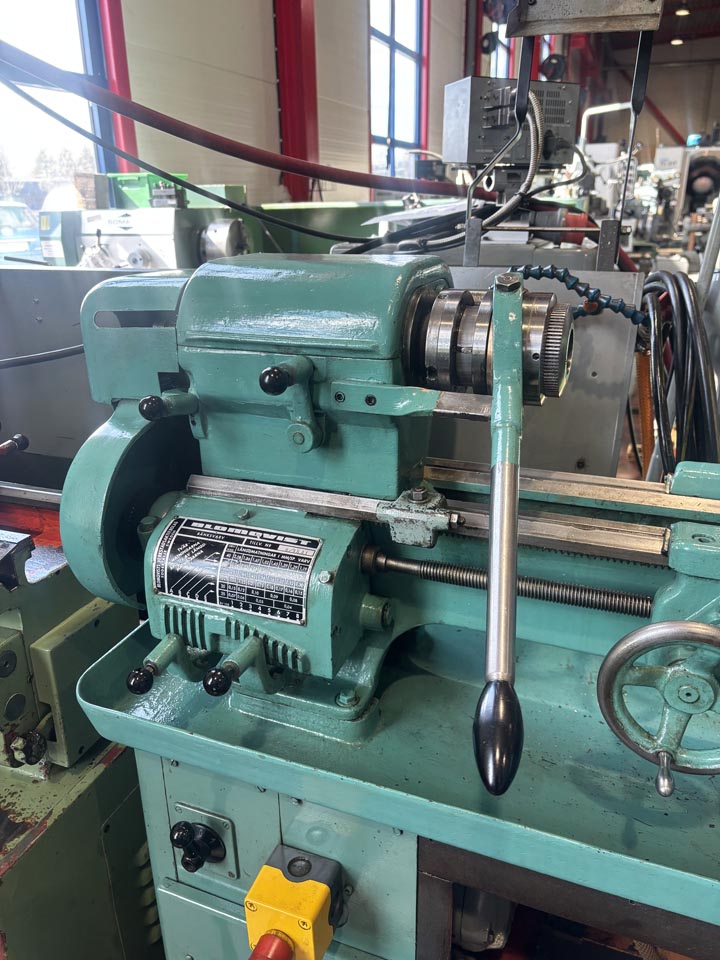

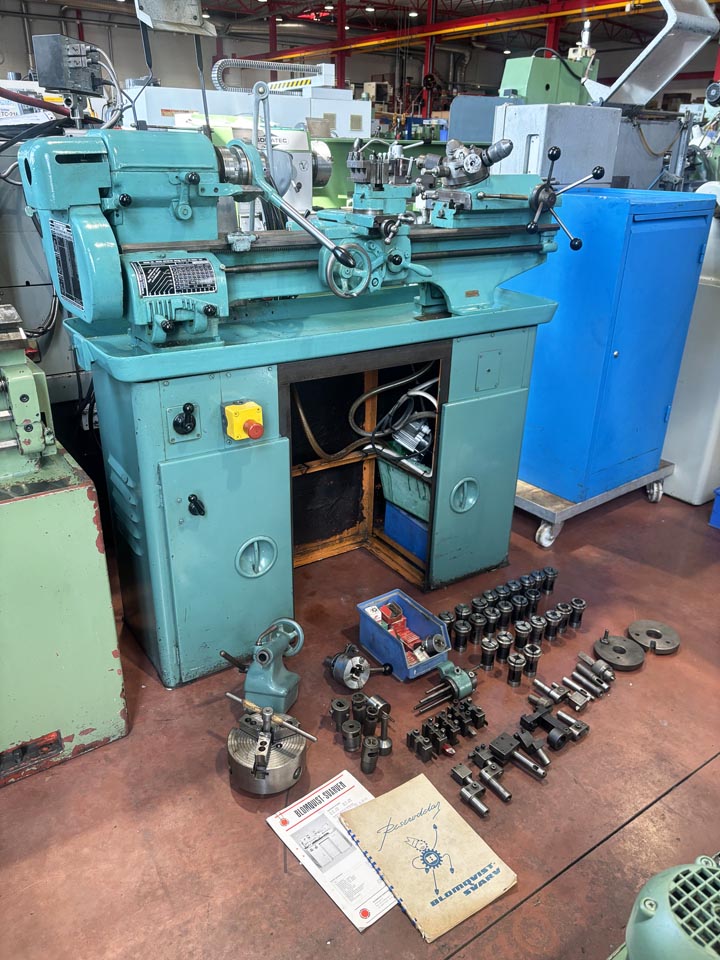

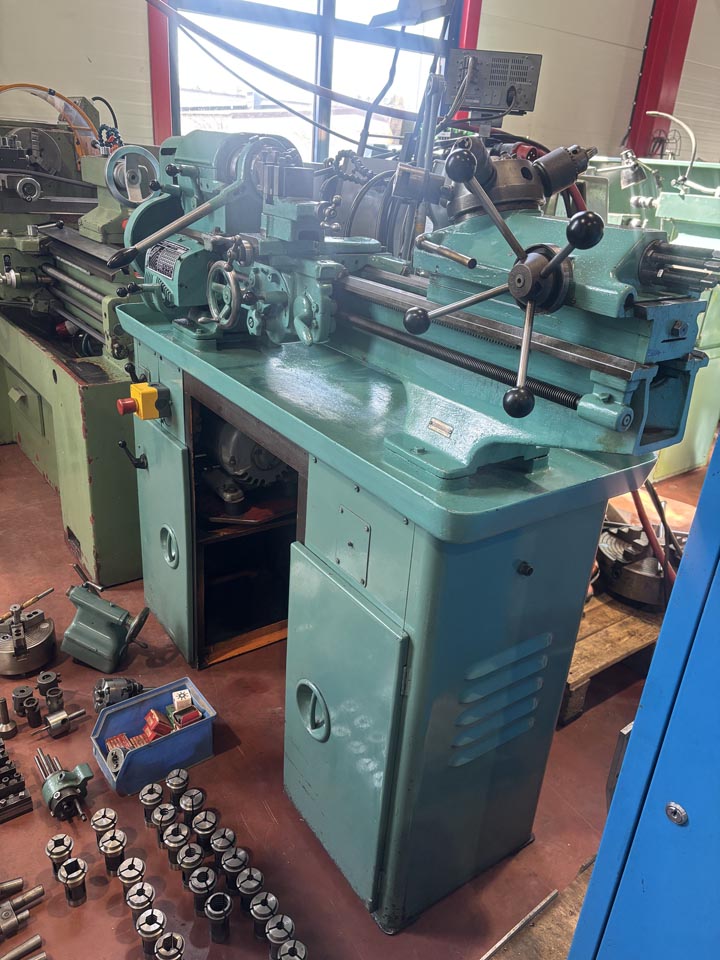

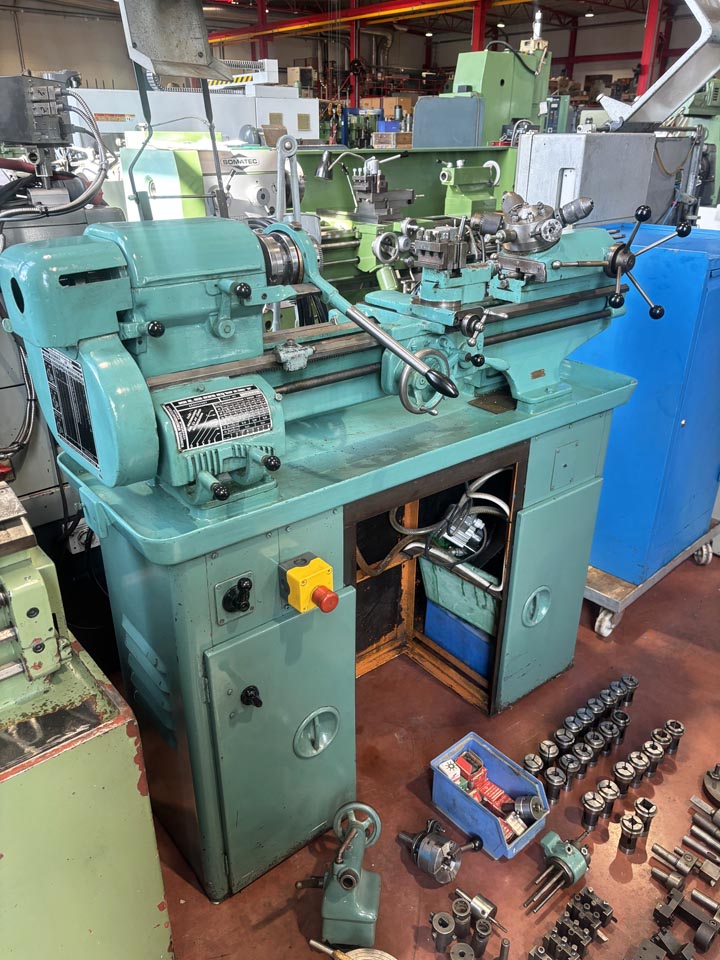

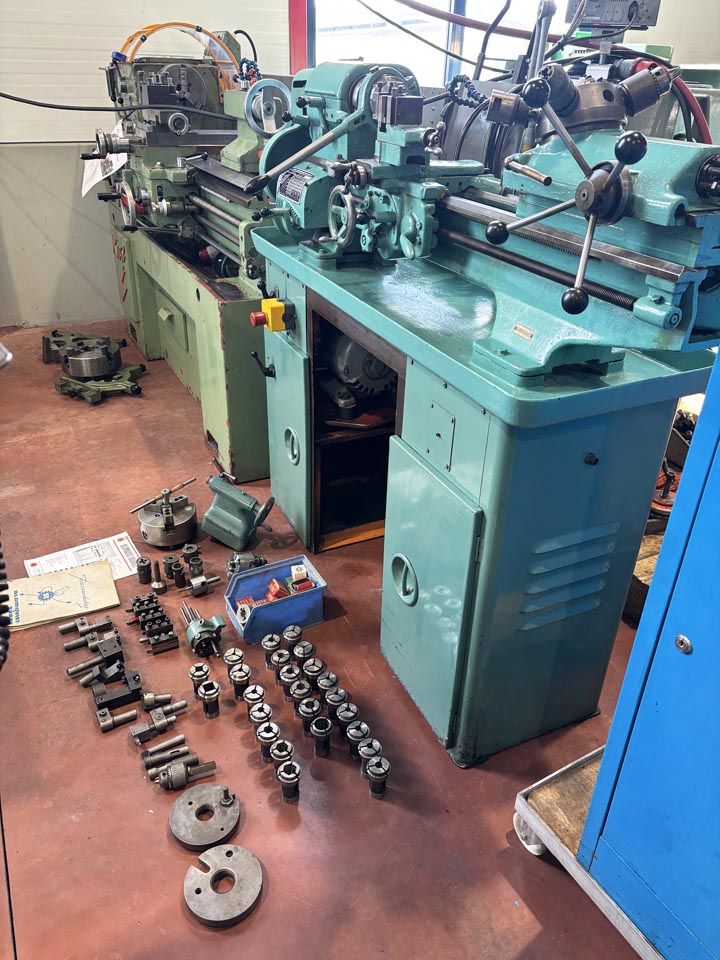

Lathe (turret) Blomqvist BS600-SL
Without VAT:
Contact us
In Stock
Article Code 20A-00715
Print| Maker | Blomqvist | Weight | ~400 kg |
| Model | BS600-SL | Size | 1,48 x 0,7 x 1,4 |
| Ser. No | 8/4531 | Condition | 5/10 |
| Year | Delivery Code |

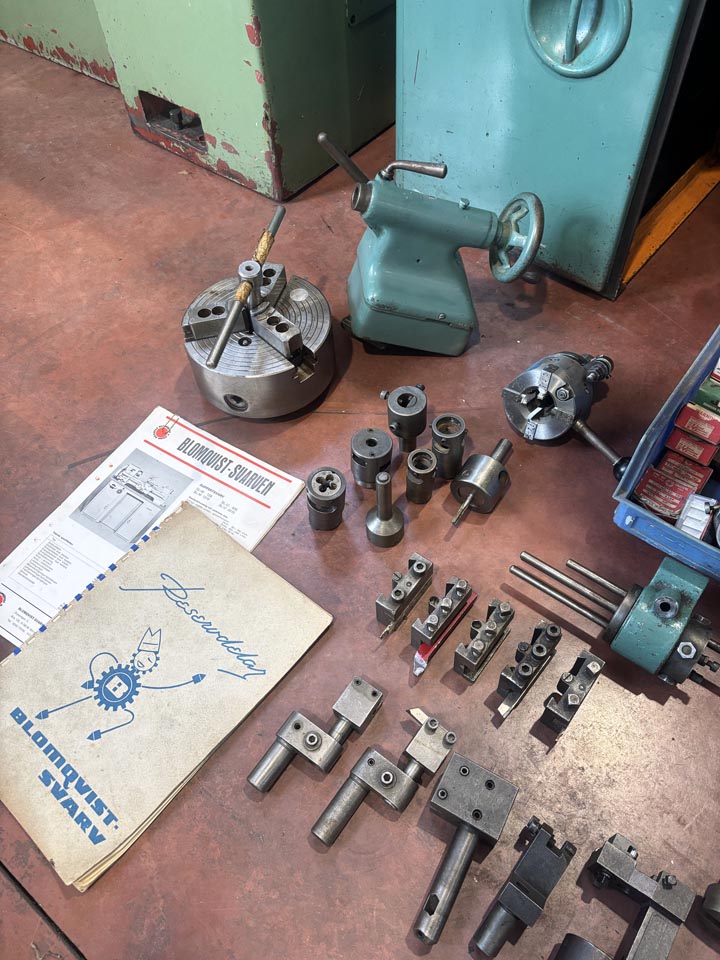

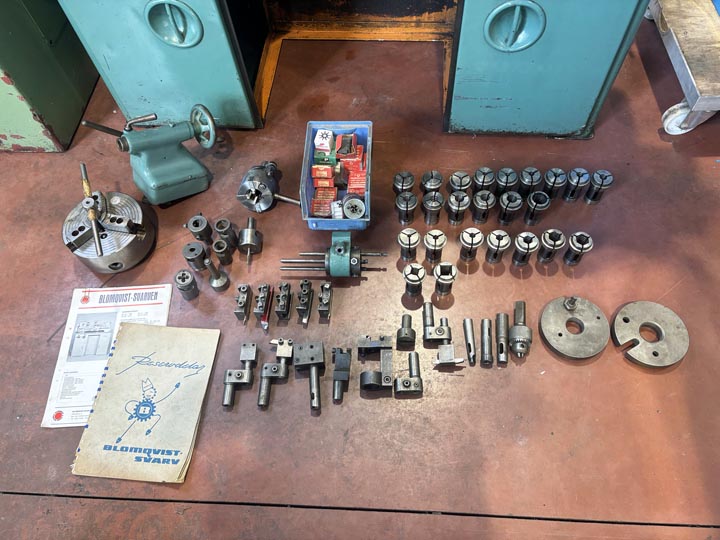

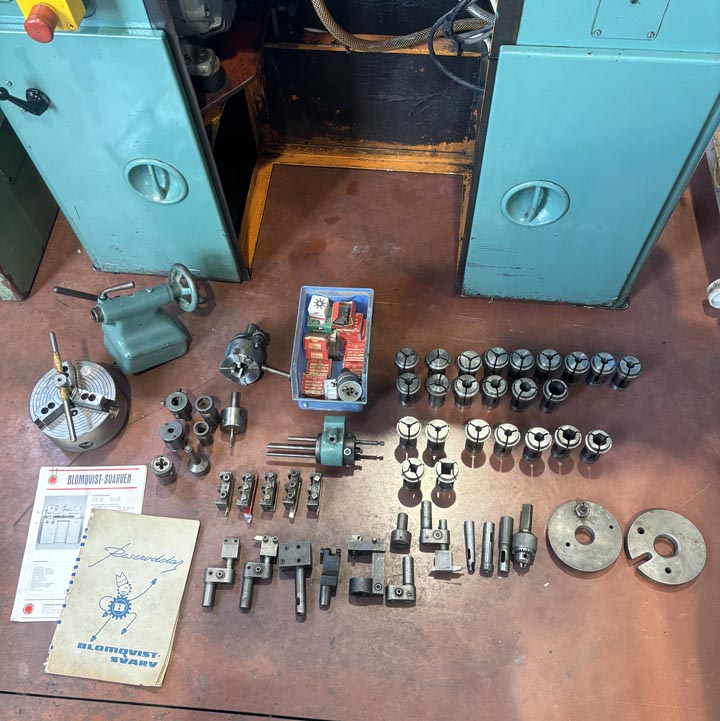

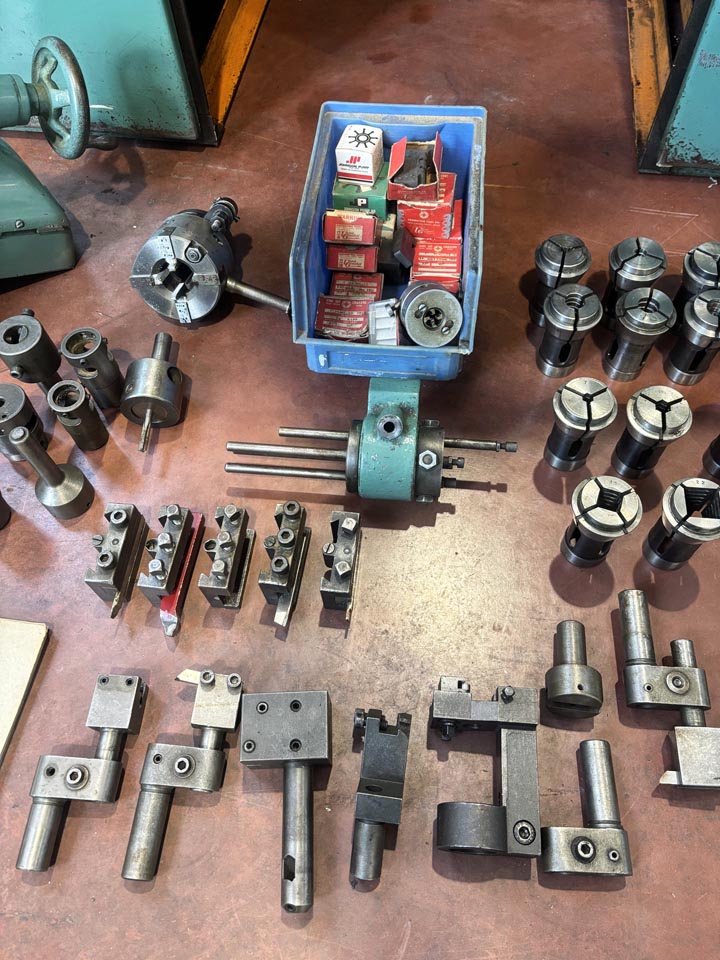

Tool accessories

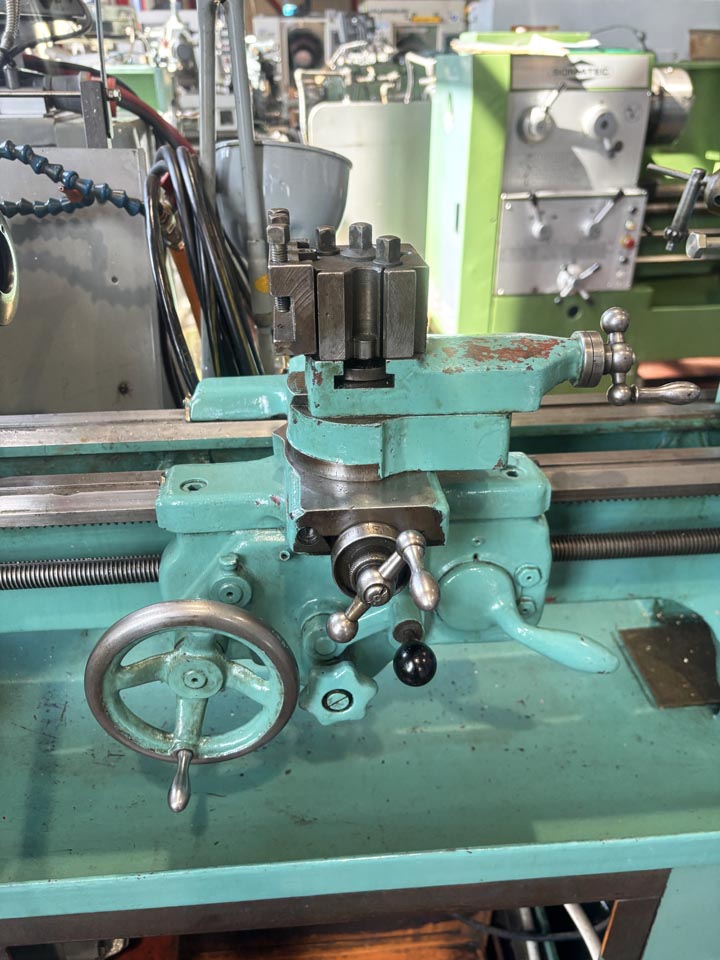

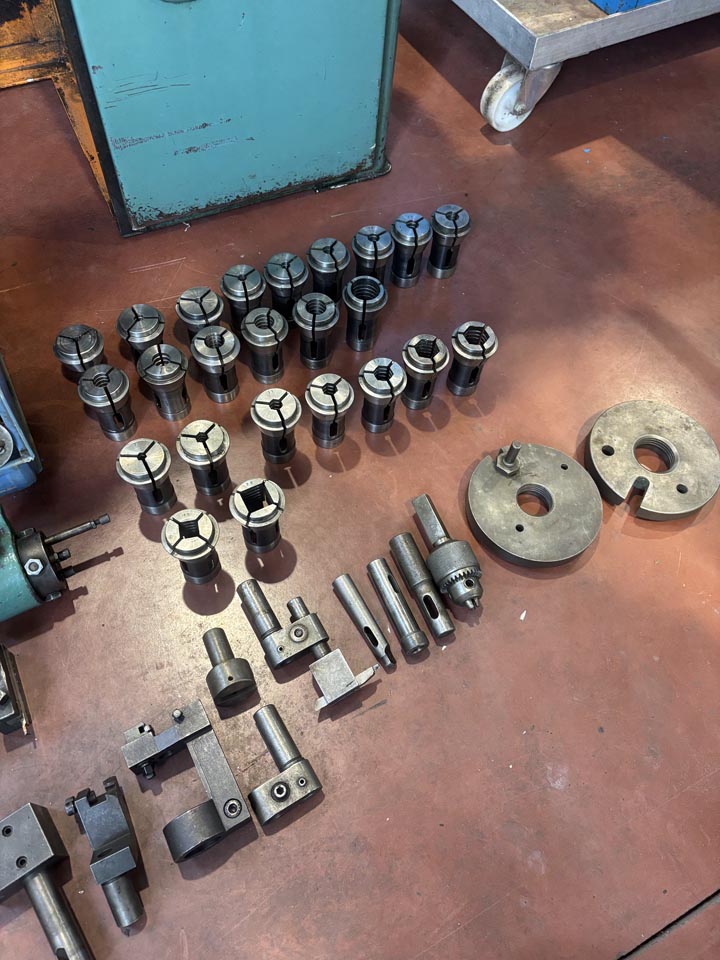

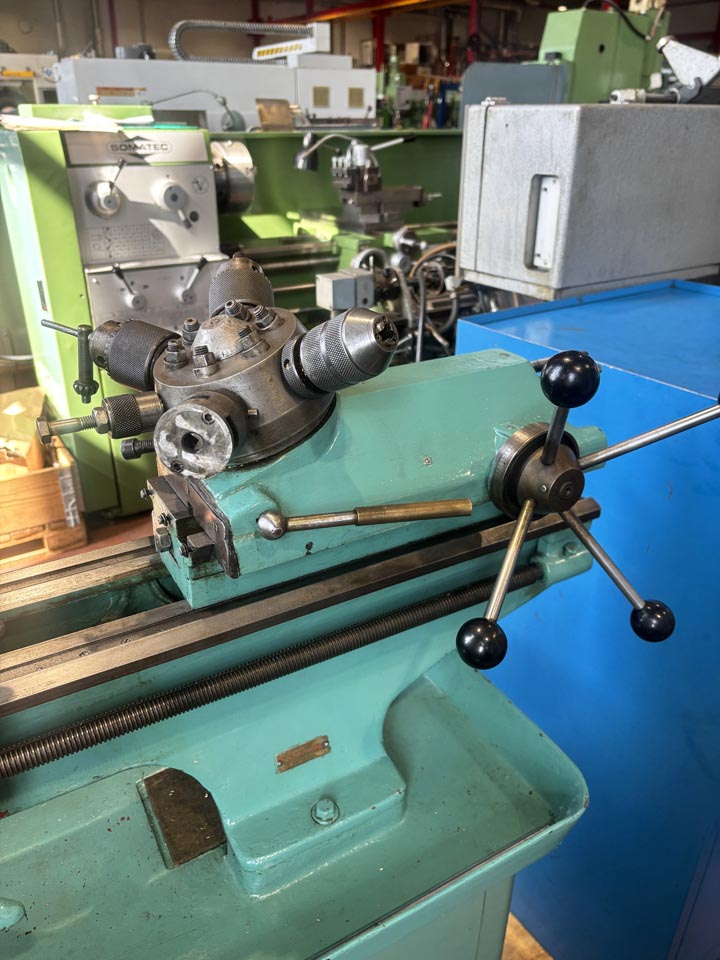

Tailstock turret with 6 pcs tool stations collet chuck with 15 pcs collets Ø5-6-7-8-8,5-11-12-13-14-15-16-18-19-20-30 mm 7 pcs collets hexagonal 7-10-11-13-17-22-23 mm 2 pcs collets square 15 and 22 mm tool post with 6 pcs tool holders 3-jaw chuck Ø170 mm turret stop 2 pcs carrier discs 2 pcs thread cutting heads including thread jaws tools for turret (drill chucks tap holders die holders ext./int. holders for cutting tools etc.) and manuals etc.Specification
Center height: 140 mm
Center distance: 600 mm
Spindle bore: 25 mm
Spindle speed: 60-2150 rpm
Autom. length feed: 0,04-2,08 mm/per spindle rotation
Autom. cross feed: 0,013-0,693 mm/per spindle rotation
Size WxDxH: ~1,48x0,7x1,4 m
Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
