Vertical milling center Hurco VM10i (2021) with 4th axis

Without VAT:

760000

In Stock

Article Code 15C-00850

Maker	Hurco	Weight	3170 kg
Model	VM10i	Size
Ser. No	HV1E3730	Condition	8/10
Year	2021	Delivery Code	999-500072

Tool accessories

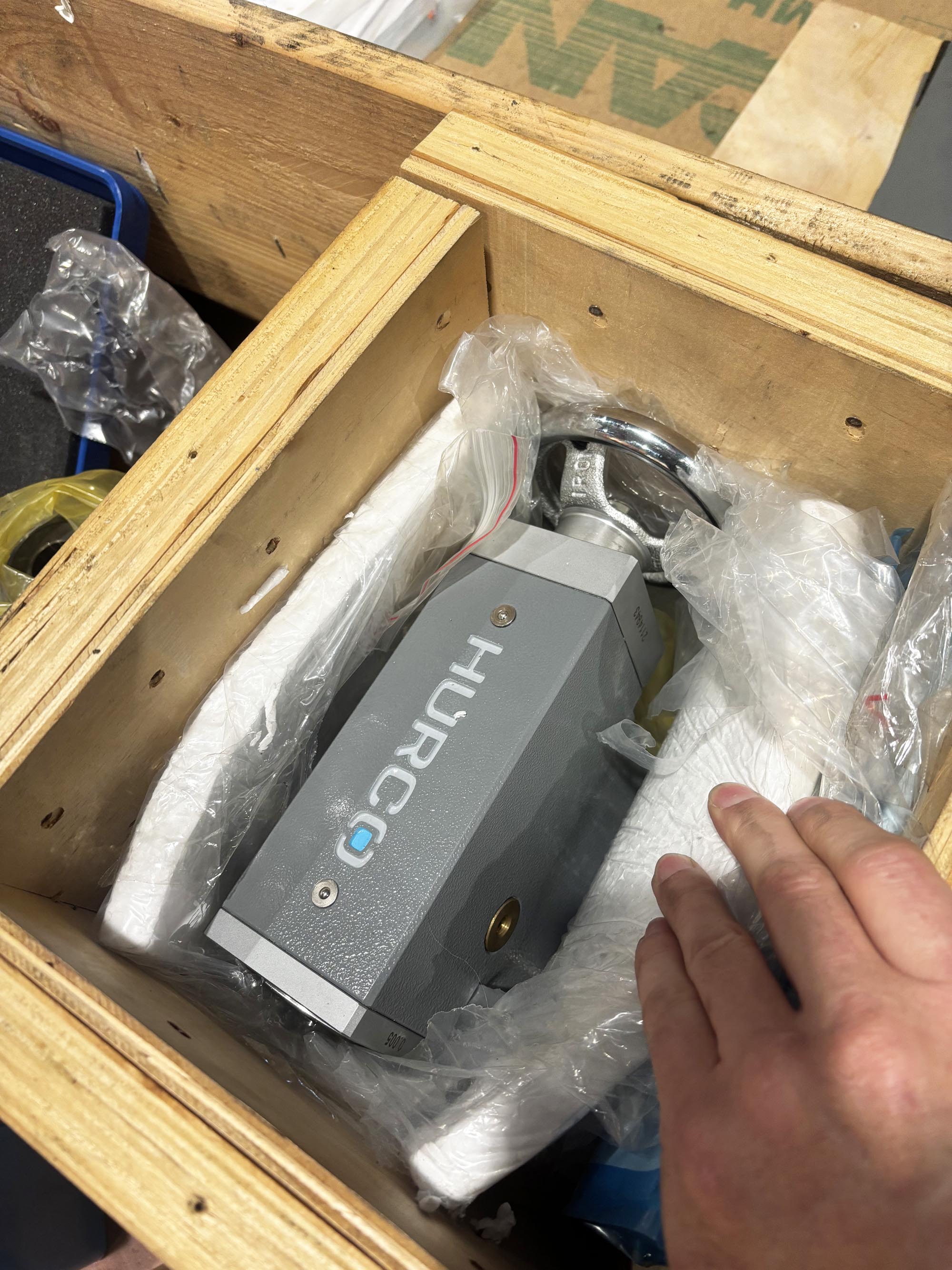

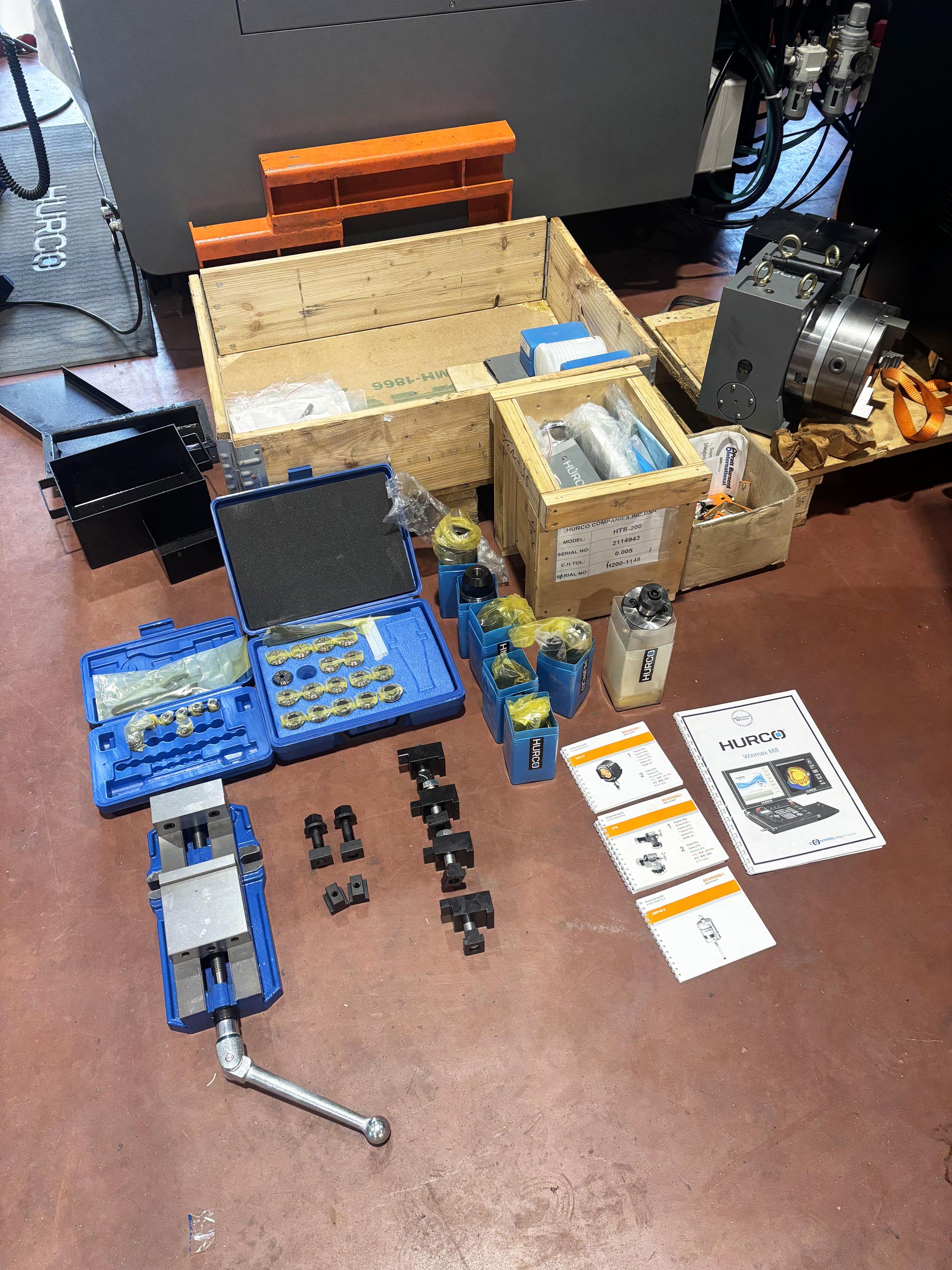

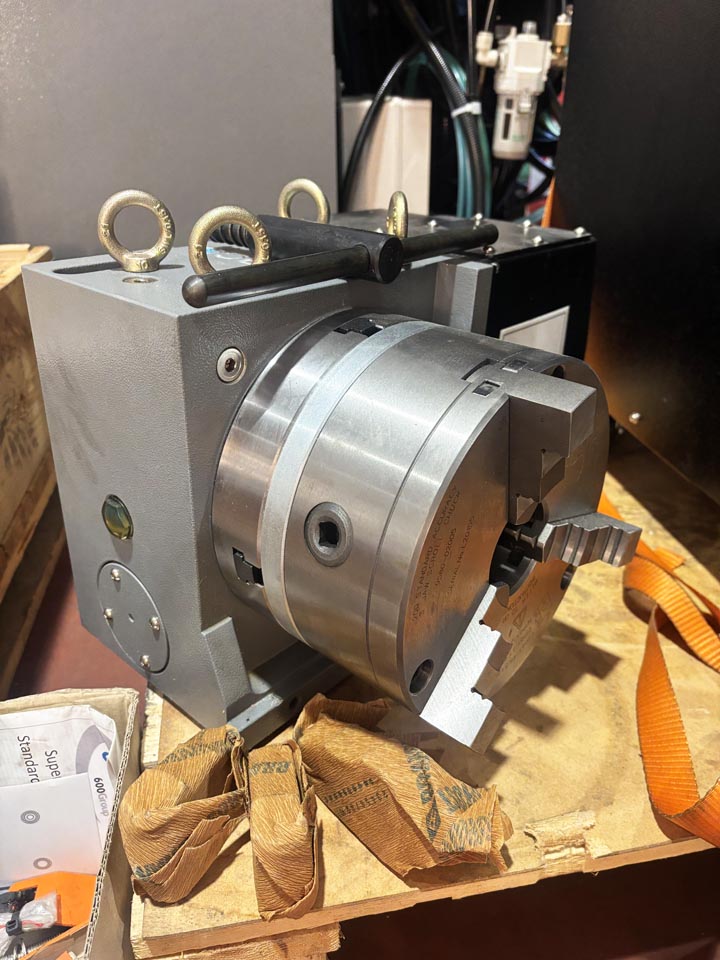

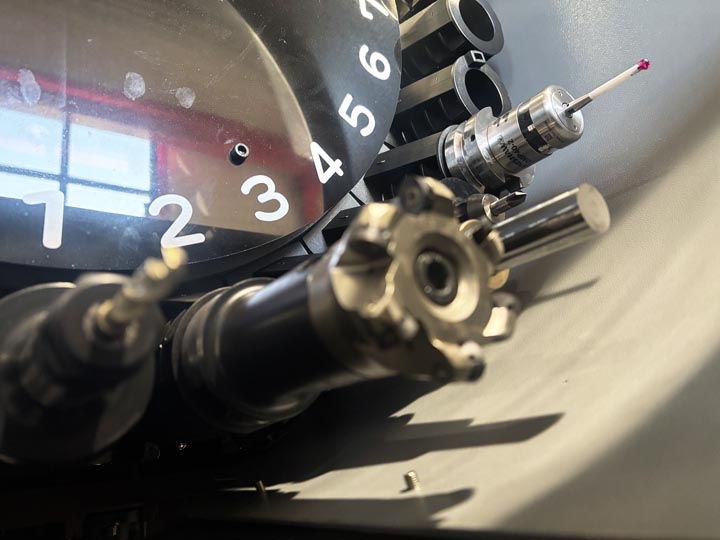

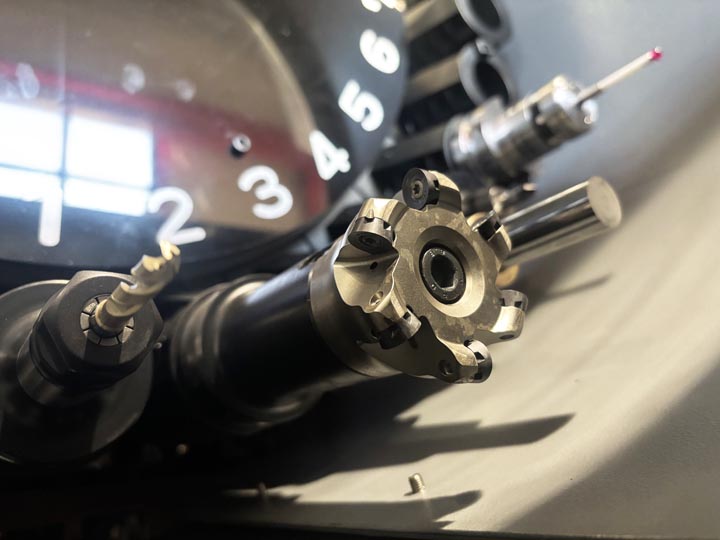

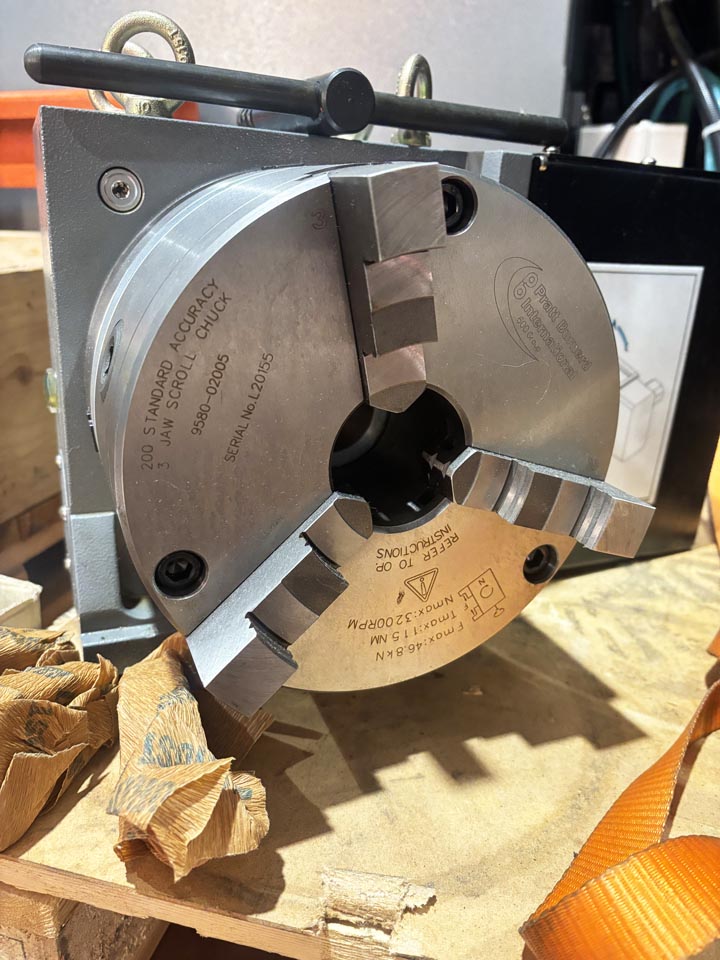

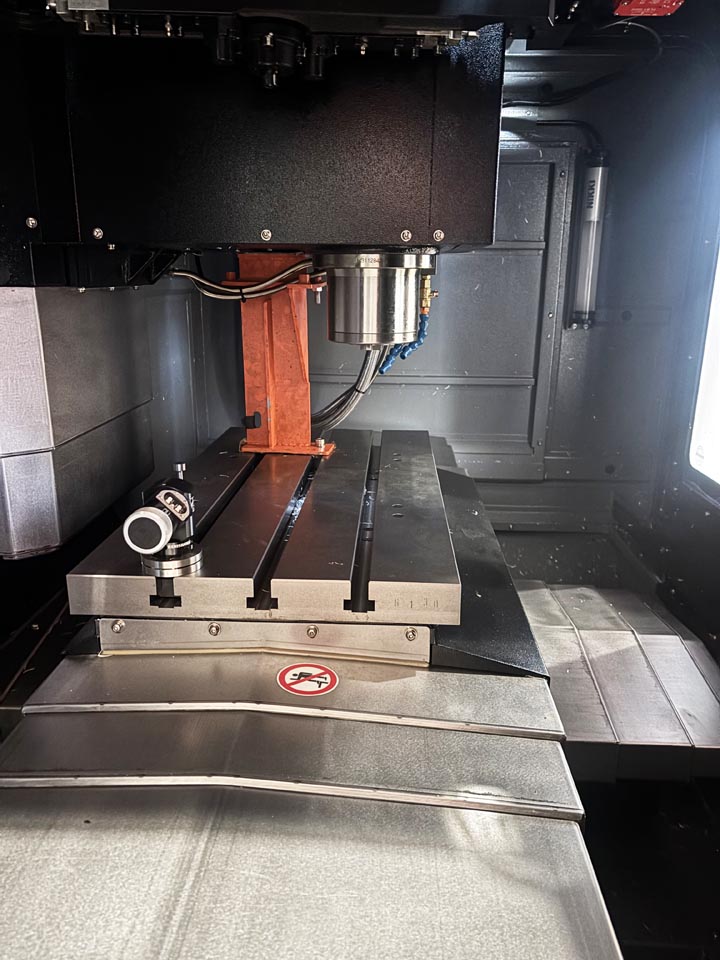

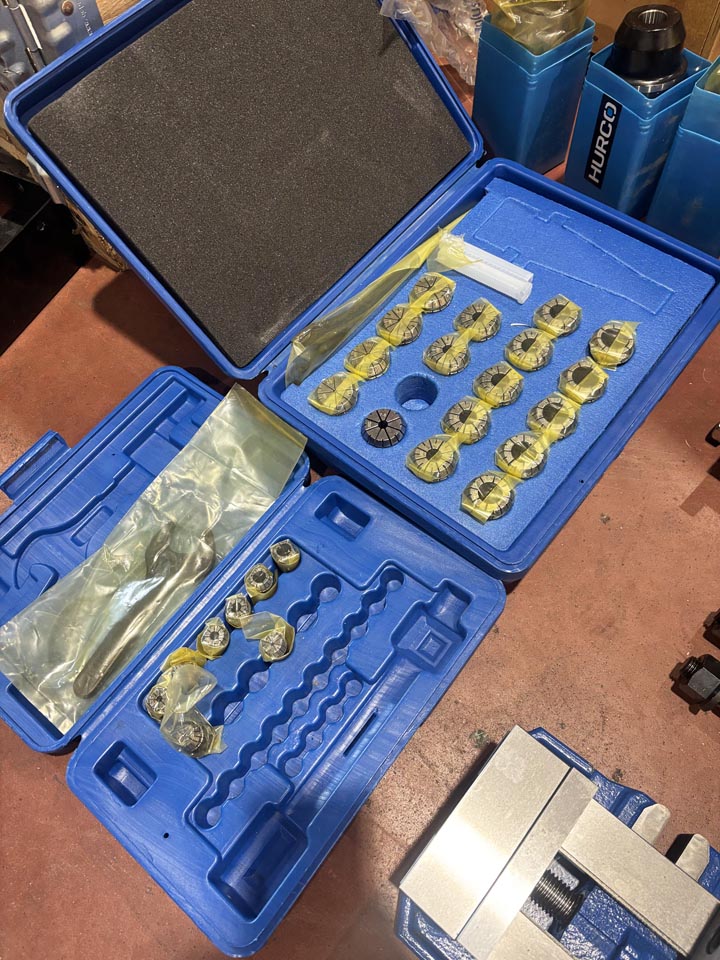

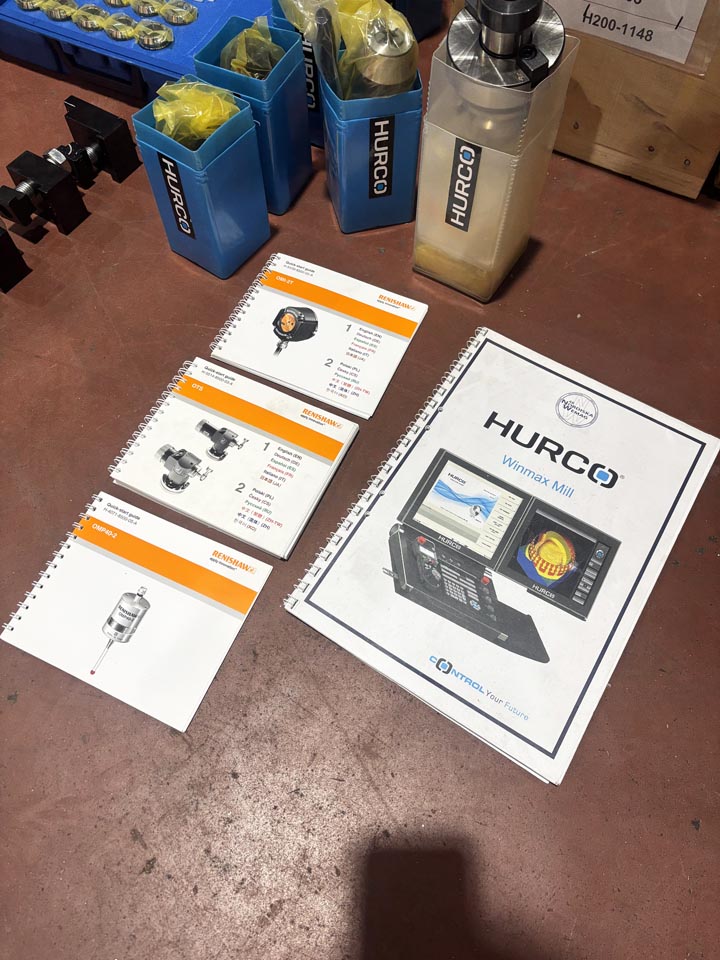

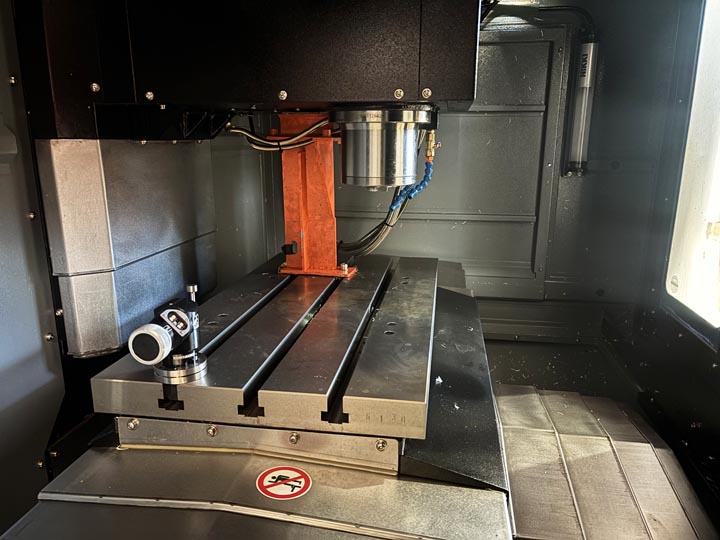

4:th axis Hurco H-200 (year: 2021 ser.no H200-114) with 3-jaw chuck Pratt Burnerds incl. external/internal jaws and chuck key tailstock Hurco HTS-200 (year: 2021 ser.no: H200-1145) chip conveyor optical machine interface Renishaw OMI-2T optical tool setter Renishaw OTS optical machine probe Renishaw OMP40-2 with BT40 holder 2 pcs collet chucks BT40-ER32-100 collet chuck BT40-ER16-100 7 pcs end mill holders BT40-Ø6-8-10-12-16-20-25 mm drill chuck BT40 0-13 mm face mill holder BT40/32 mm 9 pcs collets ER16 1,5-10 mm 18 pcs collets ER32 2-20 mm machine vice Kemmler ATD-460A manuals etc.

Specification

Table size: 762x406 mm

Work travel: X660, Y406, Z508 mm

Spindle taper: SK40

Max distance spindle nose - table: 102-610 mm

Max spindle speed: 10 000 rpm

Spindle motor: 11 kW

Rapid feed X/Y/Z: 28 m/min

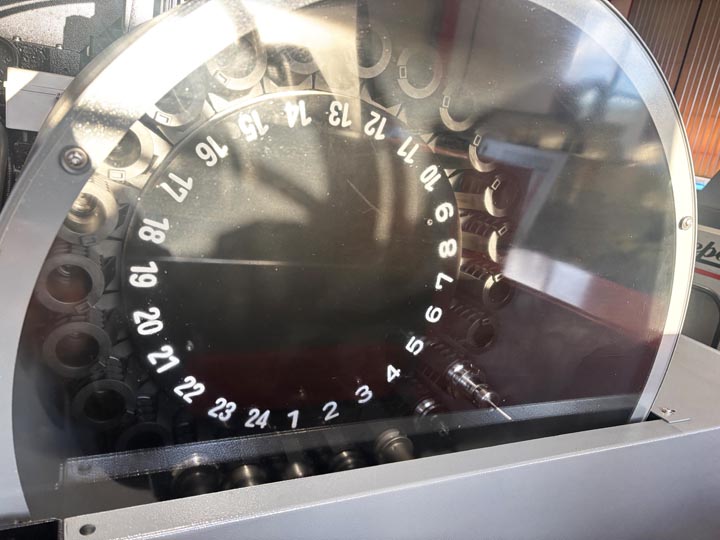

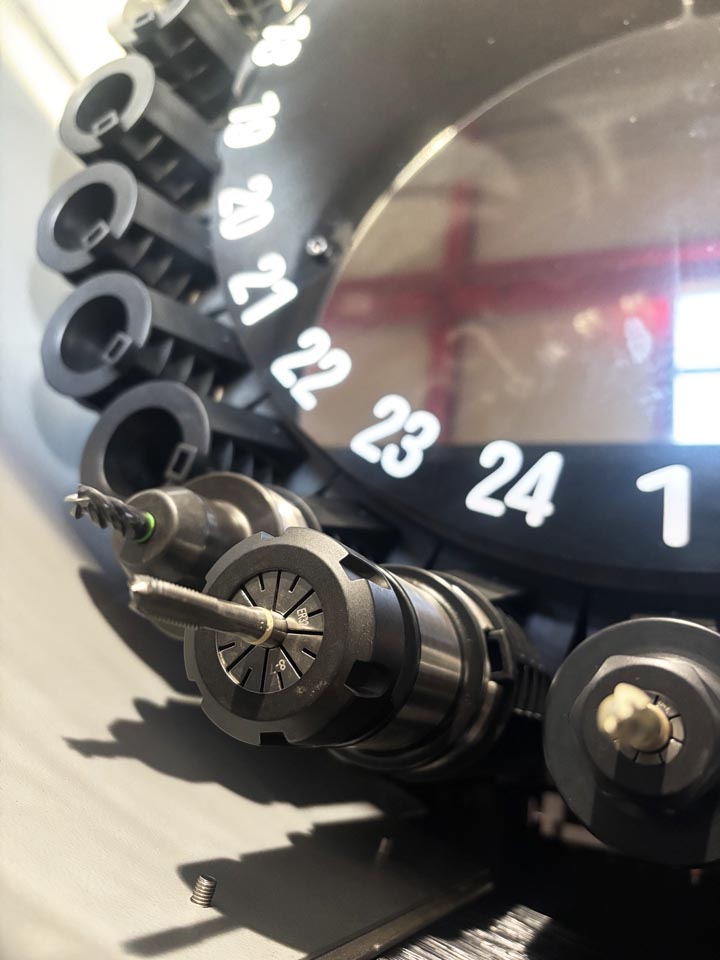

Number of tools in tool changer: 24 pcs

Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
