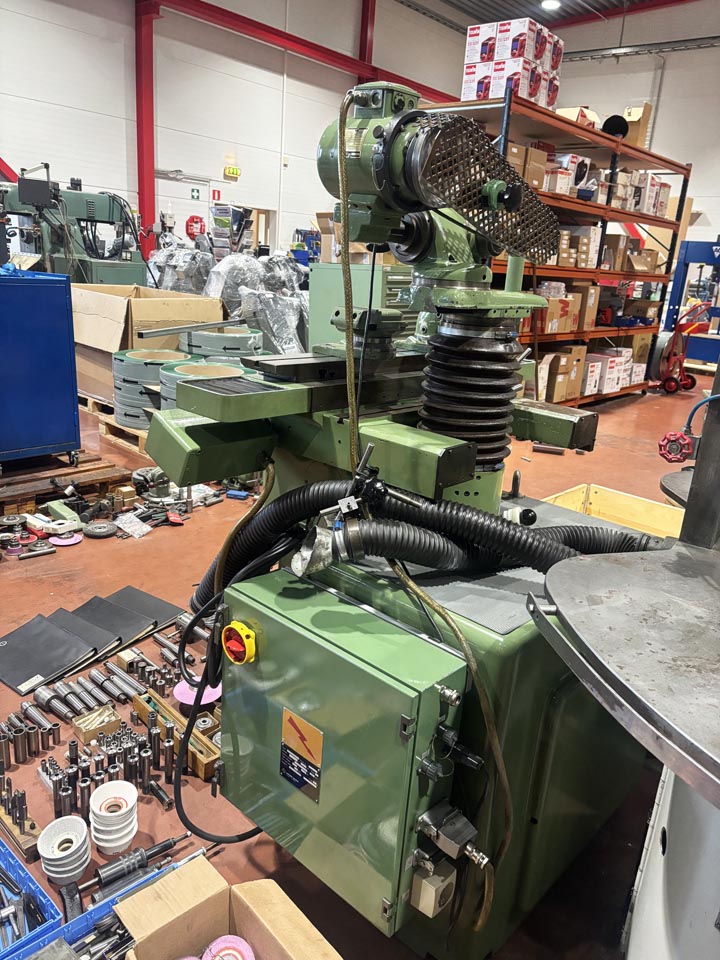

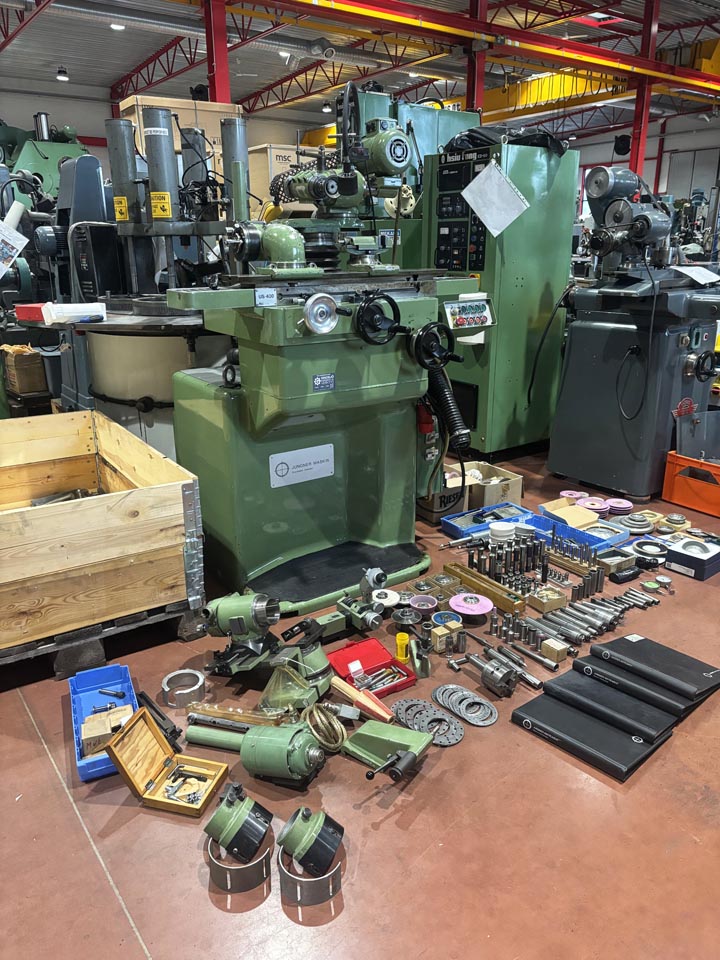

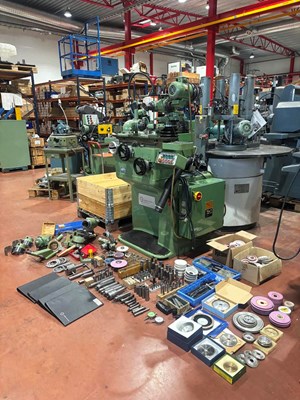

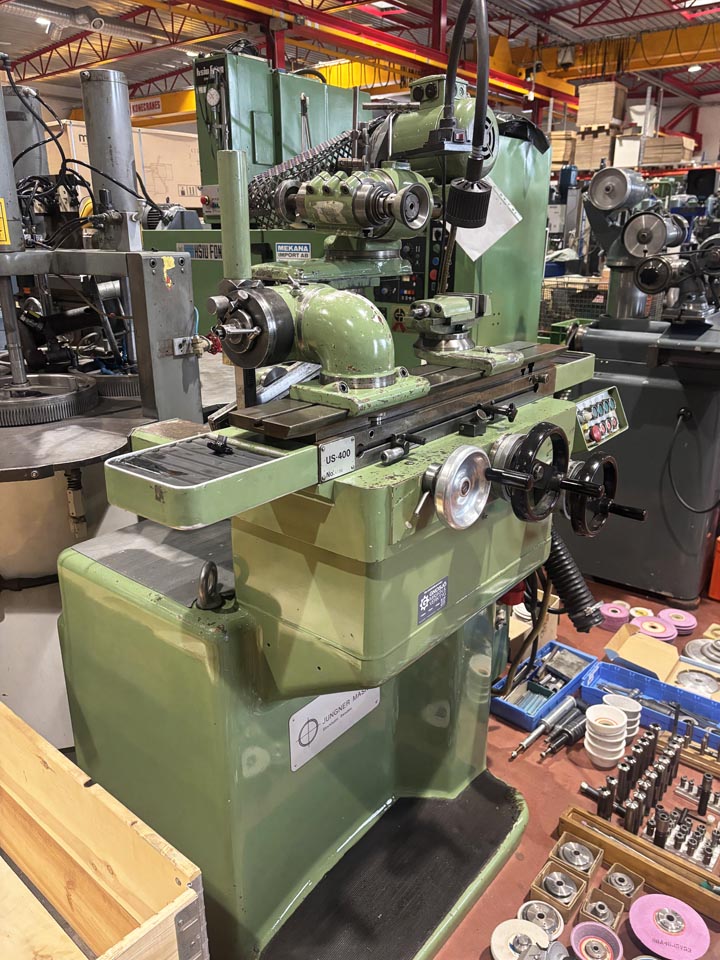

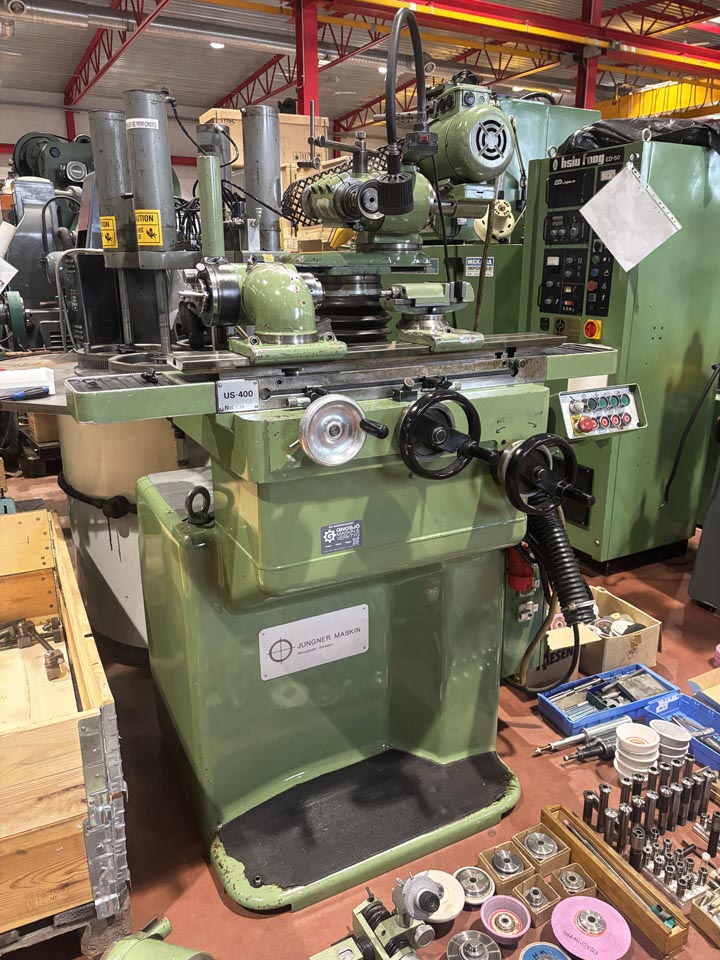

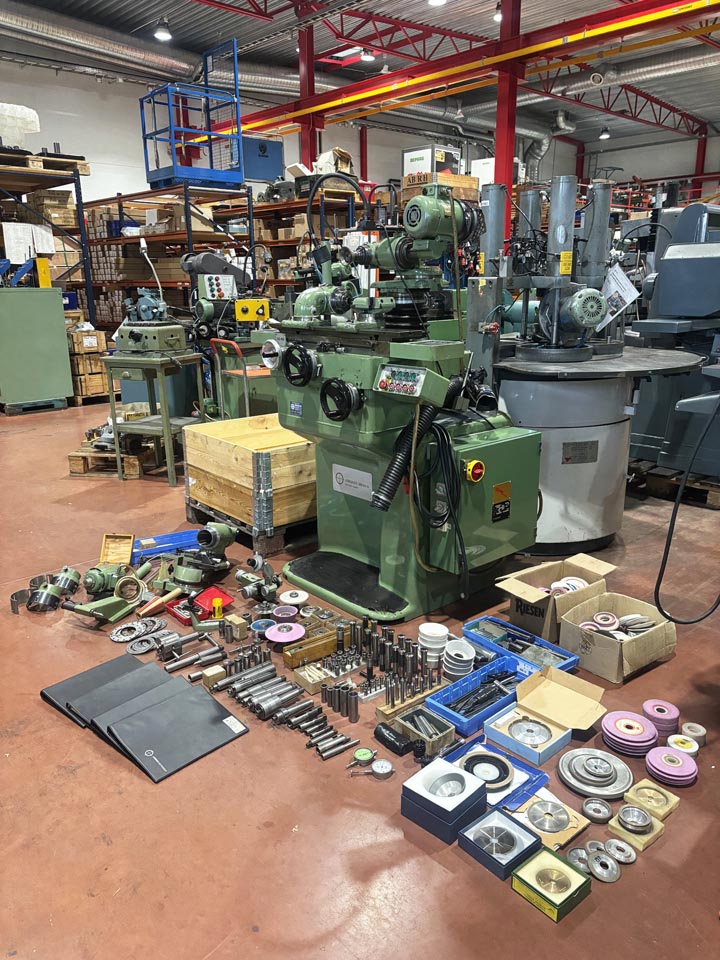

Tool grinder Jungner US400 with accessories

Without VAT:

95000

In Stock

Article Code 01H-00821

Maker	Jungner	Weight
Model	US400	Size
Ser. No		Condition	6/10
Year		Delivery Code	999-300095

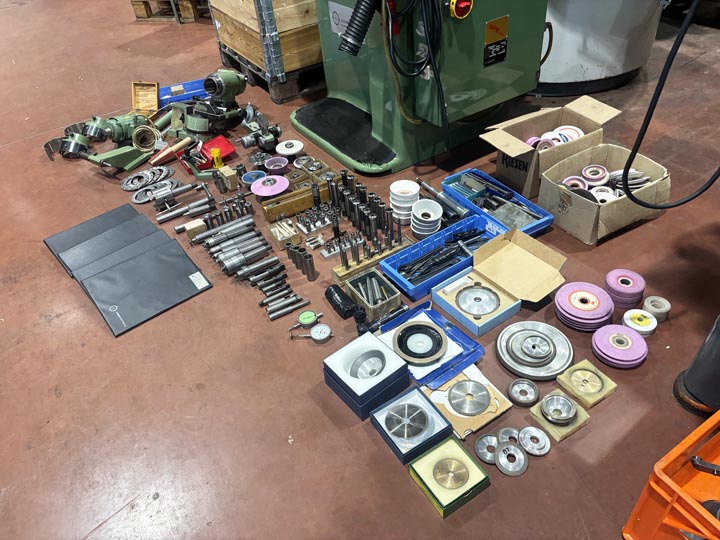

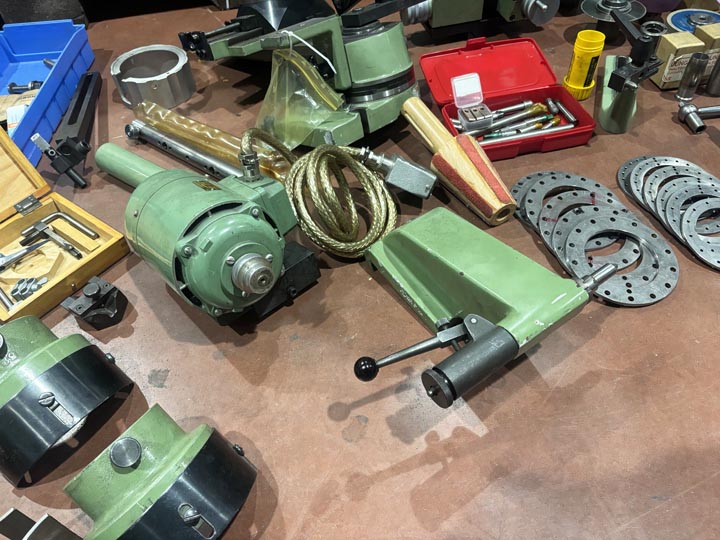

Tool accessories

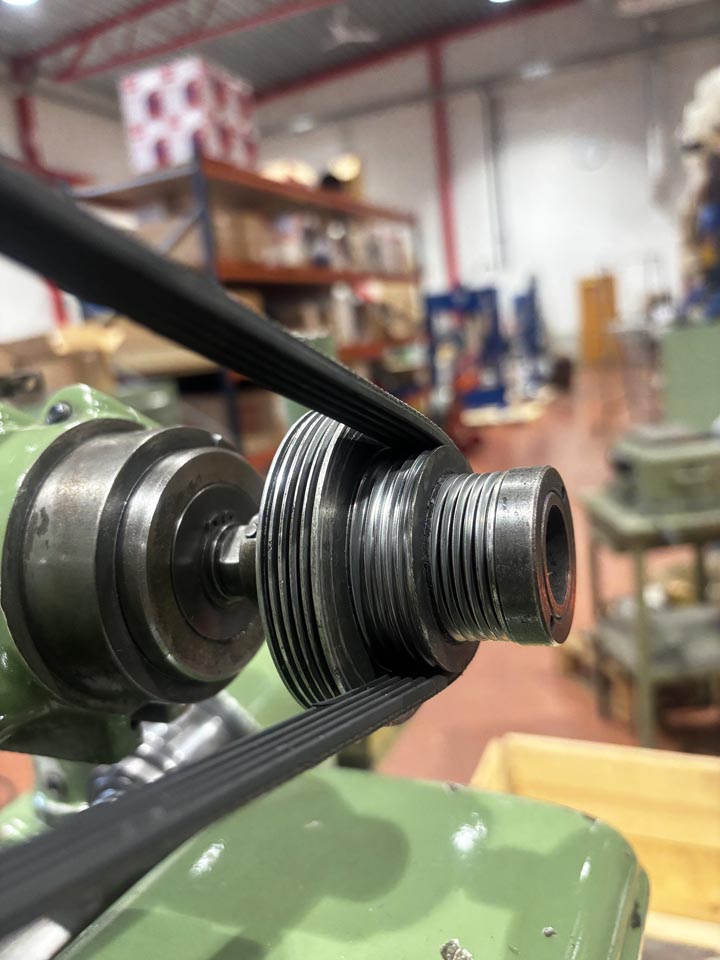

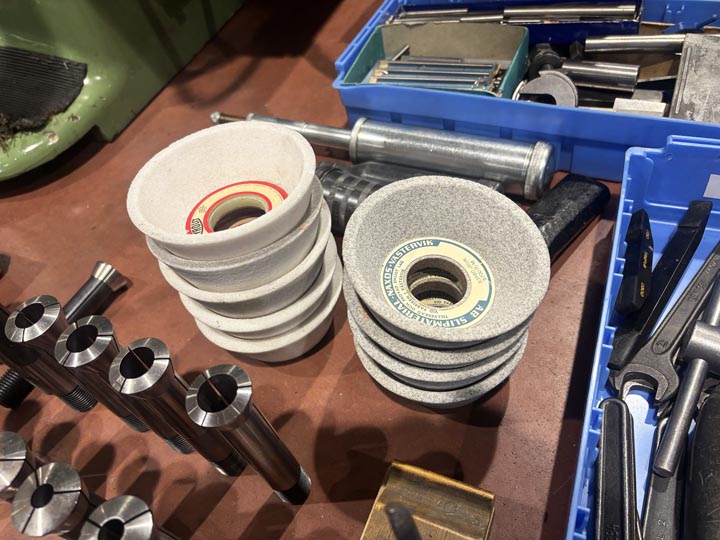

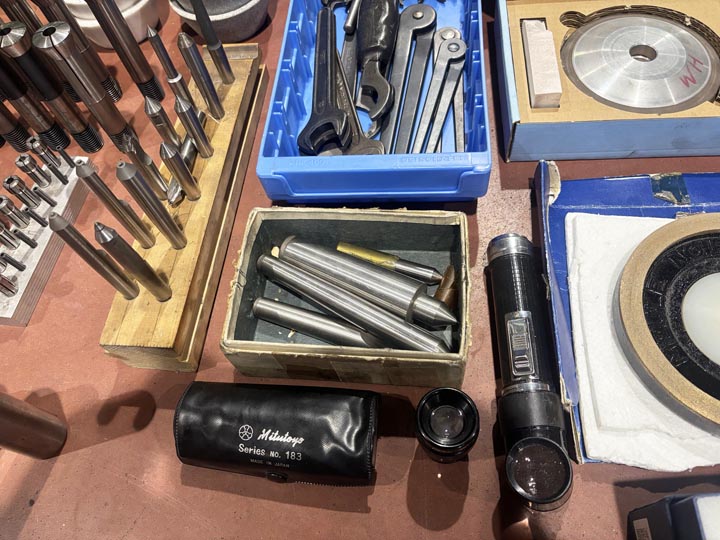

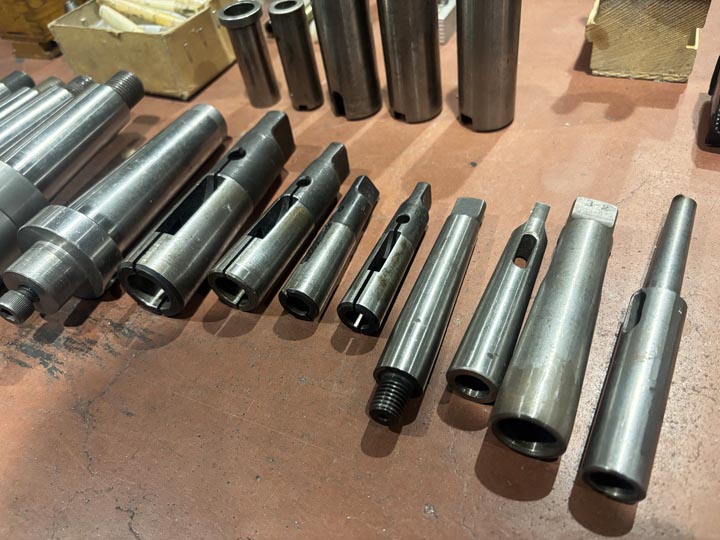

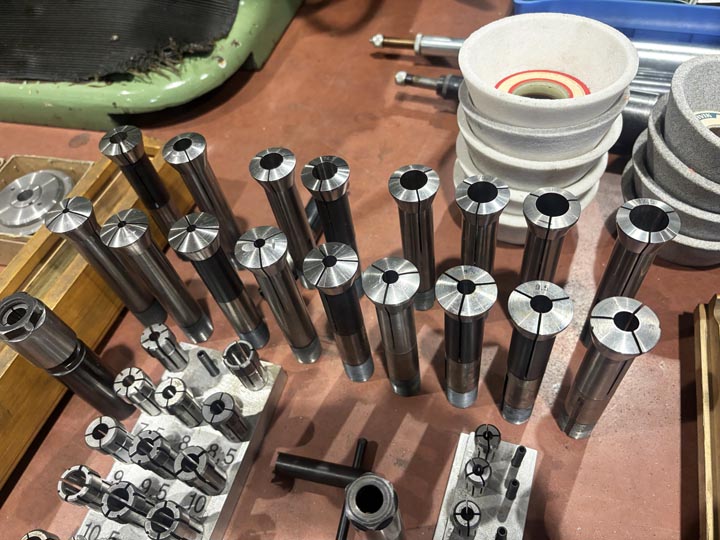

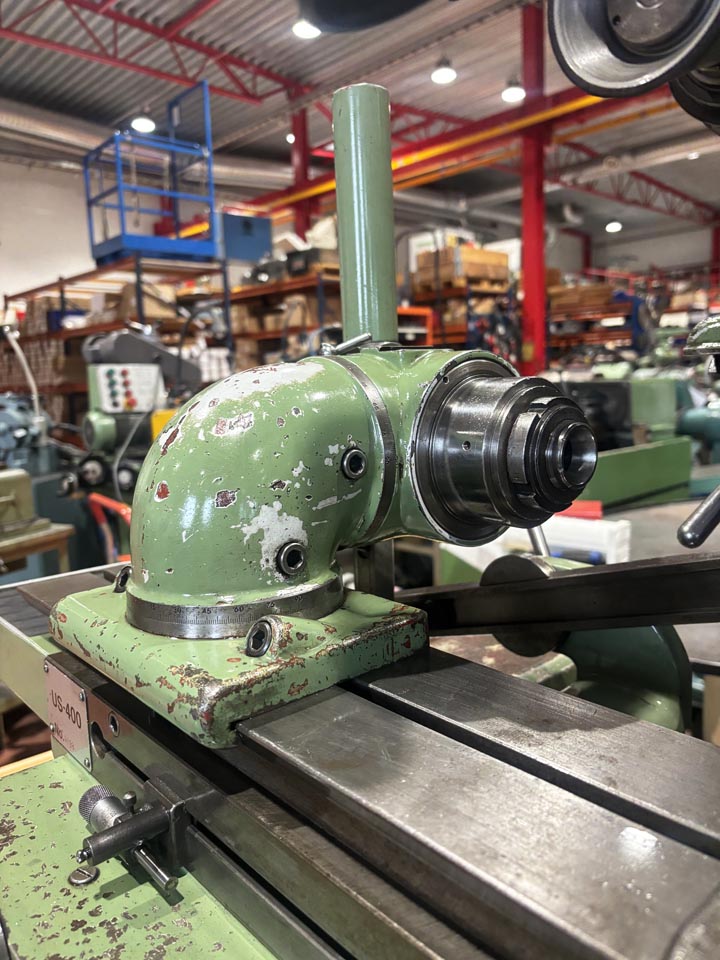

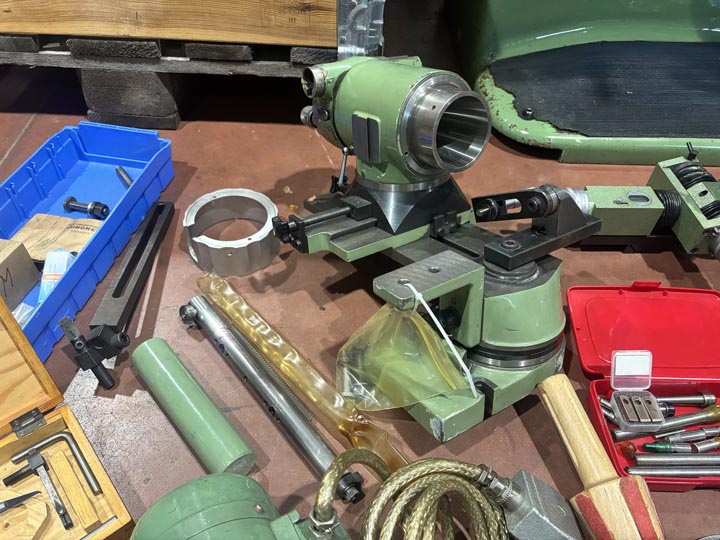

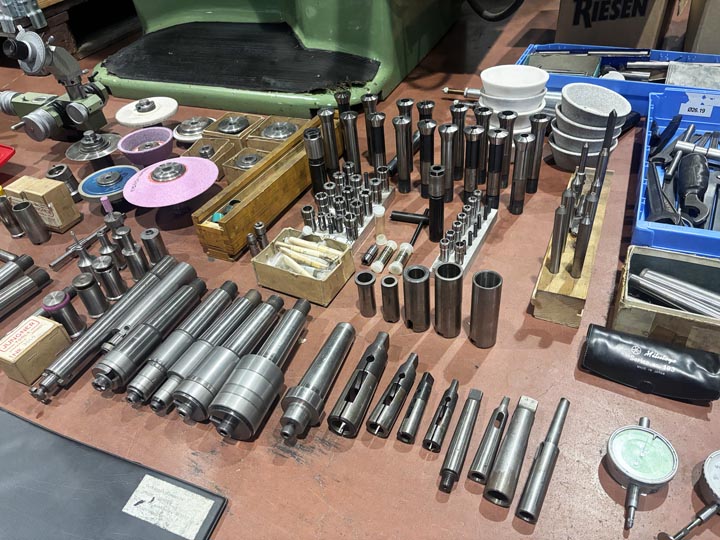

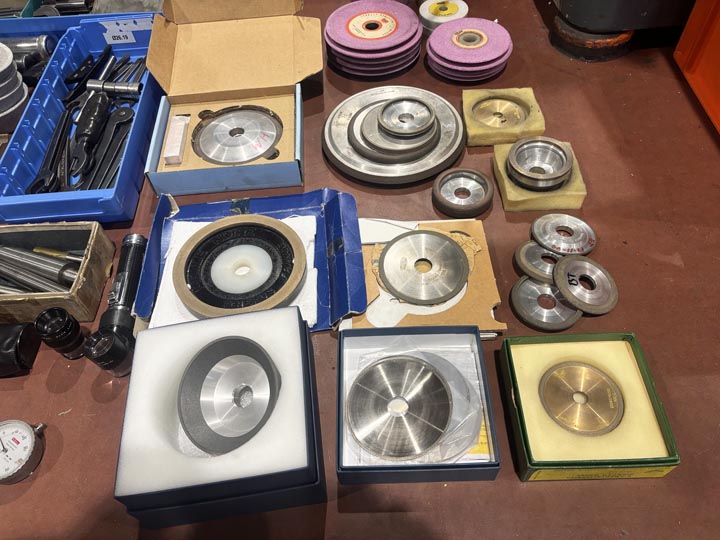

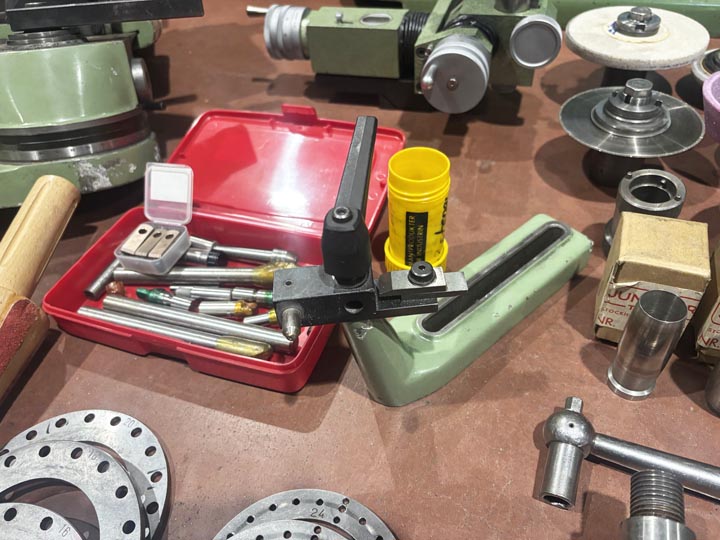

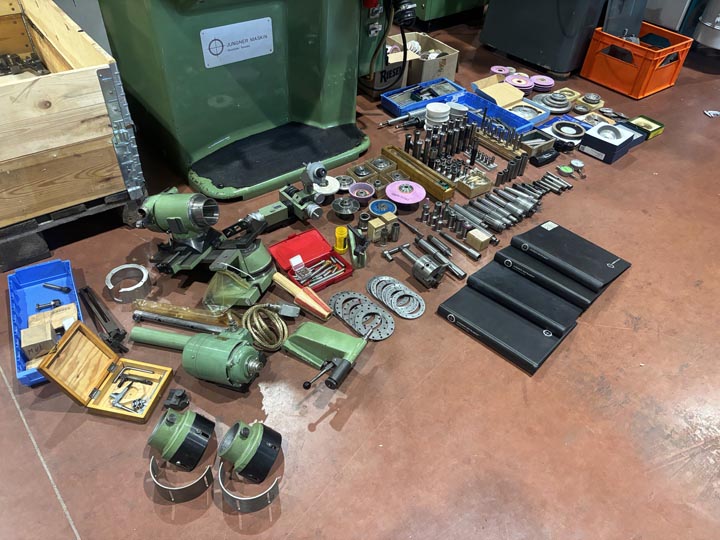

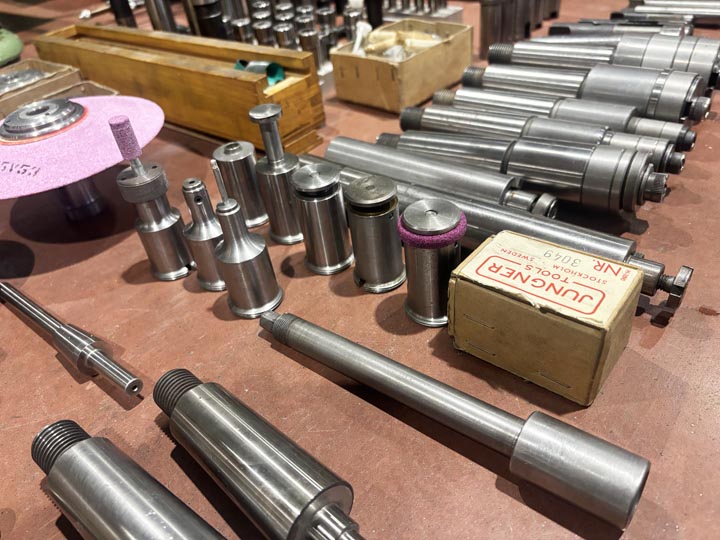

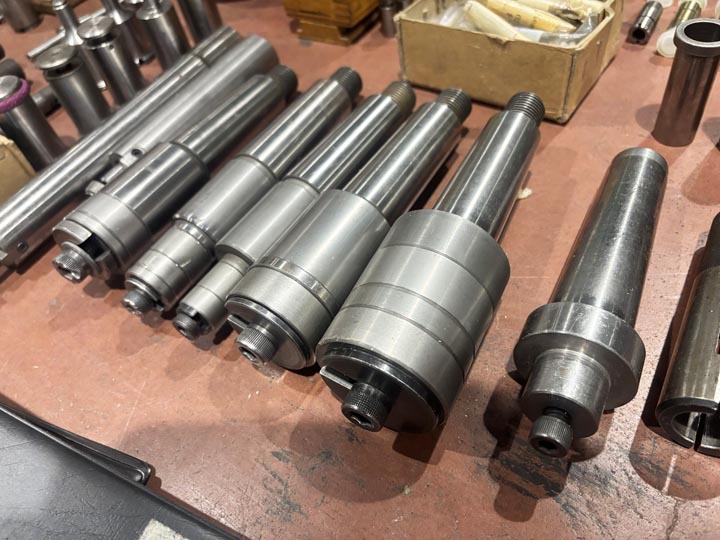

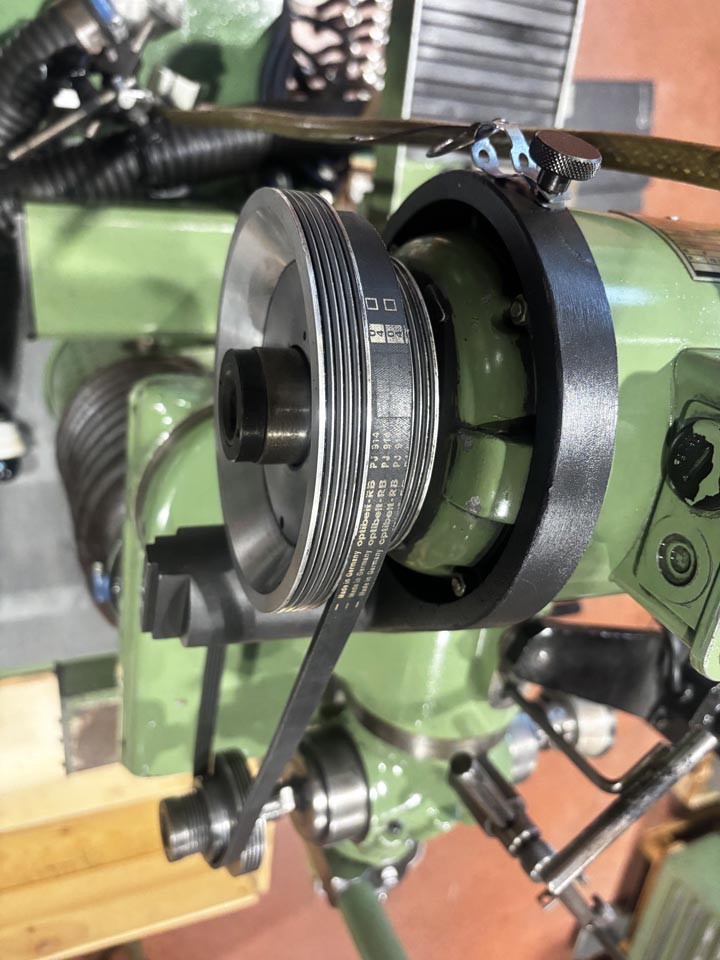

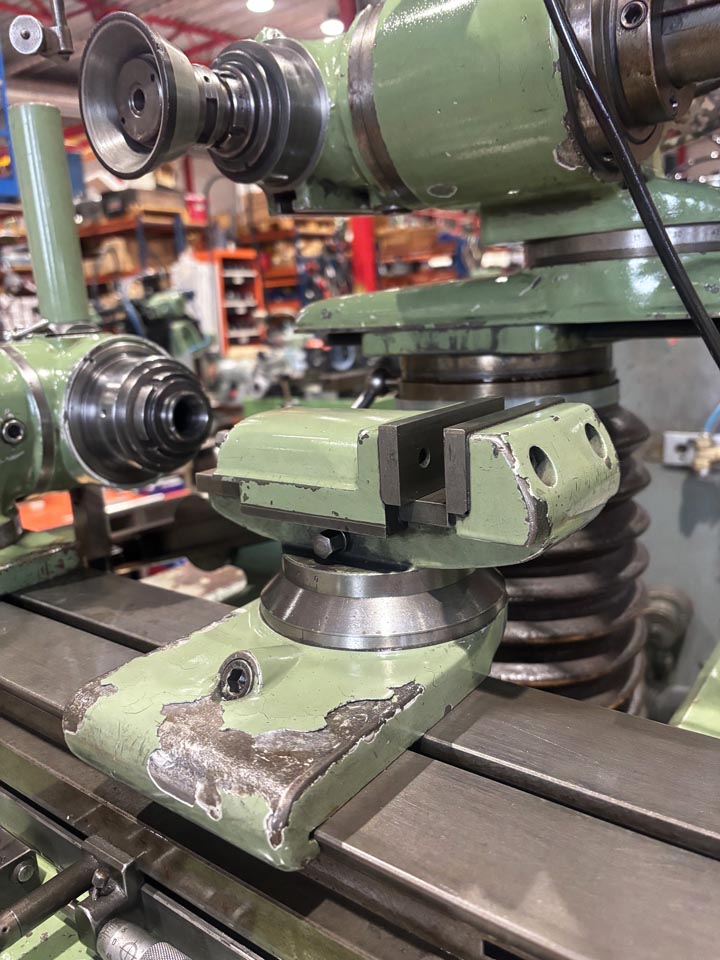

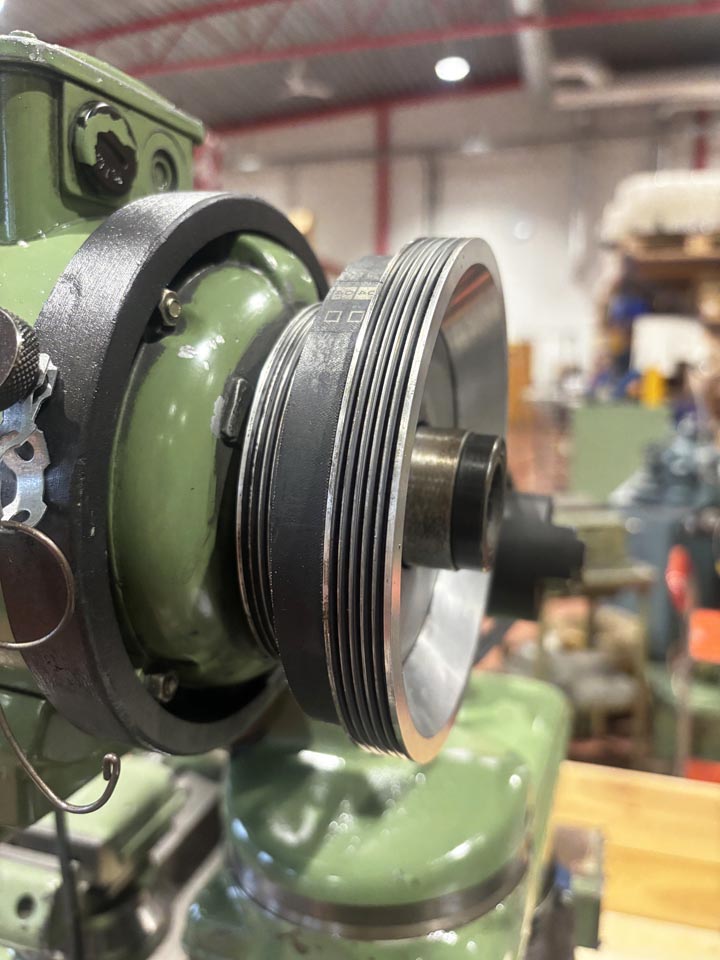

Workhead spiral grinding accessories precision vice tailstock motor for workhead (circukar grinding) radius/sphere grinding device (for convex/concave radius) microscope for workhead dividing plates 14-16-18-20-22-24 dividing plates (larger) 14-15-16-18-20 tear-off unit + some diamonds follow finger 3-jaw chuck Ø83 mm MT4 indicator mandrel MT4 center MT4 draw bar balancing mandrel pulleys Ø25 & 30 mm multi track puleys (in machine) Ø~103-123-134/~73-49-36 mm 3 pcs wheel flange (large) 3 pcs wheel flange (medium) 3 pcs wheel flange (little) 3 pcs flange for hole Ø10 mm glange for hole Ø13 mm 3 pcs flange for grinding pin morse taper sleeve MT3/Ø20 - MT3/Ø16 mm - MT2/Ø10,5 mm reduc. sleeve MT3/2 & MT2-1 morse taper extender MT1-MT1 reducing sleeve Ø20/MT1 - Ø20/MT2 - Ø30/MT2 - Ø30/MT3 18 pcs collets 4-5-5,5-6-7,5-8-8,5-9,5-10-11,5-12-12,5-14-14,5-15-15,5-16-17 mm collet sleeve collet chuck shaft Ø25 mm + 14 pcs collets Ø7-7,5-8-8,5-9-9,5-10-10,5-11-11,5-12-12,5-13-14 mm collet chuck shaft Ø20 mm + 8 pcs collets Ø5-5,5-6-7-7,5-8-8,5-10 mm grinding spindle for internal centers ~20 pcs diamond wheels (new/used) grinding wheels etc

Specification

Table travel long: 400 mm

Table travel cross: 200 mm

Claping area at table: 800x114 mm

Taper in workhead: 50
