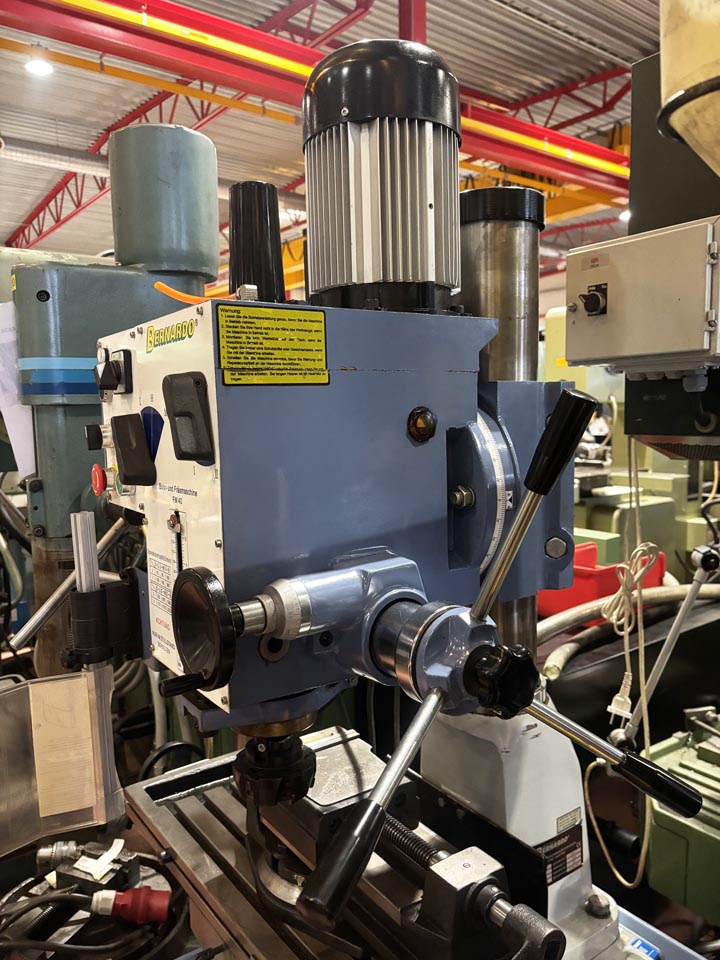

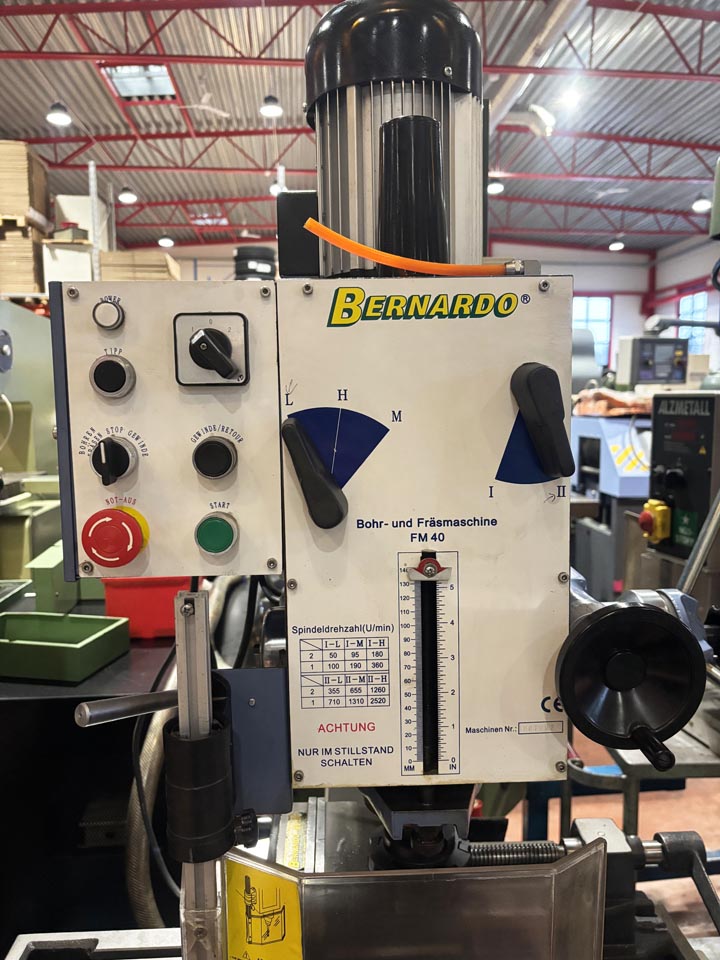

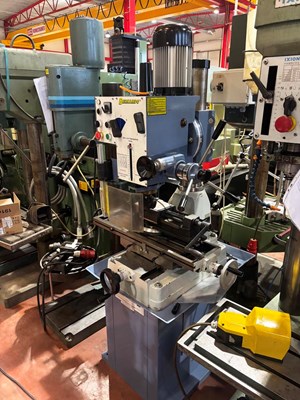

Drilling-/milling machine Bernardo FM40. Year: 2010.
Without VAT:
Contact us
In Stock
Article Code 05B-00655
Print| Maker | Bernardo | Weight | 260 kg |
| Model | FM40 | Size | |
| Ser. No | 1001002 | Condition | 6/10 |
| Year | 2010 | Delivery Code |
Tool accessories
Face mill arbor face mill Ø80 mm drill chuck drill chuck arbor milling vice with swivel base.Specification
Drill capacity: 31,5 mm
Distance spindle nose to column surface: 272,5 mm
Max distance spindle nose to table: 425 mm
Spindle taper: MT3
Quill stroke: 130 mm
Spindle speed: 50-2520 rpm (12pcs)
Table size: 730x210 mm
Table travel: 500x175 mm
Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
