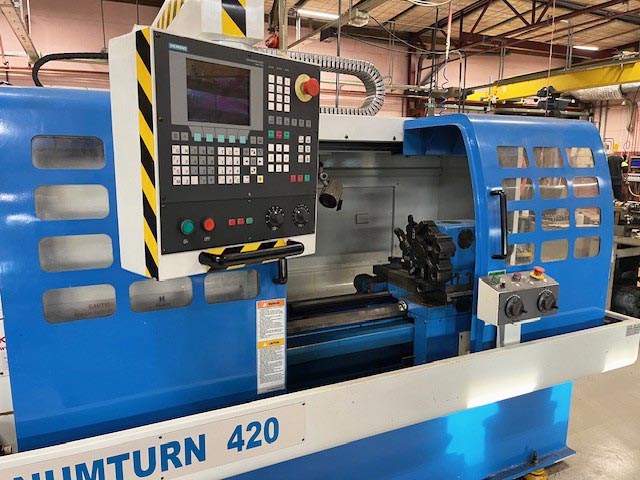

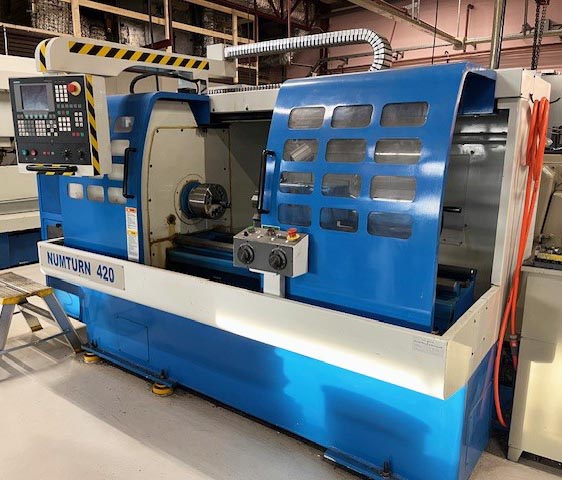

Teach-in lathe Knuth Numturn 420. Year: 2006.

Without VAT:

98000

In Stock

Article Code 20C-00690

Maker	Knuth	Weight	2600 kg
Model	Numturn 420	Size	3 x 1,4 m
Ser. No	137777	Condition	6-7/10
Year	2006	Delivery Code	999-505094

Tool accessories

Hydraulic 3-jaw chuck Auto Strong Ø210 mm with ground jaws + upper hard jaws + soft jaws hydraulic 3-jaw chuck Ø205 mm with ground jaws + upper hard jaws + soft jaws collet chuck with cylindrical shaft Ø32 mm and 14 pcs collets ER25 5-16 mm 4 pcs internal tool holders for Ø32 mm 3 pcs reducer sleeve Ø32/12-16-20 mm 2 pcs axialholder 27x25 mm 2 pcs external cutting tool 1 pcs cut-off tool lighting coolant kit manuals etc.

Specification

Swing over cross slide 200 mm

Control system: Siemens Sinumerik 802S

Swing ove bed: 420 mm

Max work length: 840 mm

Spindle speed (high/low gear): 400-600/150-2500 rpm

Spindle motor: 5,5 kw

Travel X-axis: 215 mm

Travel Z-axis: 840 mm

Rapid feed X-axis: 2 m/min

Rapid feed Z-axis: 4 m/min

Revolver capacity: 8 pcs tools

Size WxDxH: 3x1,4x2,1 m
