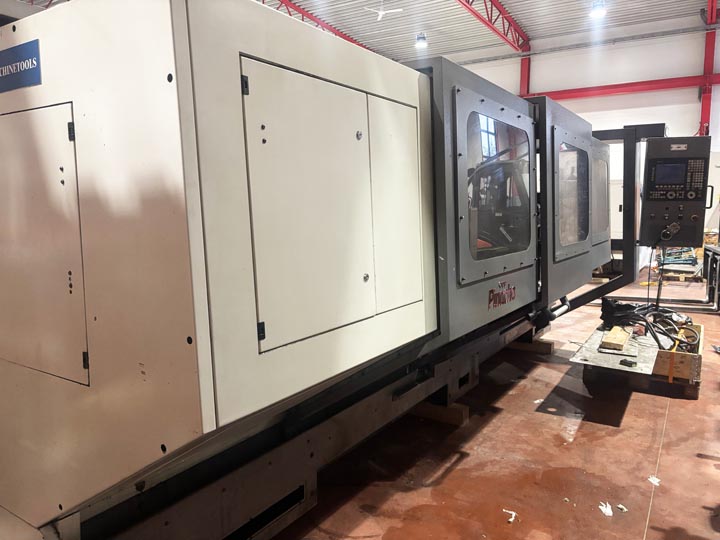

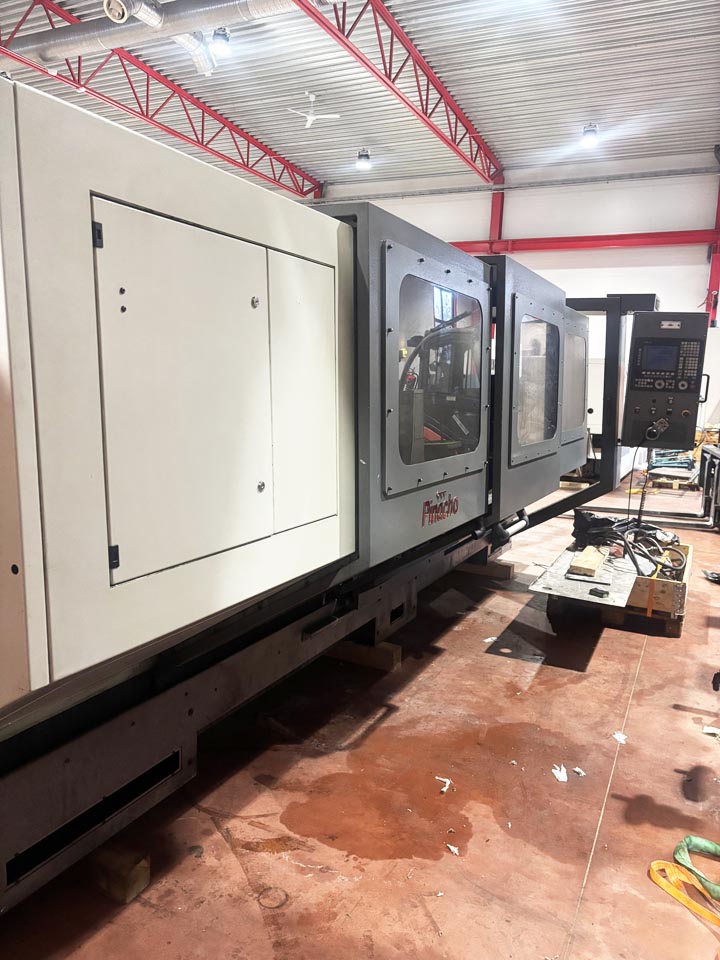

Teach-in lathe Pinacho ST400. Year: 2018.

Without VAT:

Contact us

In Stock

Article Code 20A-00687

Maker	Pinacho	Weight	6500 kg
Model	ST400	Size	~5,53 x 1,8 x 2,23 m
Ser. No	59001	Condition	5-6/10
Year	2018	Delivery Code

Tool accessories

Chip conveyor steady rest Ø300 mm 3-jawchuck Ø400 mm with ground jaws and hard/soft jaws rear 3-jawchuck Ø400 mm (mounted at the opposite side of spindle) with ground jaws and hard/soft jaws live centres bull nose live center drill chuck and some tool holders cutting tools and manuals...

Specification

Control system: Fagor 8055

Center height: 400 mm

Center distance: 3000 mm

Swing over bed: 805 mm

Swing over cross slide: 510 mm

Swing over carriage: 720 mm

Spindle bore: 155 mm

Spindle speed: 0-1000 rpm

No tools in revovler: 8 pcs

Tailstock quill stroke: 215 mm

Morse taper in tailstock: MT6

Spindle speed: 0-1000 rpm

Feed rate X/Z: 0-7000 mm/r

Rapid feed Z: 10 m/min

Floor space WxDxH: ~5,53(7*)x1,8x2,23 m

* : With chip conveyor
