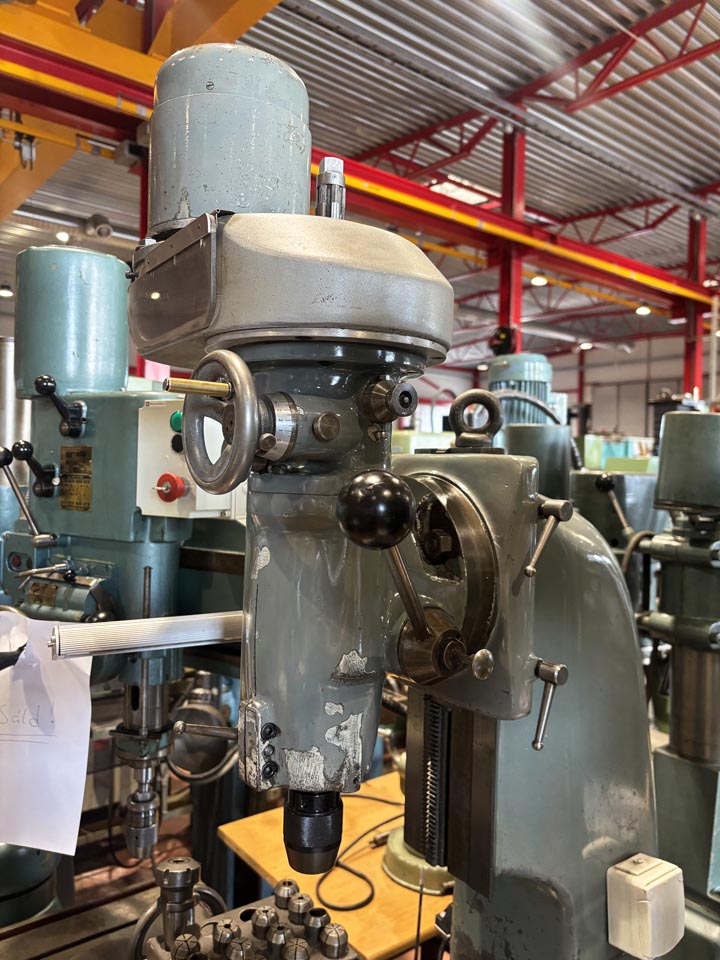

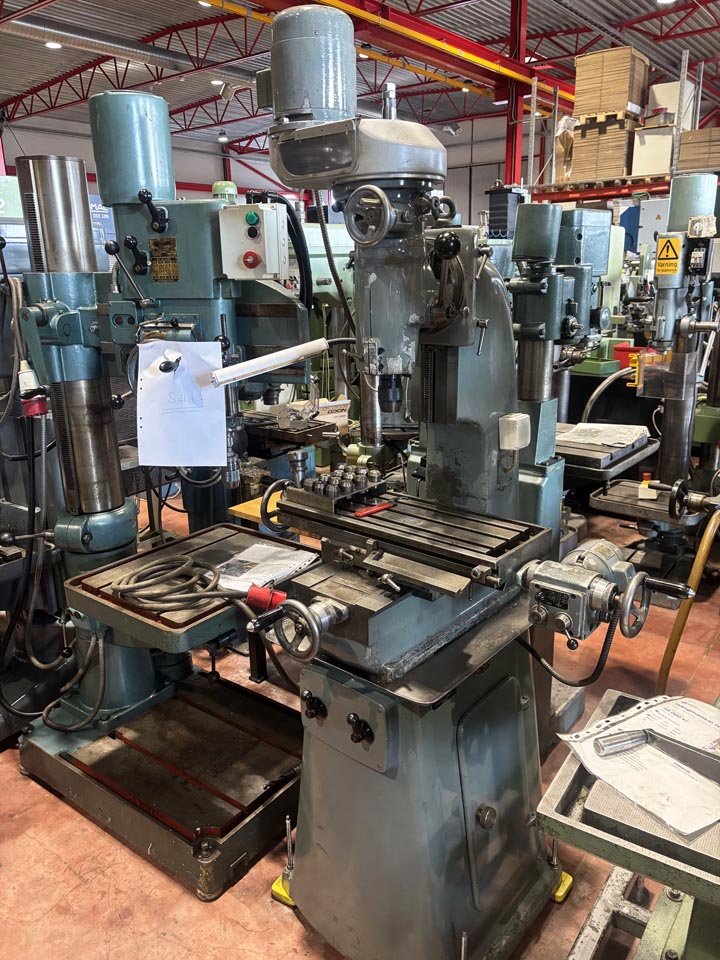

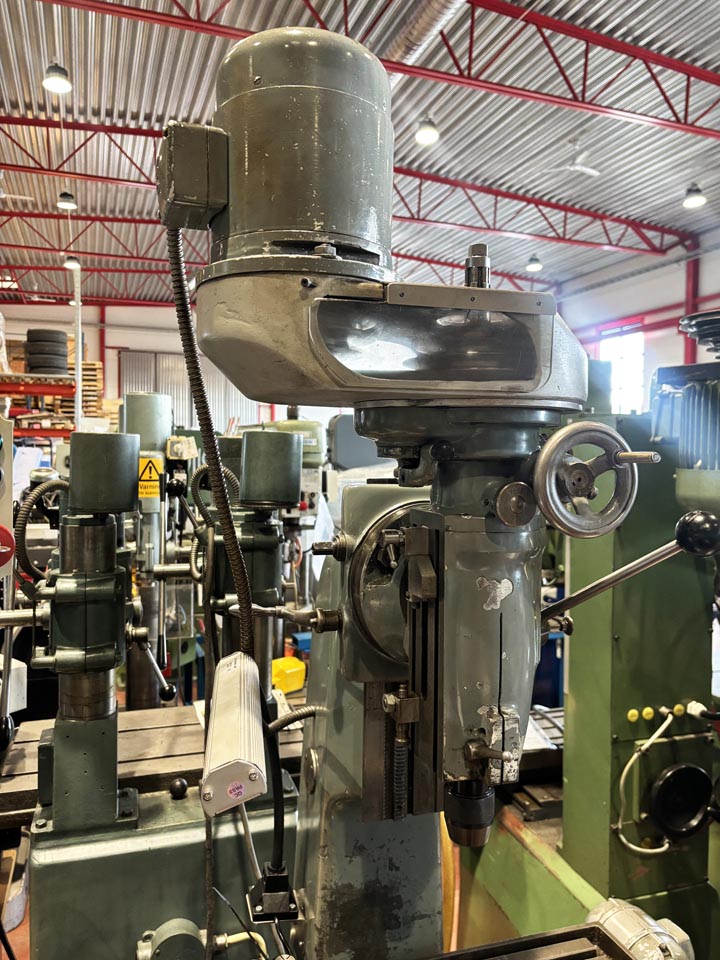

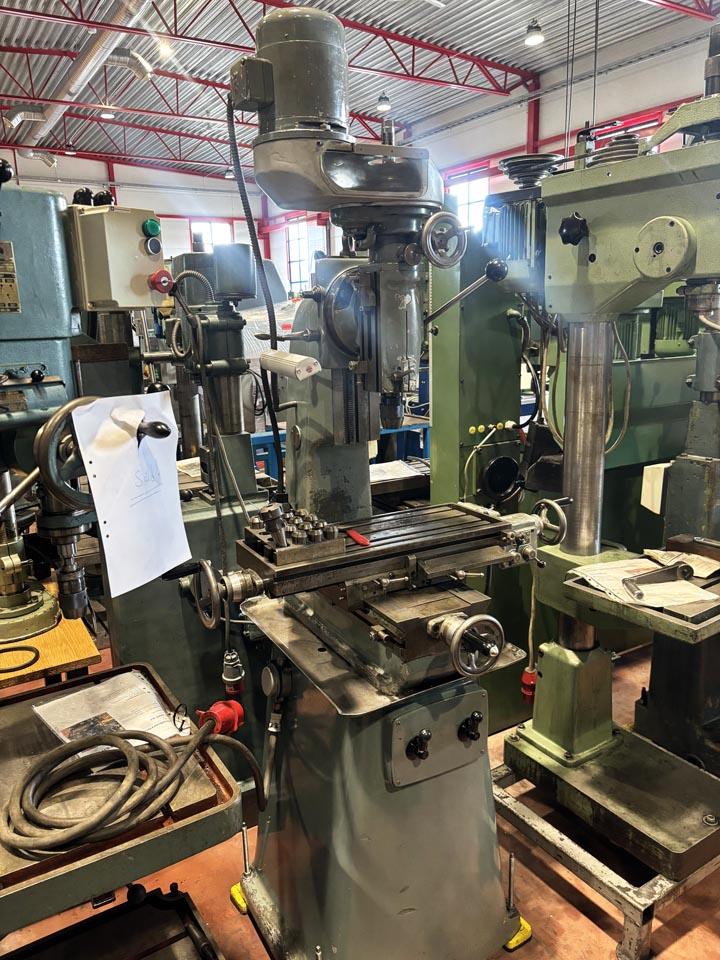

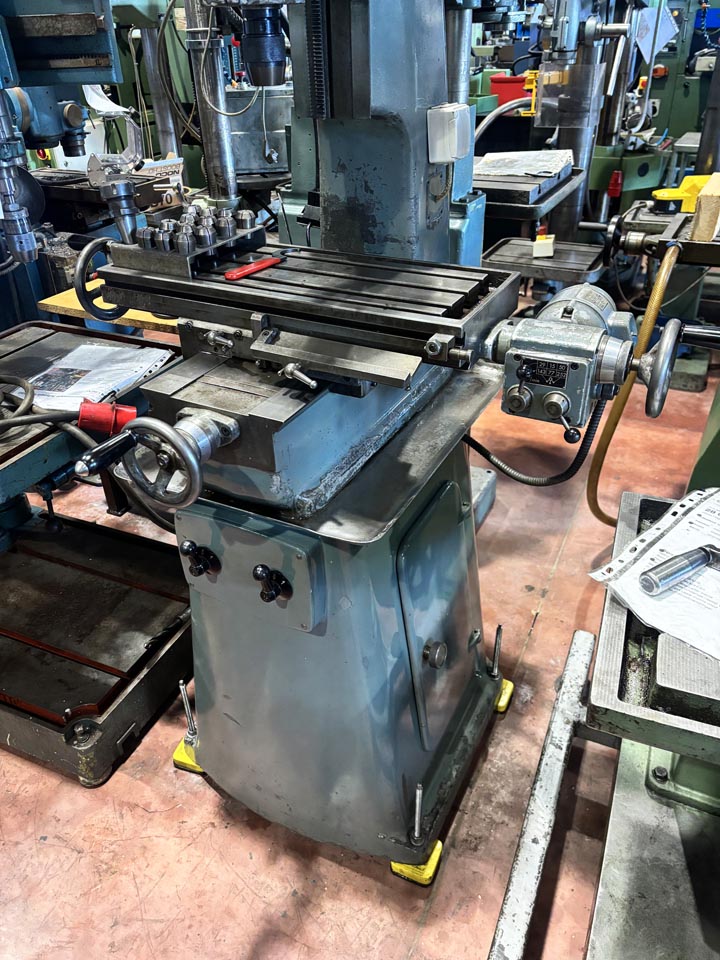

Drilling-/milling machine Mattsson & Zetterlund VF600
Without VAT:
Contact us
In Stock
Article Code 05B-00671
Print| Maker | Mattson & Zetterlund | Weight | 550 kg |
| Model | VF600 | Size | |
| Ser. No | 356 | Condition | 5/10 |
| Year | Delivery Code |
Tool accessories

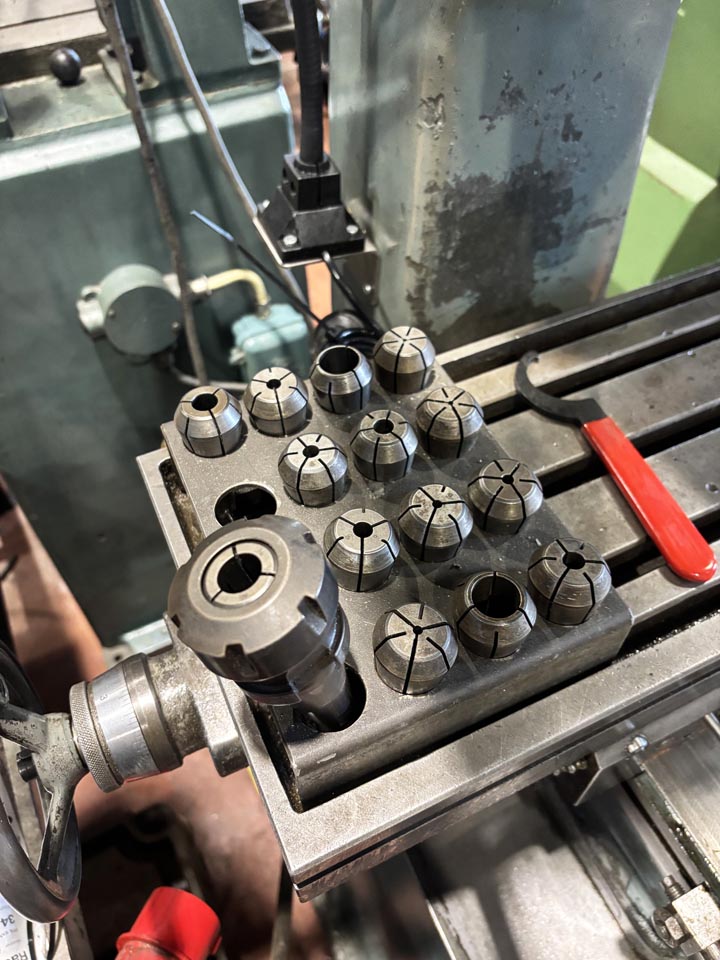

Drill chuck with ISO30 arbor collet chuck ISO30 with 14 pcs collets 2~20 mm lamp etc.Specification
Table size: 580x225 mm
Spindle head vertical adjustable: 320 mm
Spindle head swivel R/L: 0-45°
Distance spindle nose - table: 0-400 mm
Quill stroke: 90 mm
Automatic quill feed: 0,05 & 0,1 mm/v
Spindle taper: ISO30

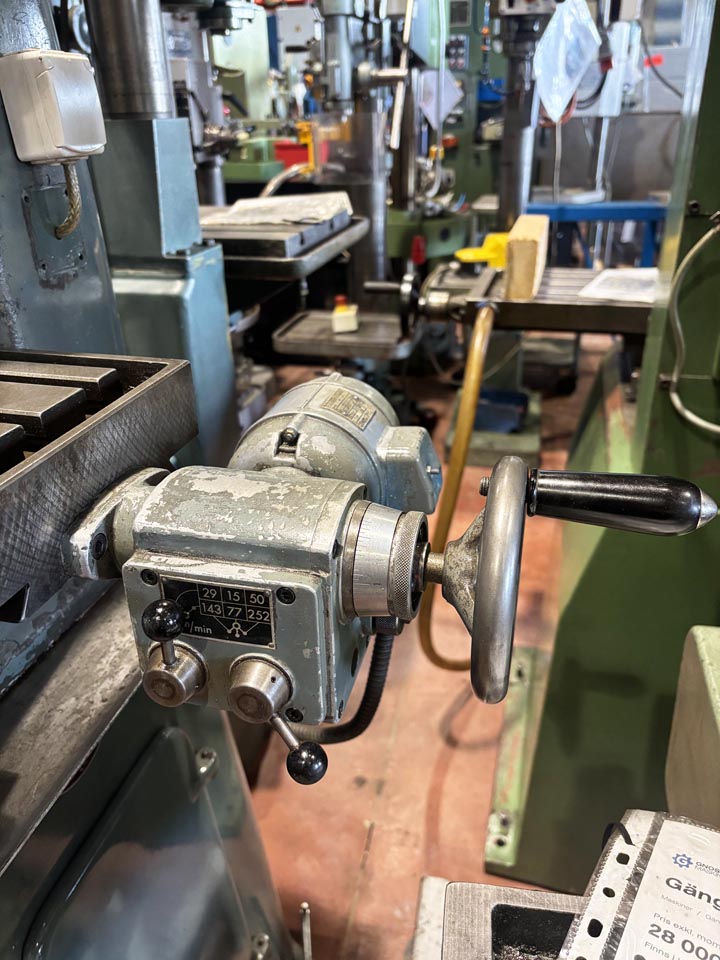

Autom. length feed (X-axis): 15-252 mm/min (6pcs)
Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
