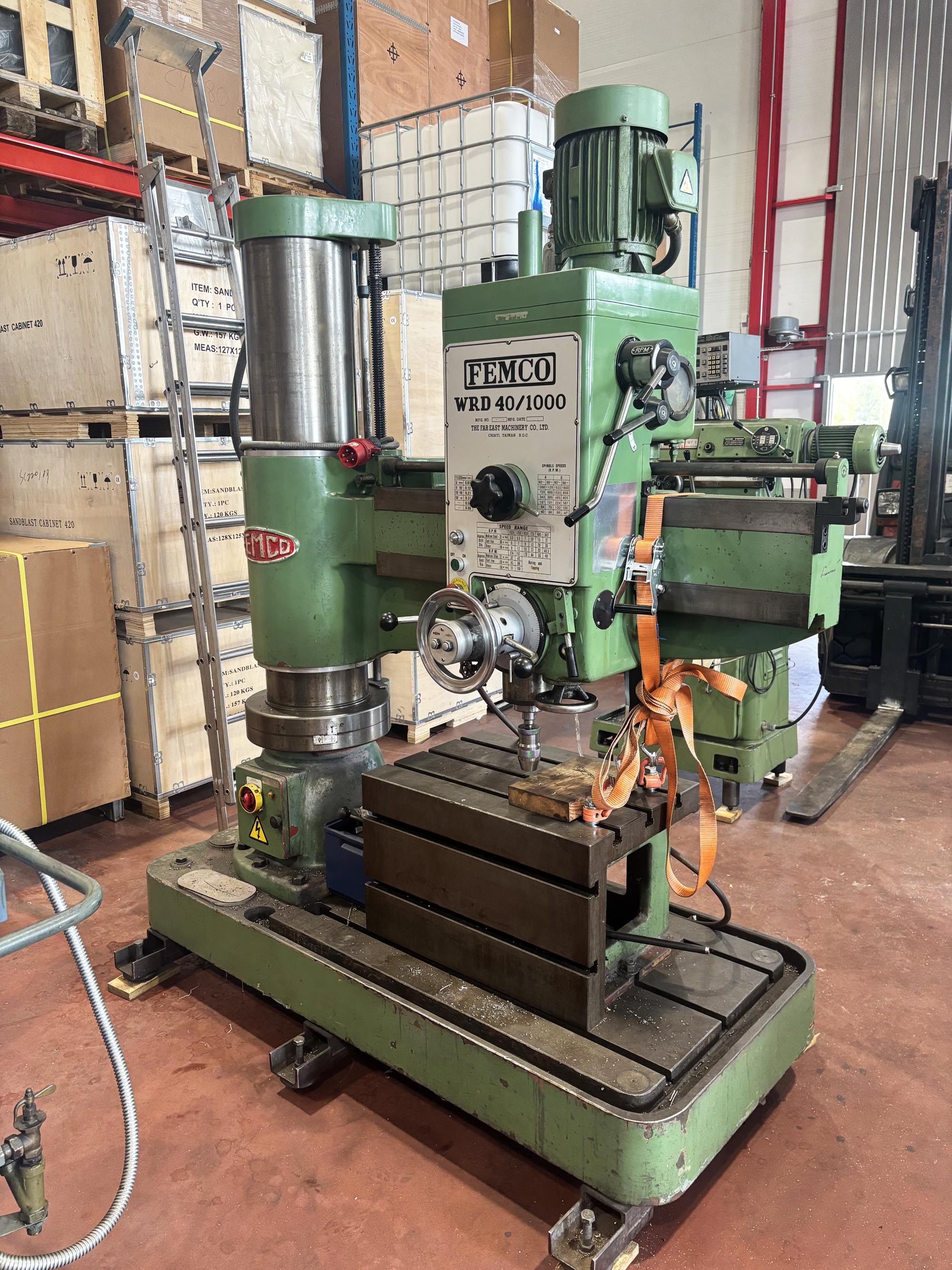

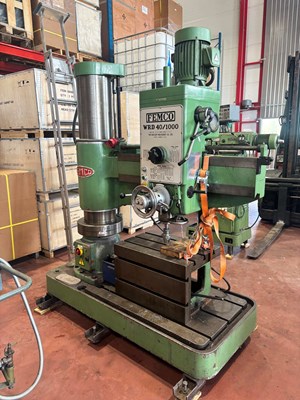

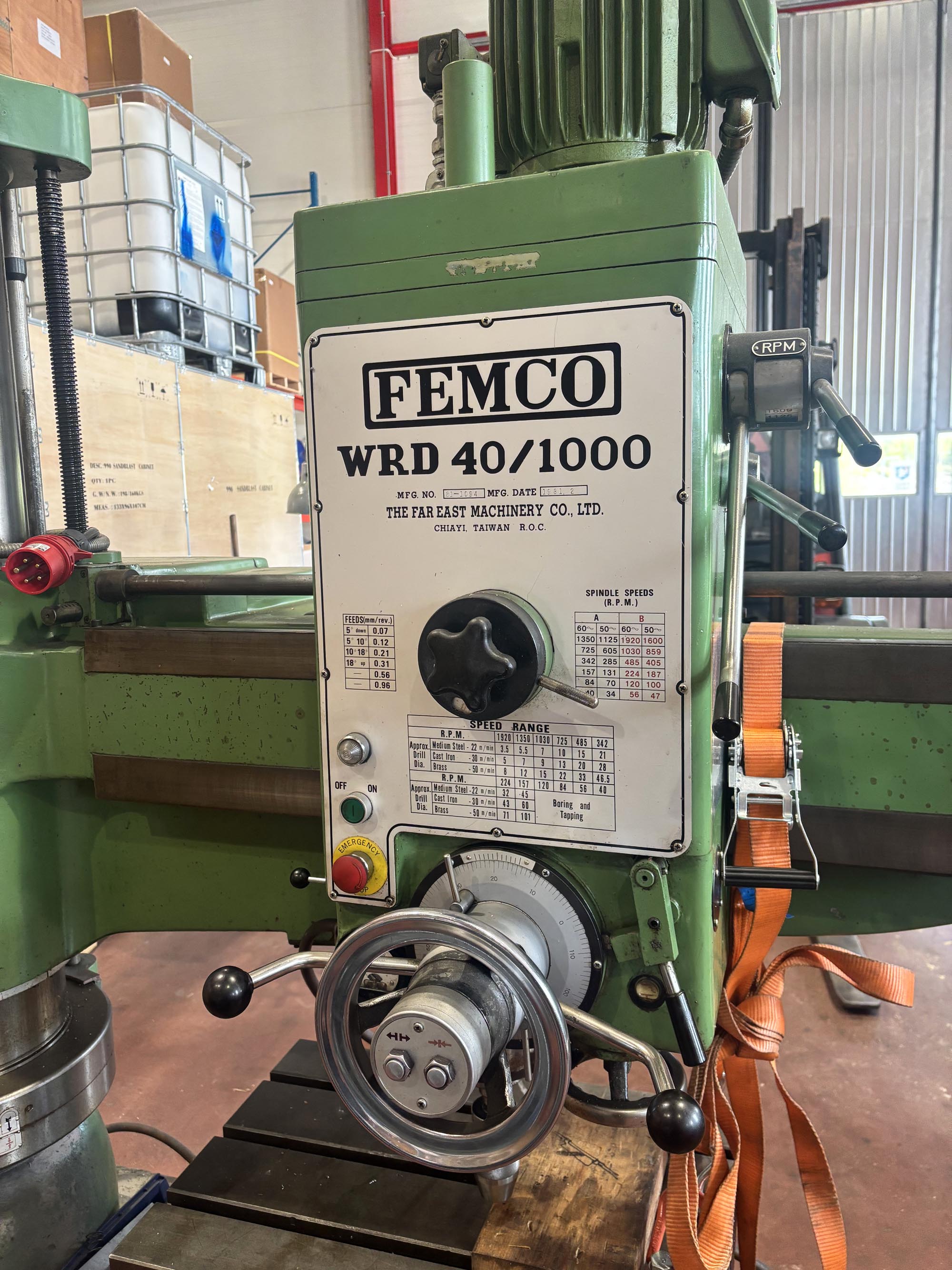

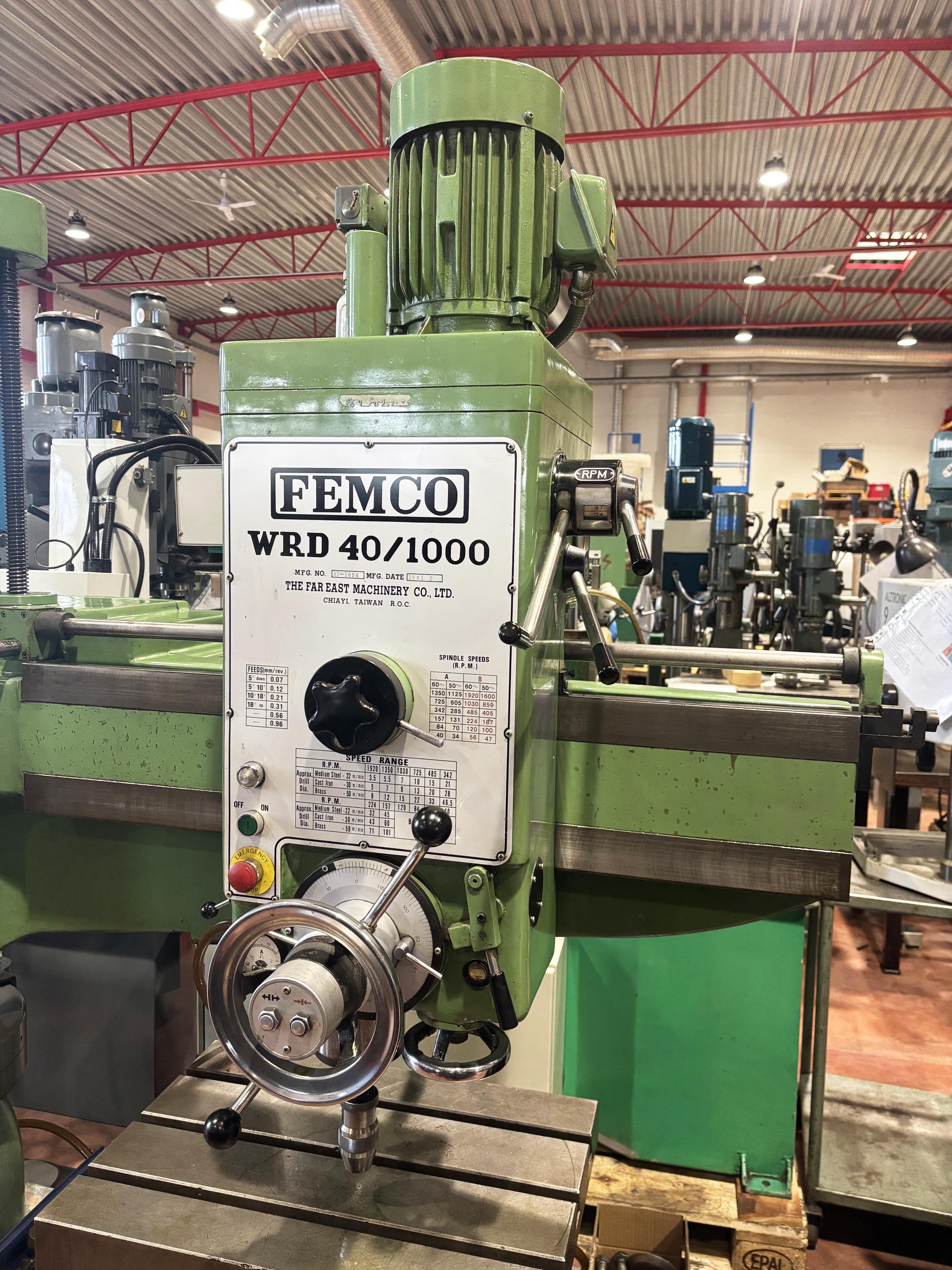

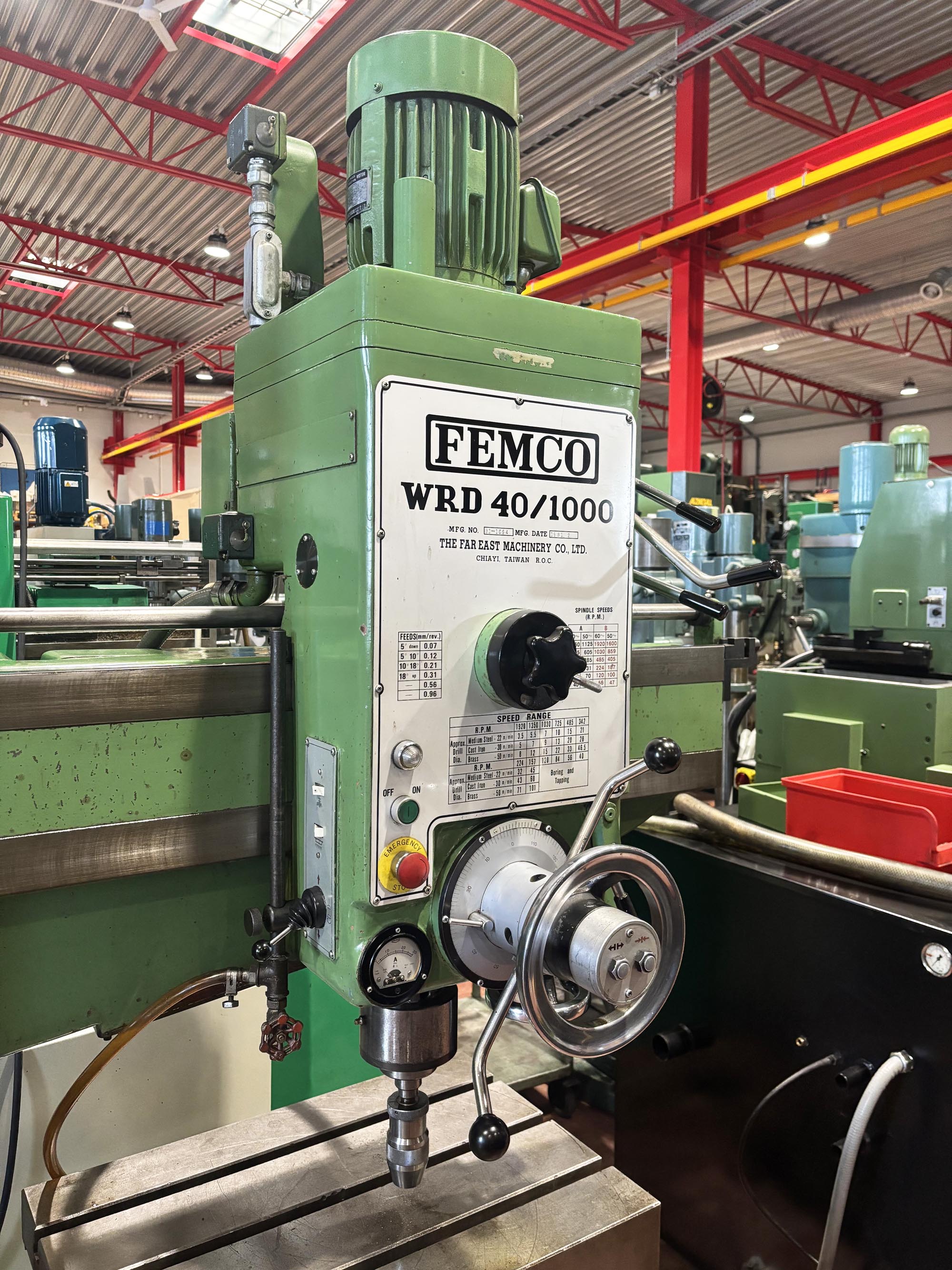

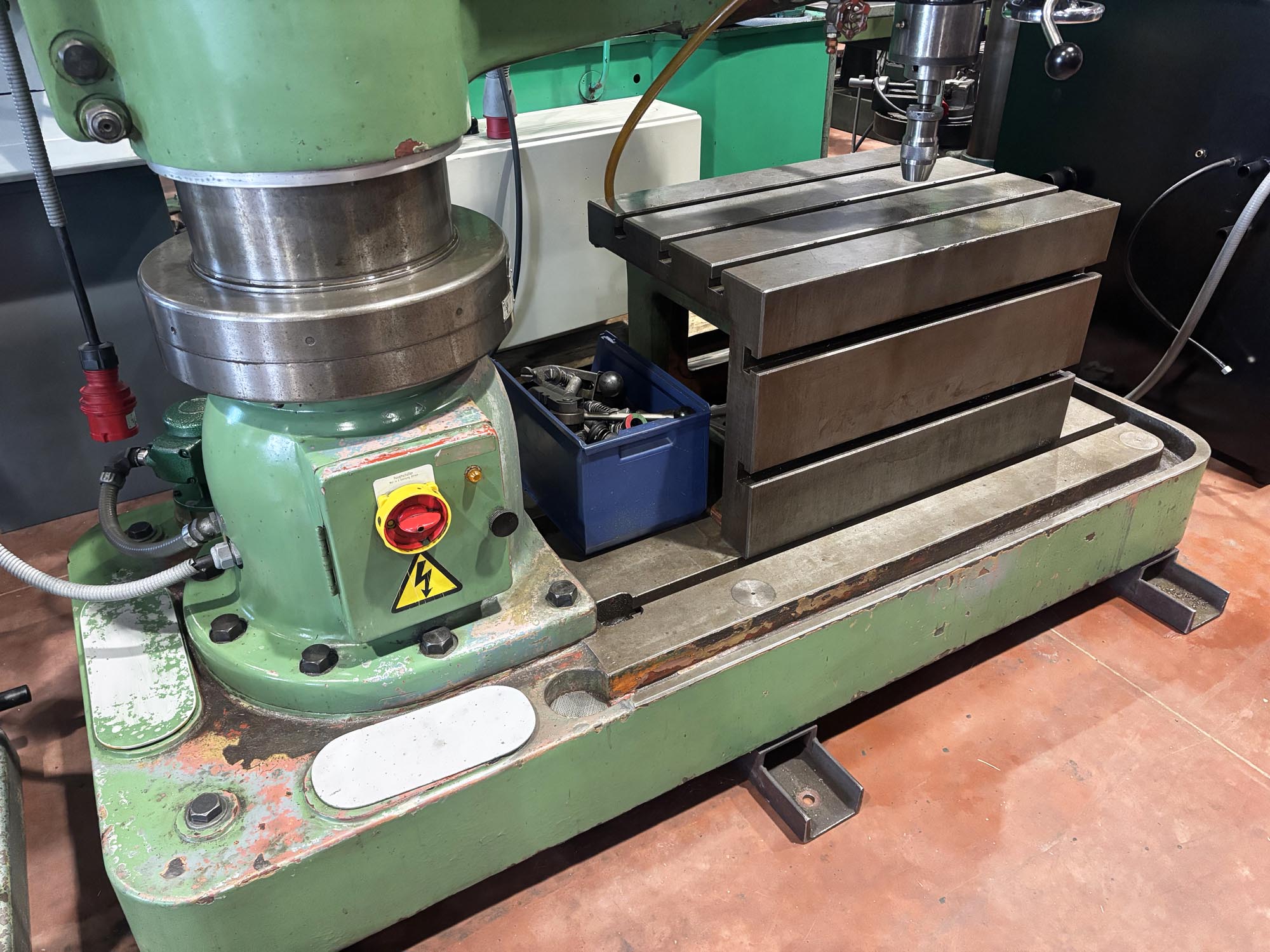

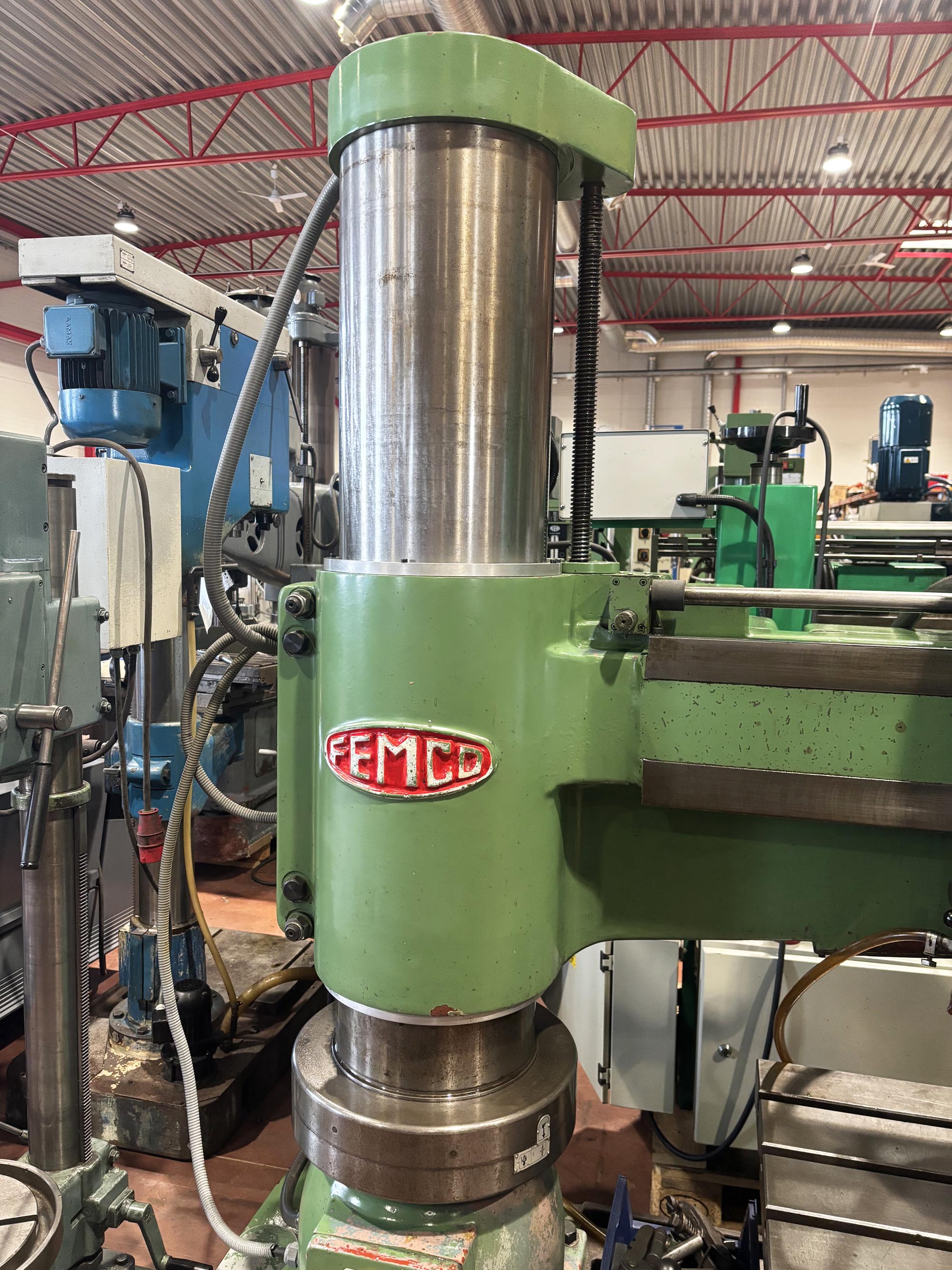

Radial drilling machine Femco WRD 40/1000. Year: 1981.
Without VAT:
Contact us
In Stock
Article Code 05D-00639
PrintMaker | Femco | Weight | ~2100 kg |
Model | WRD 40/1000 | Size | |
Ser. No | 81-1094 | Condition | 6-7/10 |
Year | 1981 | Delivery Code |
Tool accessories
Drill cube 650x400x450 mmSpecification
Min-max throat (column - spindle center): 265-1020 mm
Drill capacity steel: 40 mm
Drill capacity cast iron: 50 mm
Quill stroke: 300 mm
Spindle taper: MT4
Spindle speed: 40-1920 v/min
Automatic quill feed: 0,07-0,96 mm/r
Column diameter: 280 mm
Spindle head travel at arm: 755 mm
Min-Max distance foot base - spindle nose: 205-1100 mm
Drill cube size (LxWxH): 650x400x450 mm
Spindle motor: 2,2 kW
Elevator motor: 1,2 kW
Clamping motor: 0,4 kW
Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
