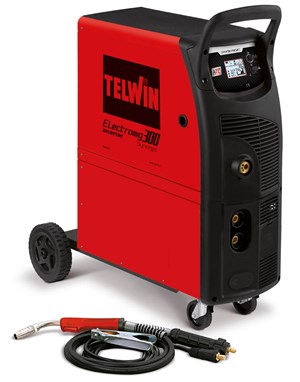

MIG welder (Inverter) Telwin Electromig 300 Synergic

Without VAT:

20500

In Stock

Article Code TW816065

Print
Maker Telwin Weight 37 kg
Model Electromig 300 Synergic Size 0,87 x 0,39 x 0,92 m
Ser. No Condition 10/10
Year Delivery Code

Tool accessories

Complete with MIG-MAG torch MT25 3M cable and earth clamp DX50 3M.

Specification

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine controlled by a microprocessor, with 4-roller
wire feeder. Flexible use with various welded materials (steel, stainless steel, aluminium) or brazed materials (galvanised sheet metal). Wide variety of application fields, from industry to maintenance, installation to bodywork activities. Synergic adjustment makes the product simple to use. The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-theart control of the arc.
Max DC current at 30%. 270 Amp

Connection: 400 V (3-phase)

Absorbed power at 60%/MAX: 6,5/9 kW

Fuse: 16 Amp

Current range: 20-300 A

Max DC current at 60%: 205 Amp

Max wire steel: Ø0,6-1,2 mm

Max wire (SS, AL, FX, BZ): 0,8-1,2 mm

MMA electrode Ø (MMA/TIG): 1,6-6 mm

Size LxWxH: 865x390x915 mm

Weight: 37 kg

Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
