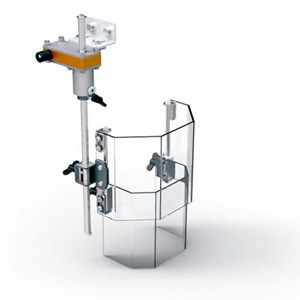

Telescopic safety guard for drill Tecno Piu PTR05/180

Without VAT:

3263

Not in stock

Article Code PTR-05-180

Maker	Tecno Piu	Weight	3,7 kg
Model	PTR05/180	Size
Ser. No		Condition	10/10
Year		Delivery Code

Specification

Protects the operator from direct frontal contact with rotating components of the spindle, of the tool and from projection of shavings and lubricant-coolant. The main feature is the telescopic shield, vertically adjustable (refer to dimensions "B" and "C") and positionable along arm 3. The shield opens laterally with 180° rotary movement, allowing easy access for operations of tool change. The stirrup allows a solid anchorage at the drill structure. Complete with pre-wired safety microswitch.

View field (AxB): 172x180-300 mm

Deep (C): 115 mm

Weight: 3,7 kg

Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
