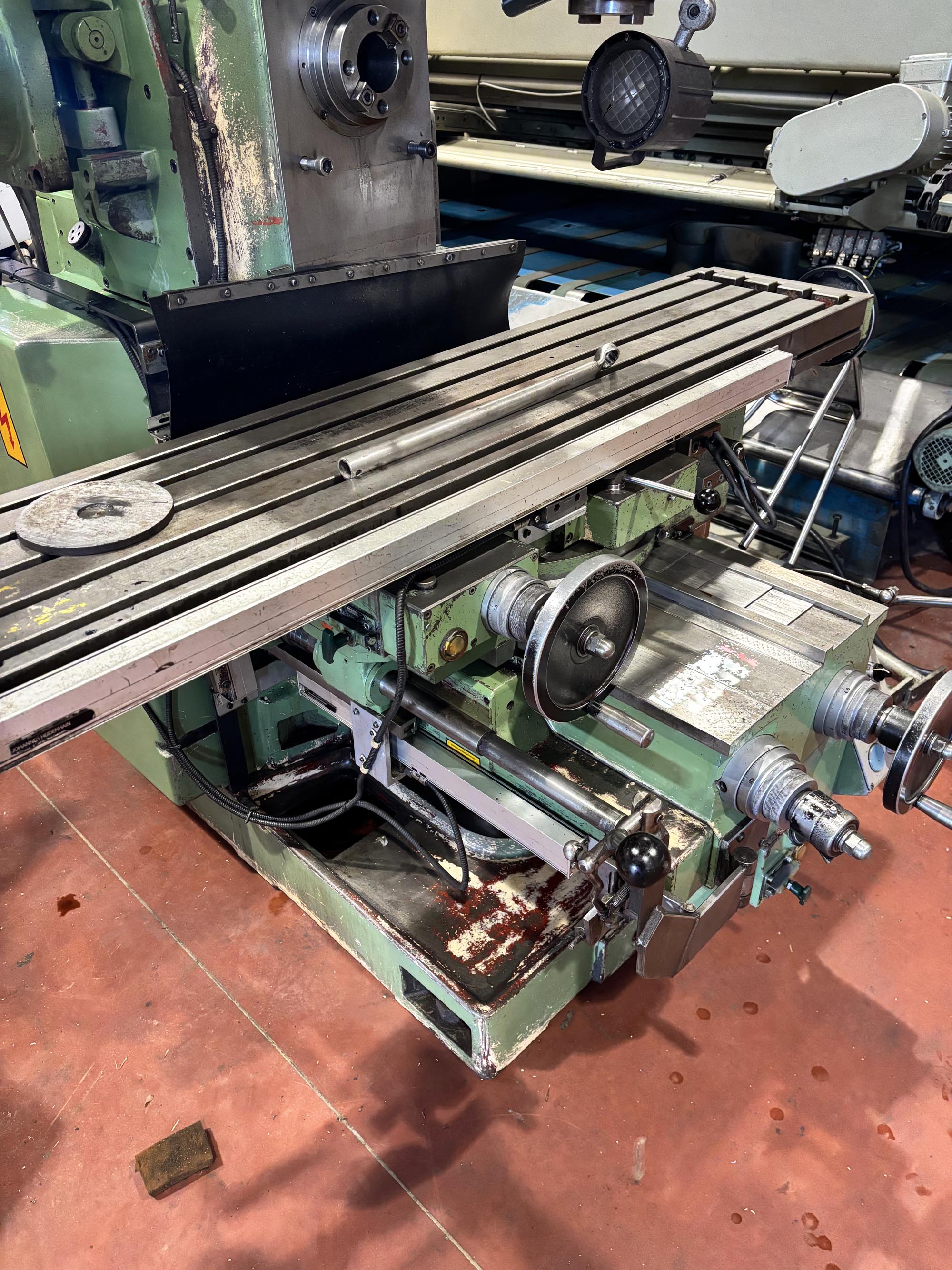

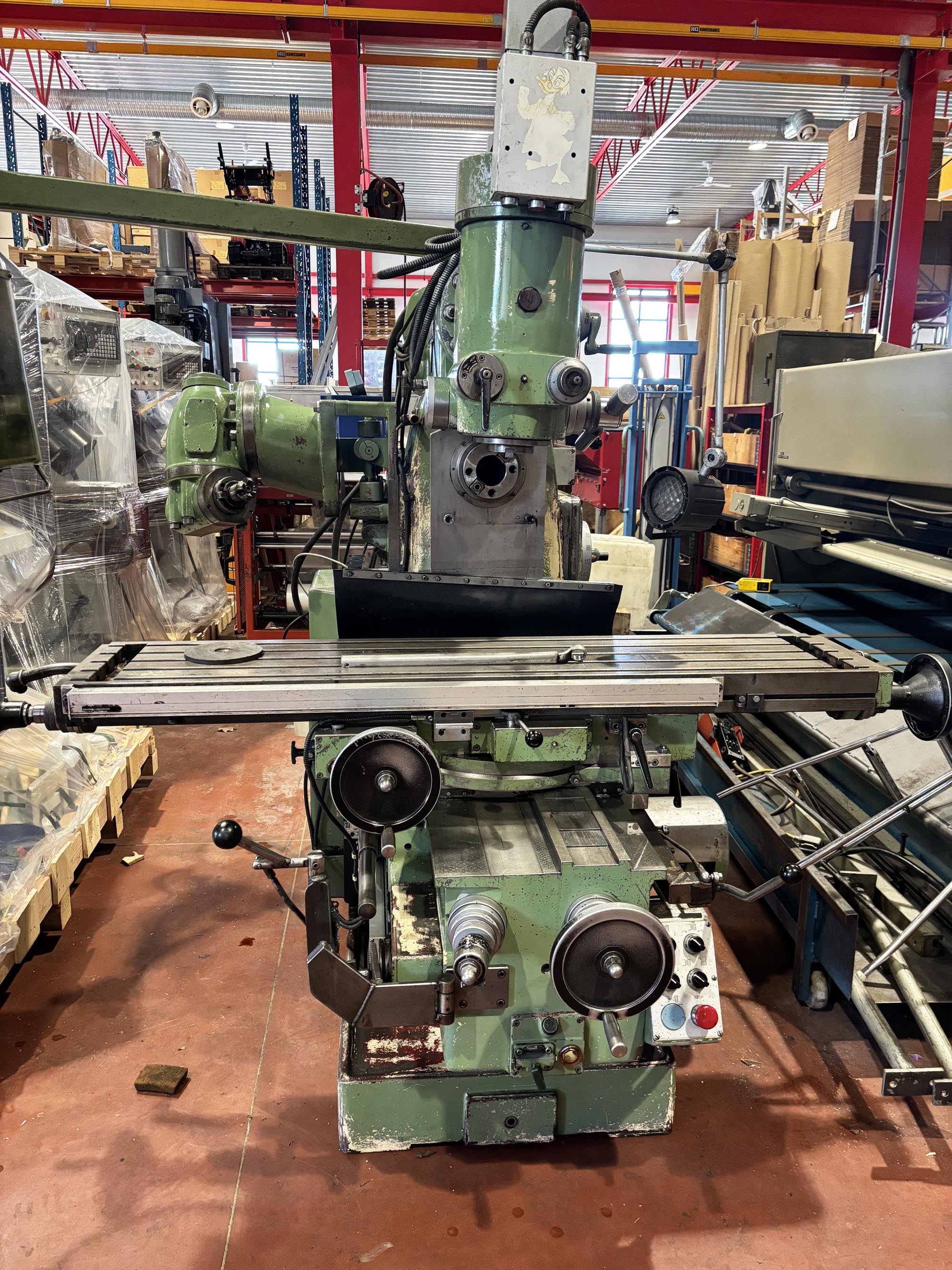

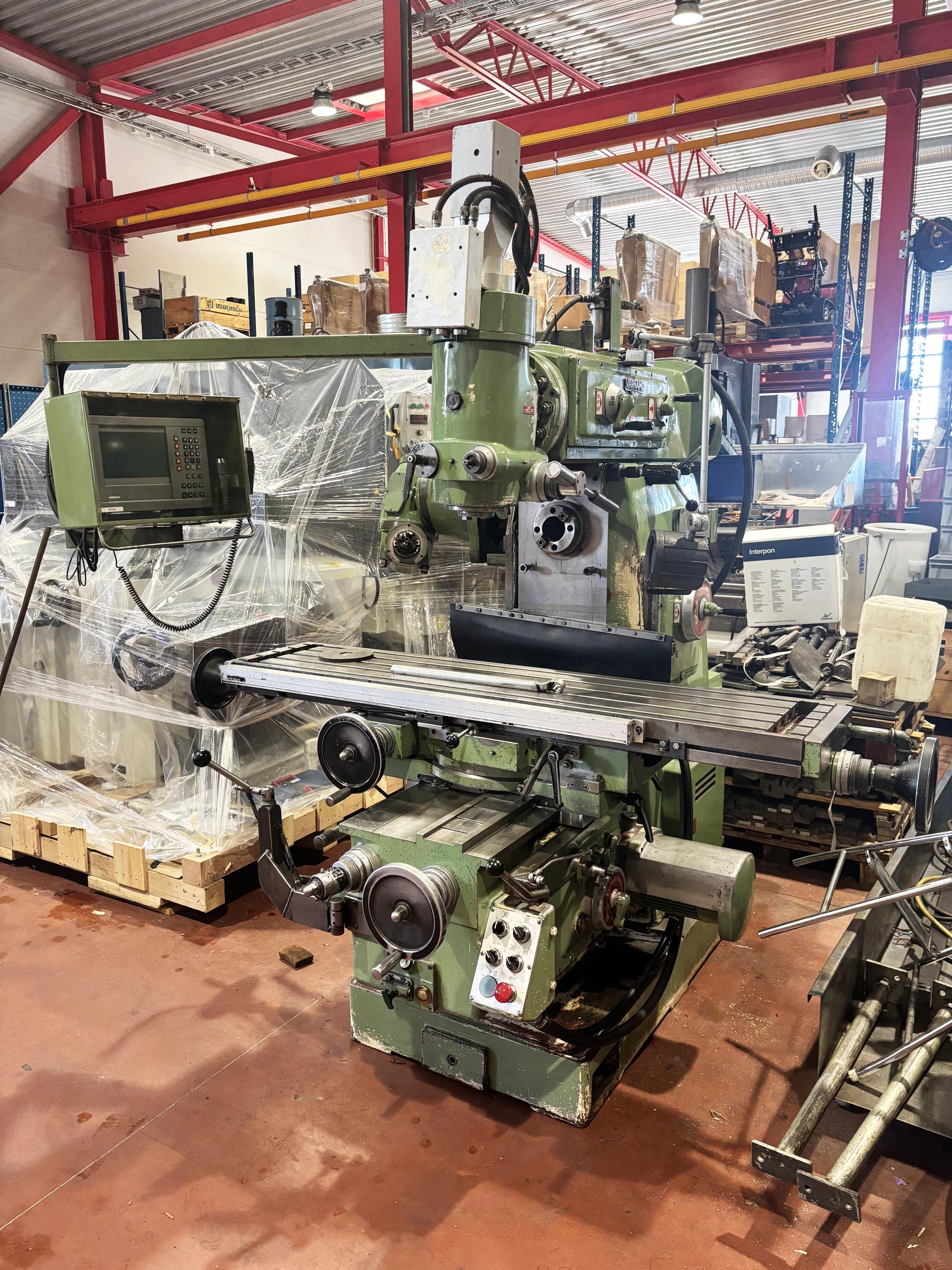

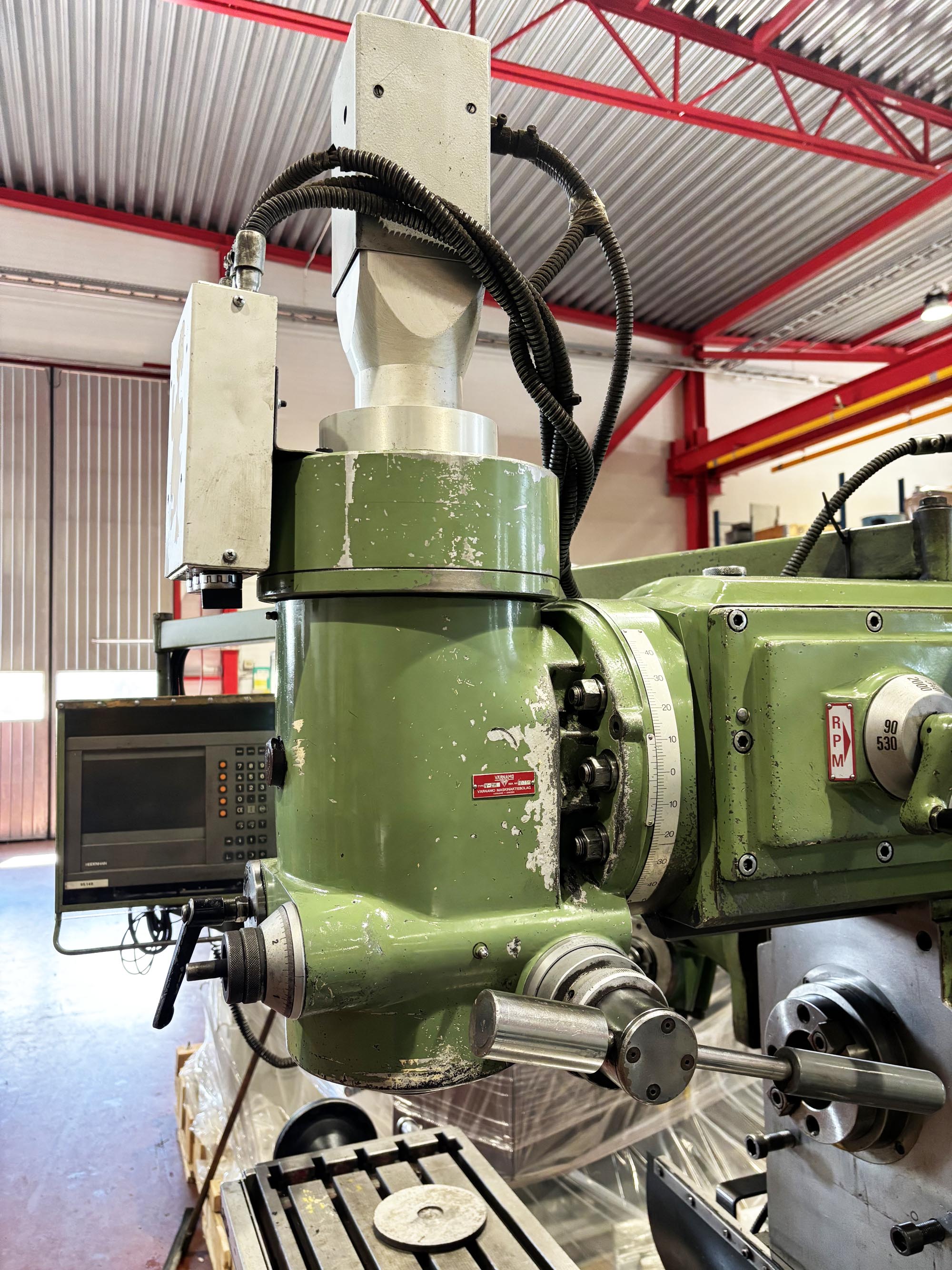

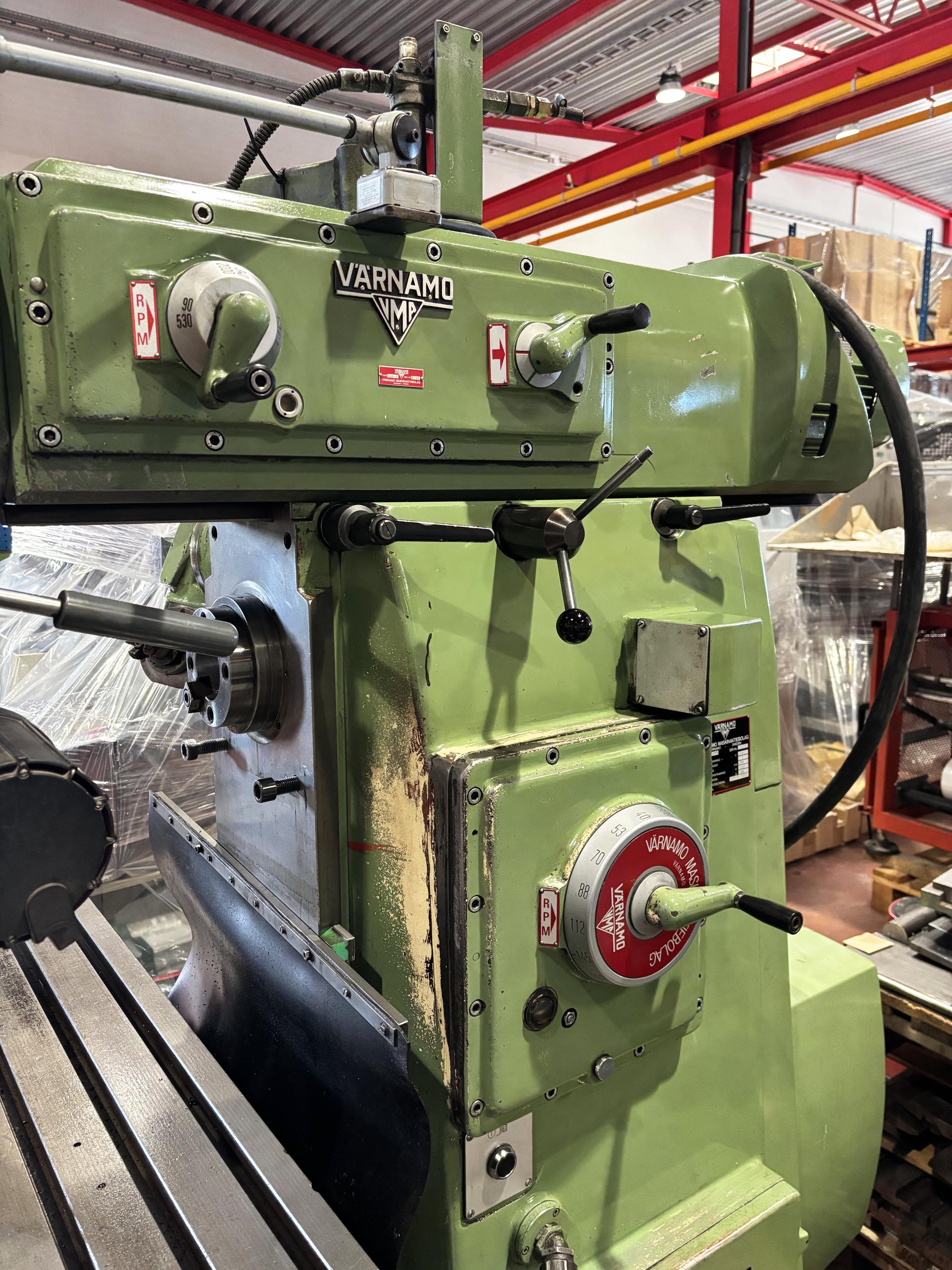

Milling machine VMA U3MM with drilling quill & readout
Without VAT:
Contact us
In Stock
Article Code 15A-00836
PrintMaker | VMA | Weight | 3400 kg |
Model | U3MM | Size | |
Ser. No | 5820 | Condition | 5-6/10 |
Year | Delivery Code |
Tool accessories

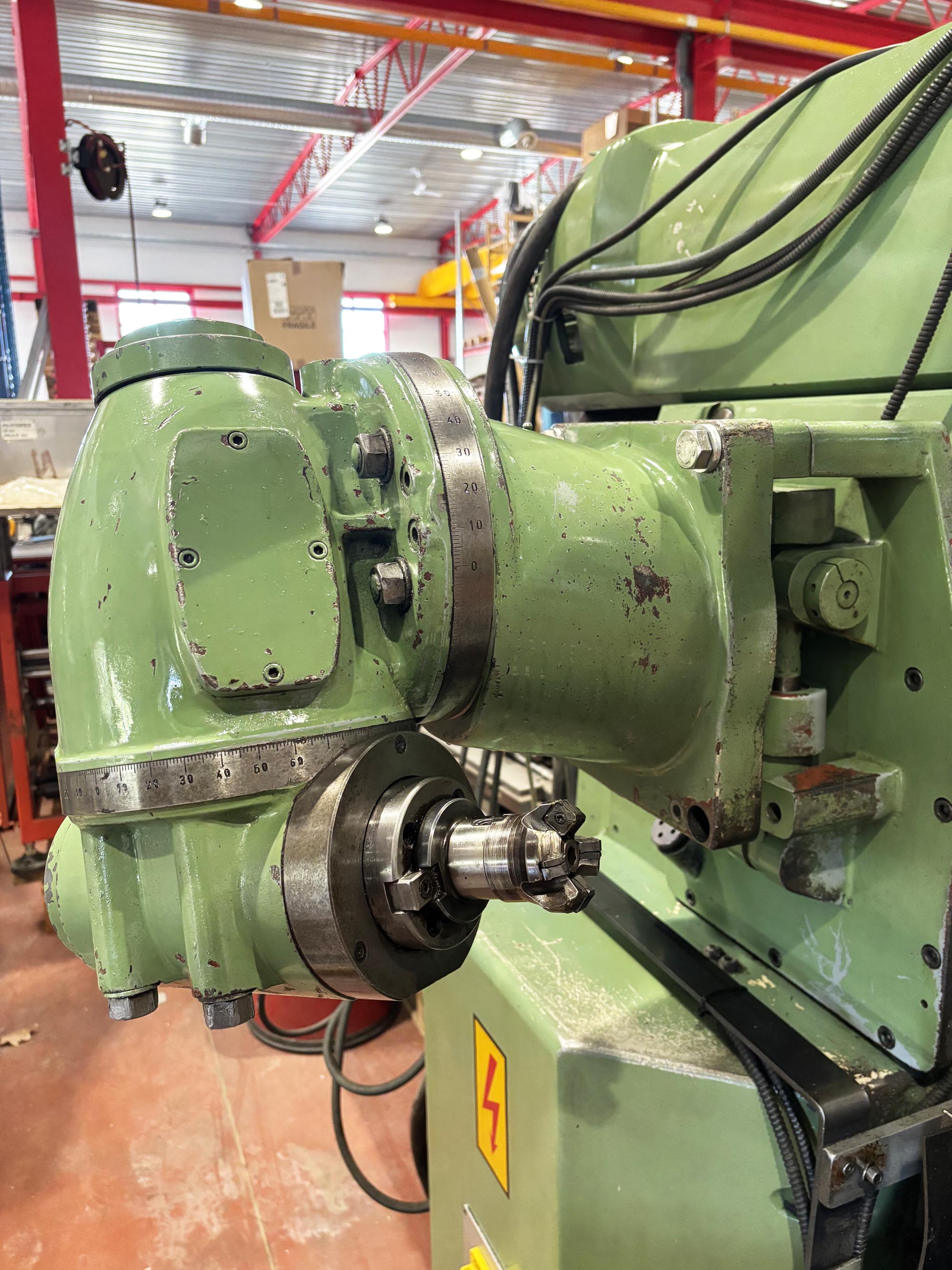

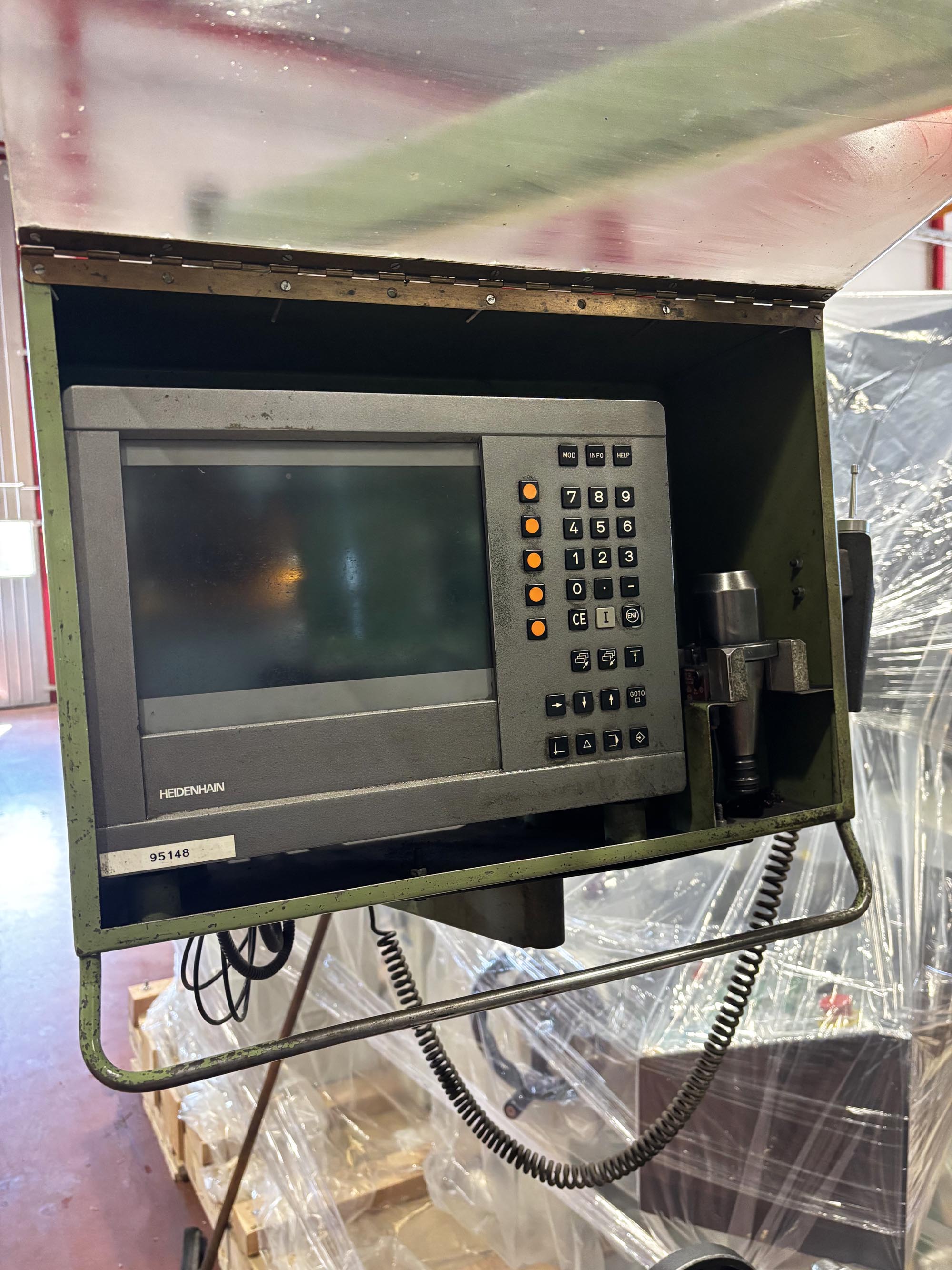

3-axis digital readout Heidenhain automatic tool clamping extra spindle head (rotatable in 2-ways) lamp.Specification
Table size: 1625x350 mm
Work travel: X1125, Y355, Z450 mm
Feed rate: 15-1100 mm/min (18 pcs)
Spindle speed (vertical): 90-2000 rpm
Spindle speed (hor.): 40-1800 rpm
Spindle taper (vert.): ISO40
Spindle taper (hor.): ISO50
Quill stroke: 100 mm
Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
