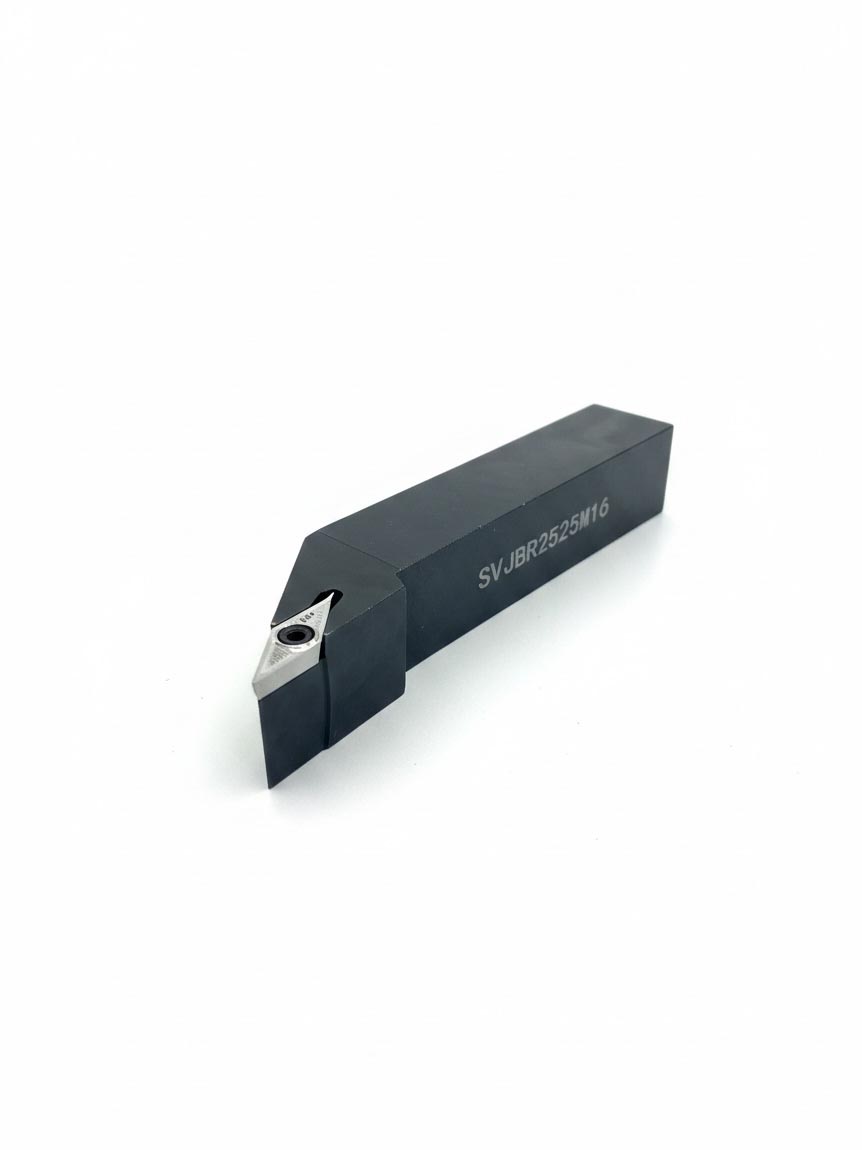

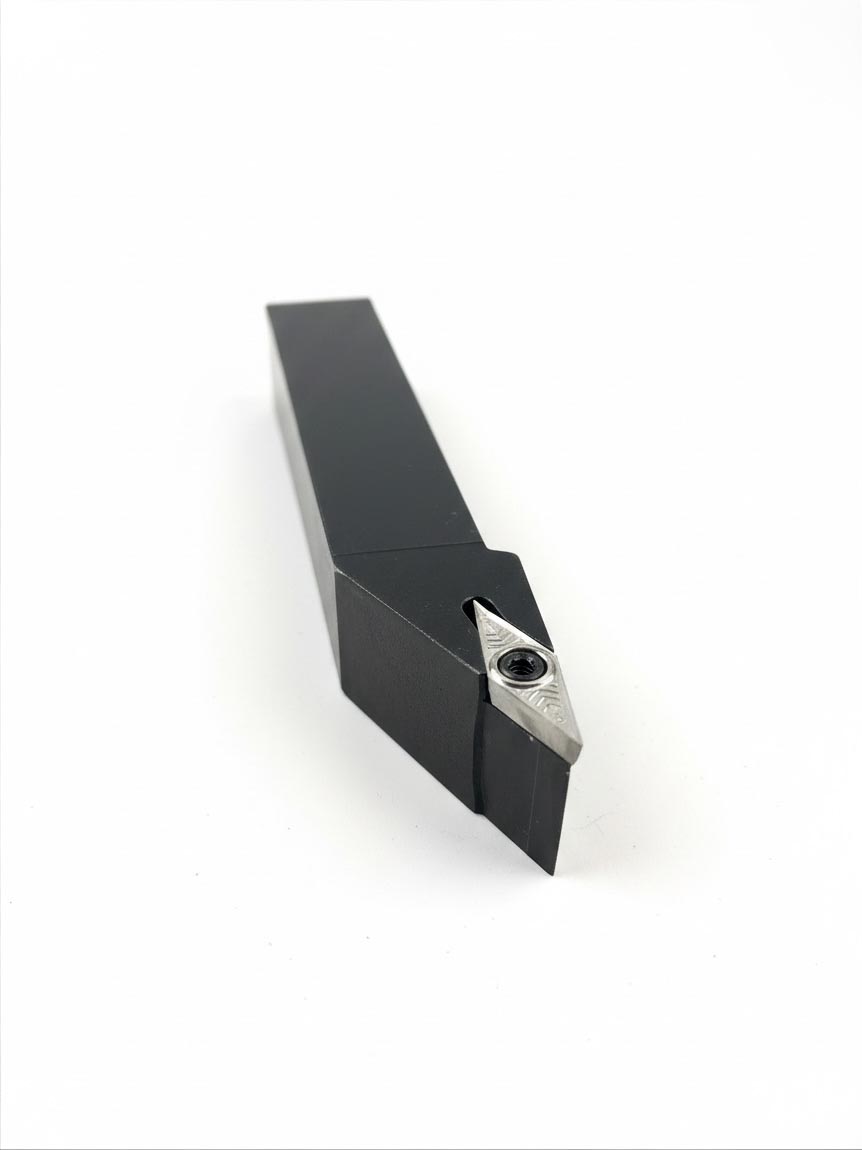

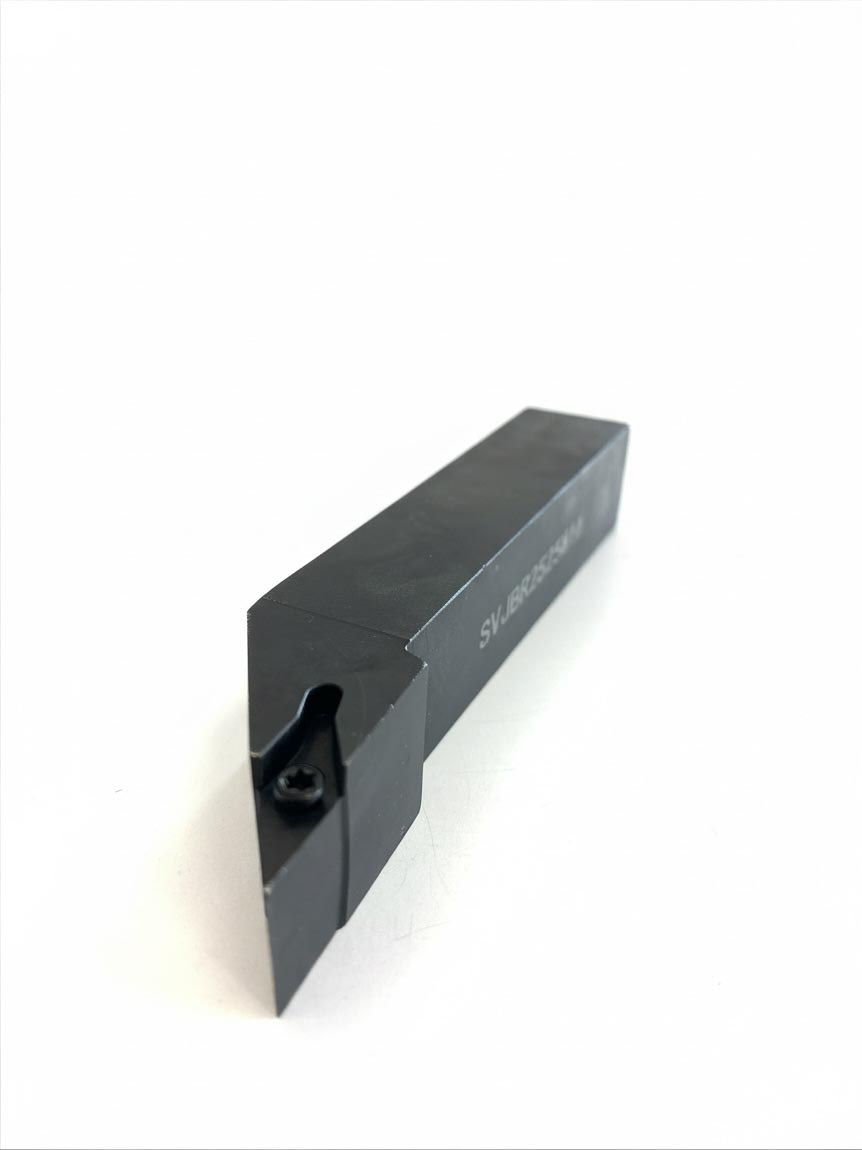

Tool holder SVJBR 2525 M16

Specification

SVJBR 2525M16 is a turning tool with a rhombic indexable insert with a 35° tip angle and the tool's cutting edge angle is 93°. Very useful turning tool for finishing to medium roughing of all types of materials depending on the choice of turning insert. For cutting for example steel we recommend VBMT1604XX and for softer materials such as aluminum, plastic, cast iron we recommend VCGT1604XX. INSERT NOT INCLUDED.

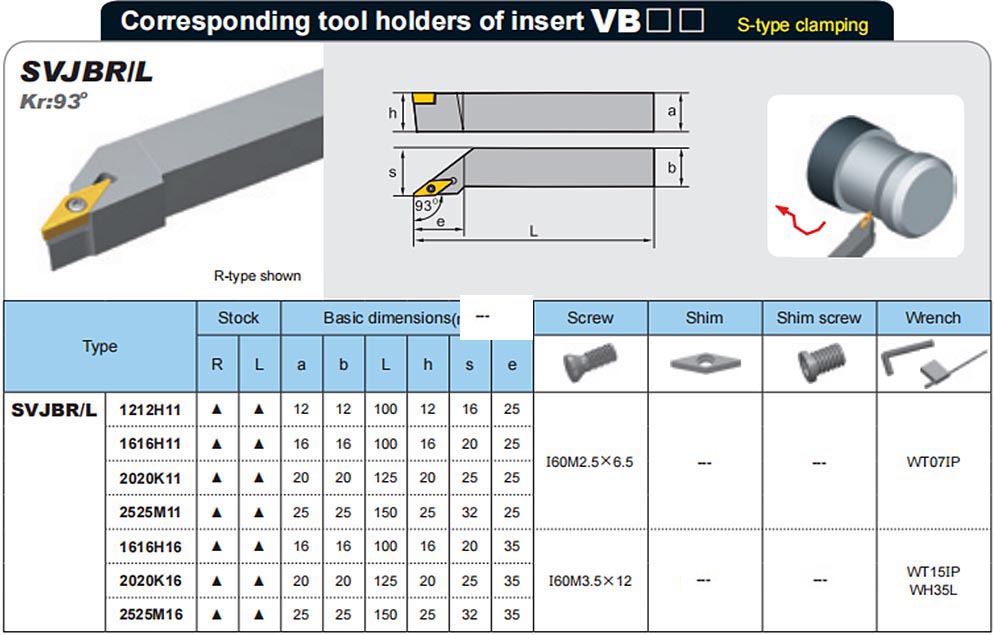

Shank height (A): 25 mm

Shaft width (B): 25 mm

Shaft length: 115 mm

Total length (L): 150 mm

Cutting edge angle: 93°

Functional height (h): 25 mm

Functional width (S): 32 mm

Insert type: VB/VC

Version: Right
