Tool holders SVJBR 2020 K16

Specification

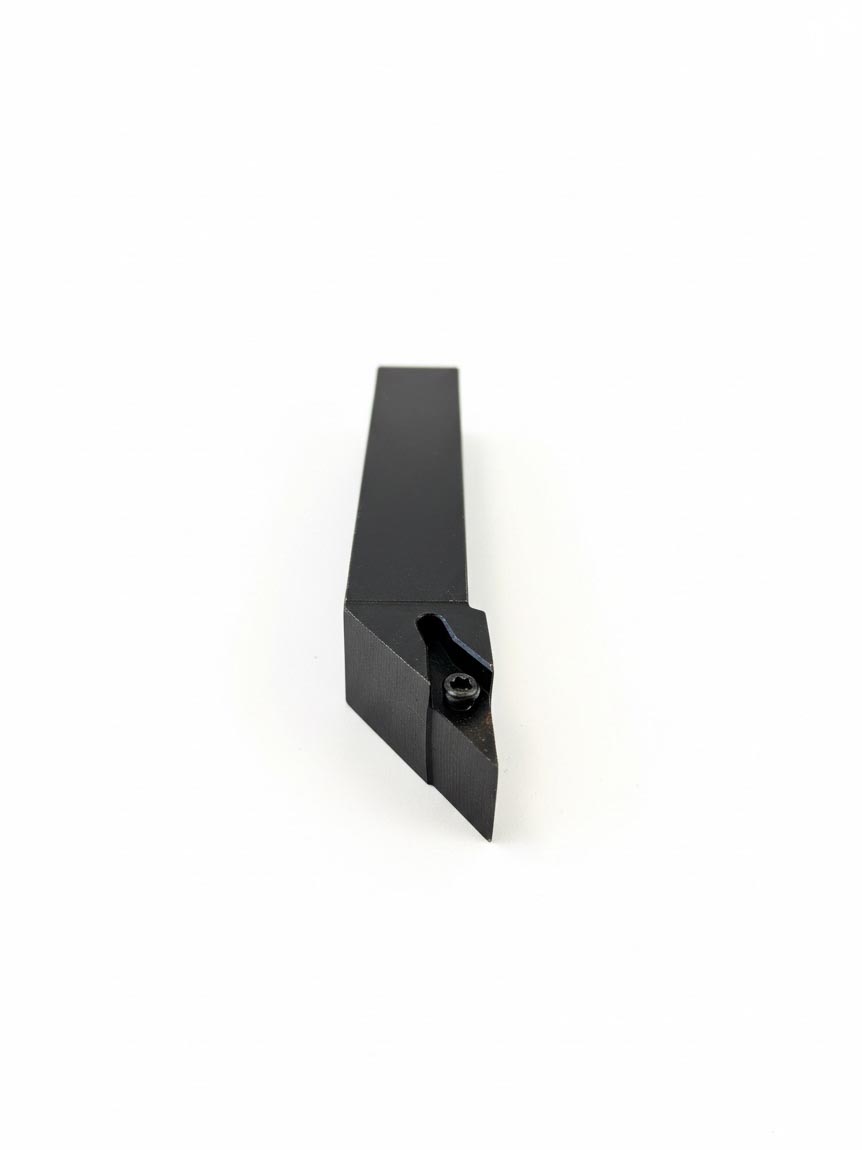

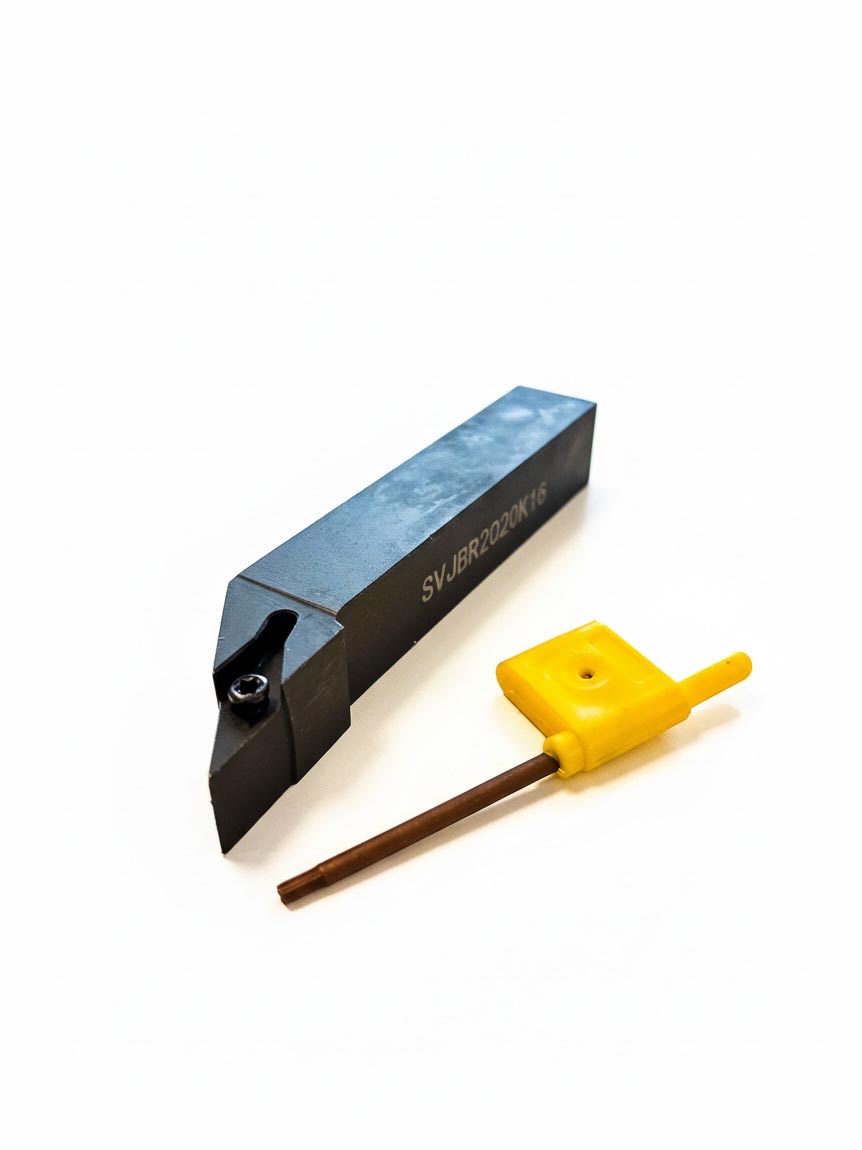

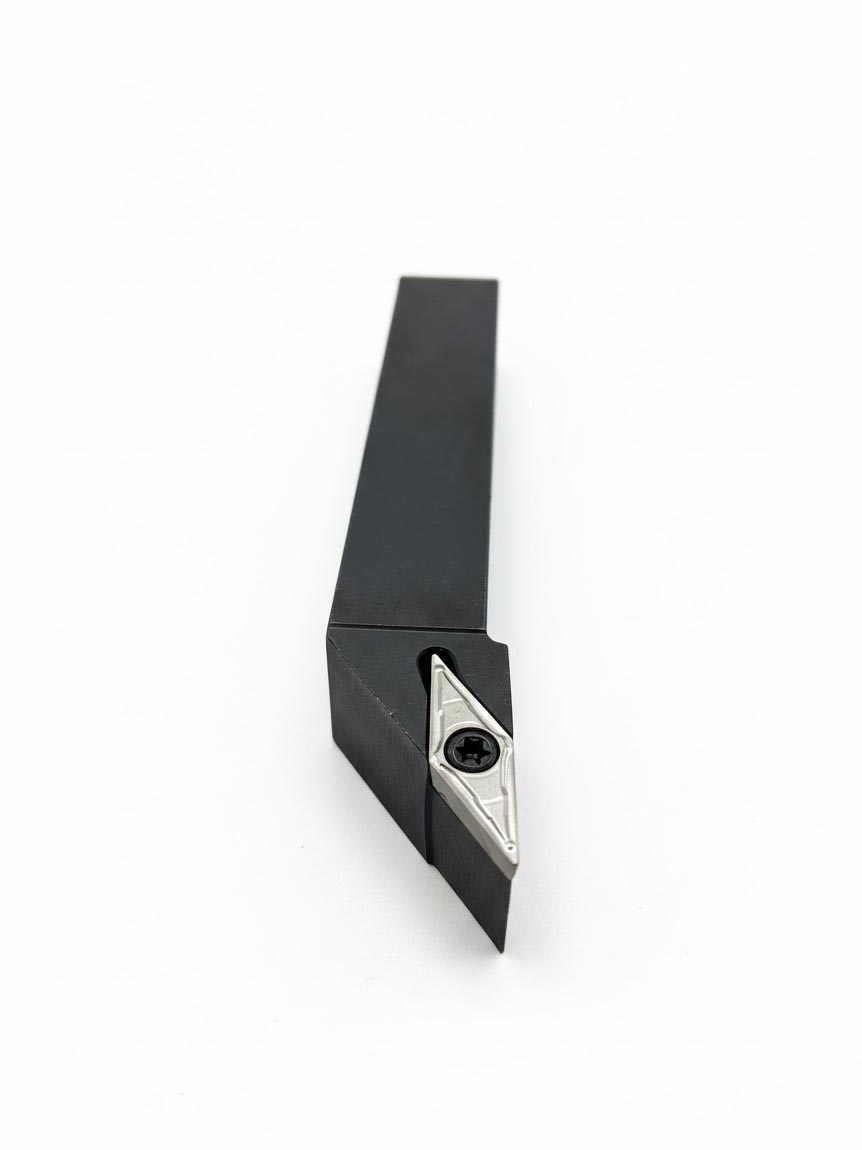

SVJBR 2020 K16 is a turning tool with a rhombic indexable insert with a 35° tip angle and the tool's cutting edge angle is 93°. Very useful turning tool for finishing to medium roughing of all types of materials depending on the choice of turning insert. For cutting for example steel we recommend VBMT1604XX and for softer materials such as aluminum, plastic, cast iron we recommend VCGT1604XX. INSERT NOT INCLUDED.

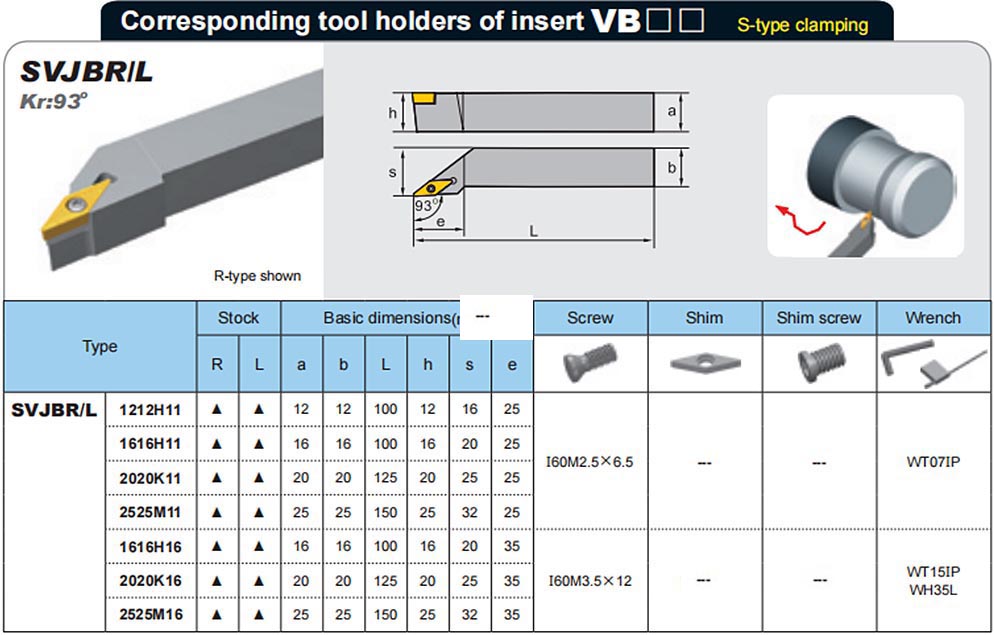

Shank height (A): 20 mm

Shaft width (B): 20 mm

Shaft length: 105 mm

Total length (L): 125 mm

Cutting edge angle: 93°

Functional height (h): 20 mm

Functional width (S): 35 mm

Insert type: VB/VC

Version: Right
