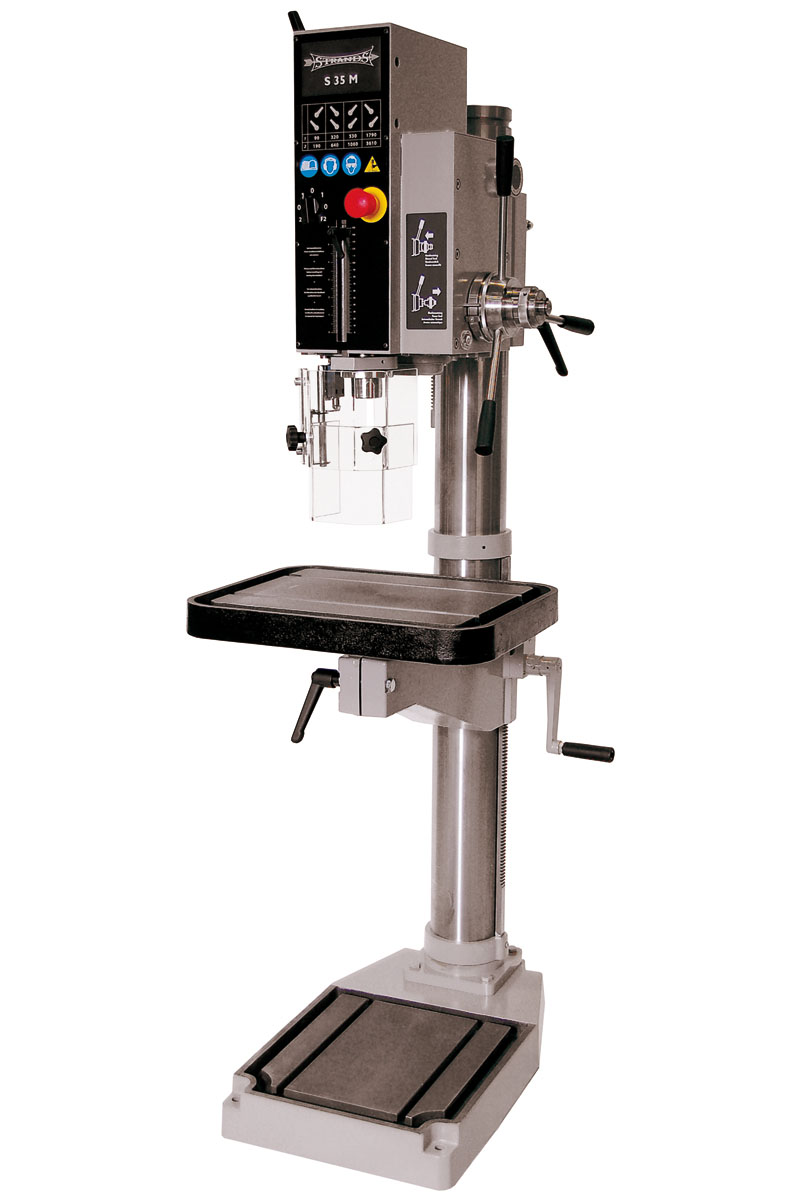

Column drill press Strands S35M with quill feed

Without VAT:

44847

In Stock

Article Code S3500M

Print
Maker Strands Weight 290 kg
Model S35M Size
Ser. No Condition 10/10
Year Delivery Code

Tool accessories

Drill guard with micro switch is standard within the CE-area

Specification

STRANDS S35 has a drilling capacity of 35mm. The gear box is built according to a experienced methods for highest possible torque. Both the drill head and the table arm are adjustable 360° around the column and can be raised and lowered. S35 is standard-equipped with a hand-reversing switch.

STRANDS S35M: When the set drill depth is reached, the spindle will automatically return to the starting point. The feed can also be interrupted manually. The feed gear box is provided with an automatic overload protection device, which intervenes, when the drill pressure is too high.

Drilling capacity: Ø35 mm

Quill movement: 150 mm

Tapping capacity (steel/cast iron): M18/M22

Morse taper: MT4

Motor power (50 Hz): 1,4 kW/2,0 kW

Spindle speed: 75-3010 rpm (8 pcs)

Feed speed: 0,1-0,15-0,22-0,3 mm/r

Table size: 500x400 mm

Denna info är upprättad efter bästa förmåga - men är inte bindande i detalj. Samtliga priser är exklusive moms med reservation för pris-/valutaförändringar.
